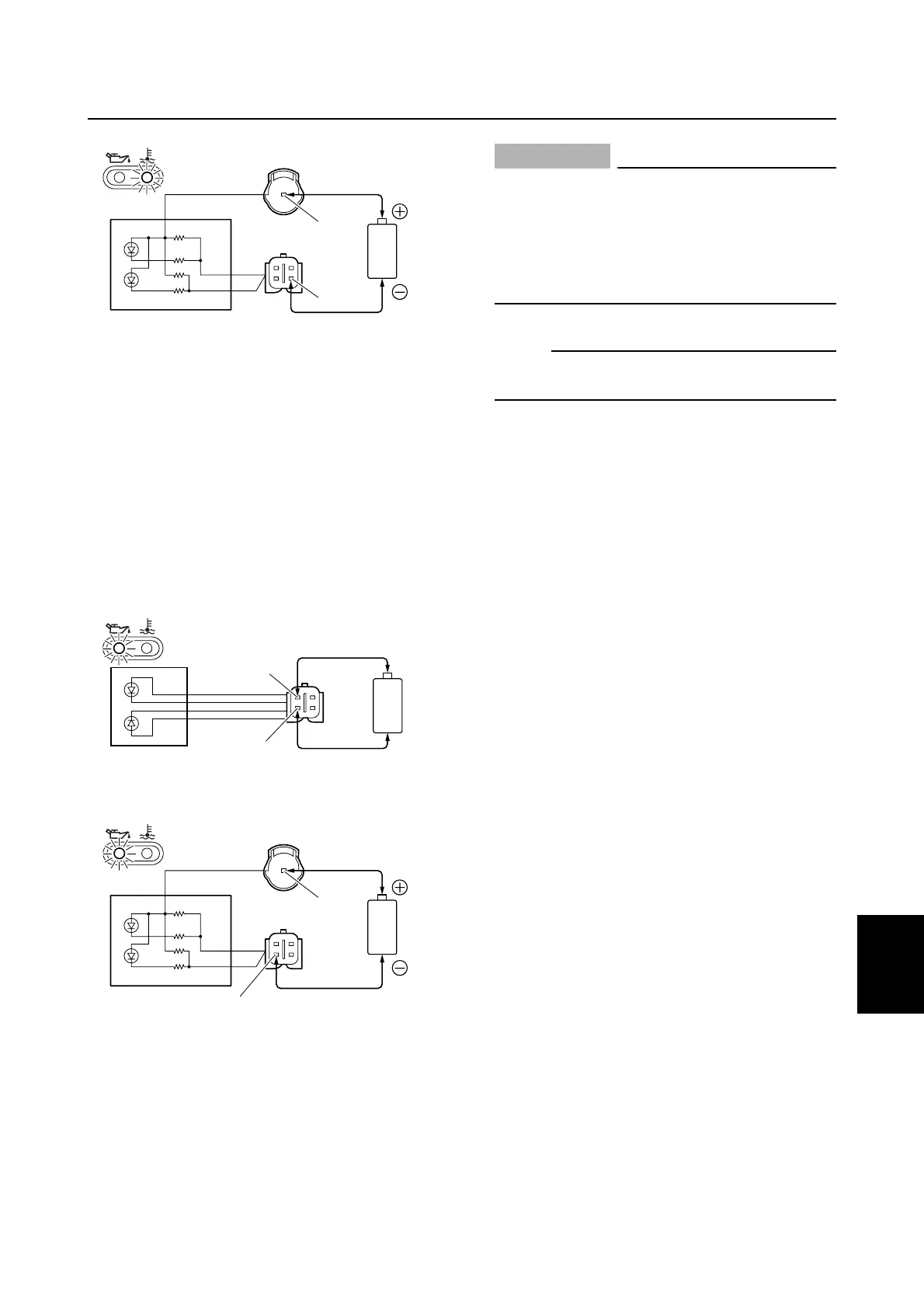

10. Connect the yellow/red (Y/R) lead (M
model) or yellow (Y) lead (E and W
model) to the positive penlight battery
terminal (1.5 V) and connect the
pink/white (P/W) lead to the negative ter-
minal, and then check that the oil pres-
sure warning indicator comes on.
Replace the warning indicator assembly
if it does not come on.
È M model
É E and W model
CAUTION:
• Only use a penlight battery (1.5 V) when
checking the LEDs. Other batteries (e.g.,
alkaline batteries or high-voltage batter-
ies) will damage the diodes.
• Do not apply more than 1.7 V to the
leads when checking the LEDs.
NOTE:
A feature of LEDs is that they only allow cur-
rent to flow in one direction.
S67C8073
P/B
Y
É
S67C8077
+
-
P/W
Y/R
È
S67C8075
P/W
Y
É
