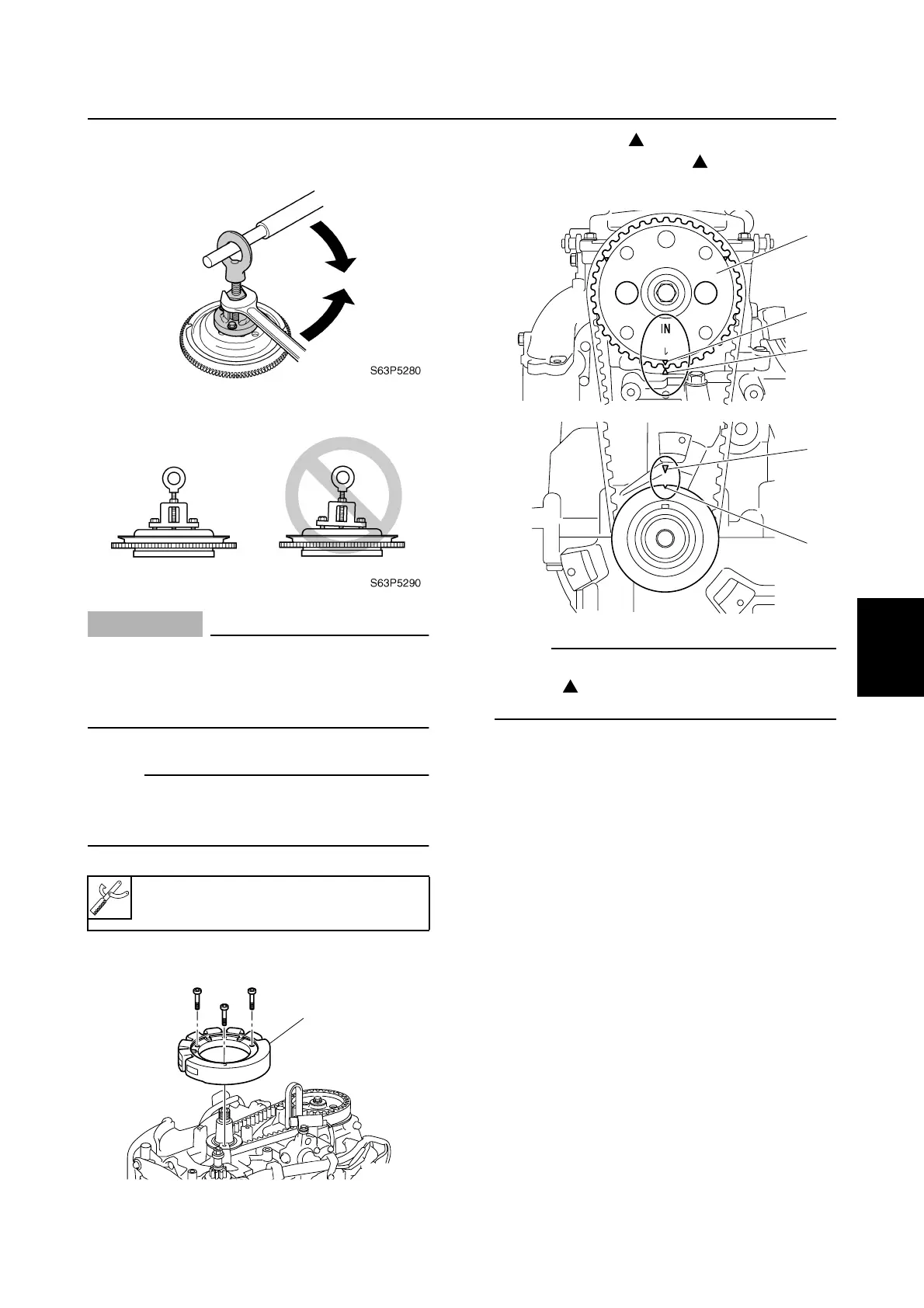

4. Remove the flywheel magnet, Woodruff
key and spring washer.
CAUTION:
To prevent damage to the engine or tools,
screw in the puller set bolts evenly and
completely so that the flywheel puller is
parallel to the flywheel magnet.
NOTE:
Apply force to the crankshaft end until the fly-
wheel magnet comes off the tapered portion
of the crankshaft.
5. Remove the stator assembly 1.
6. Align the “1 ” mark a on the driven
sprocket 2 with the “” mark b on the
cylinder head.
NOTE:
Check that the notch c in the drive sprocket
and the “” mark d on the cylinder block are
aligned.
Flywheel puller: 90890-06521
S67C5016
1
S67C5017
2
a
b
S67C5018
d
c
