Figure 4
Figure 5
Figure 3
Figure 2
Figure 1
W
W1
4-M5 Tap
H
H1
B
A
4-M6 Tap
W
W1
H
H1
B
A
W
W1
H
H1
B
A
4-M8 Tap
H5
H4
H2
H3
W
W1
H
H1
B
A
4-M10 Tap
H5
H4
H2
H3
W
W1
H
H1
B
A
4-M12 Tap
H5
H4
H2
H3

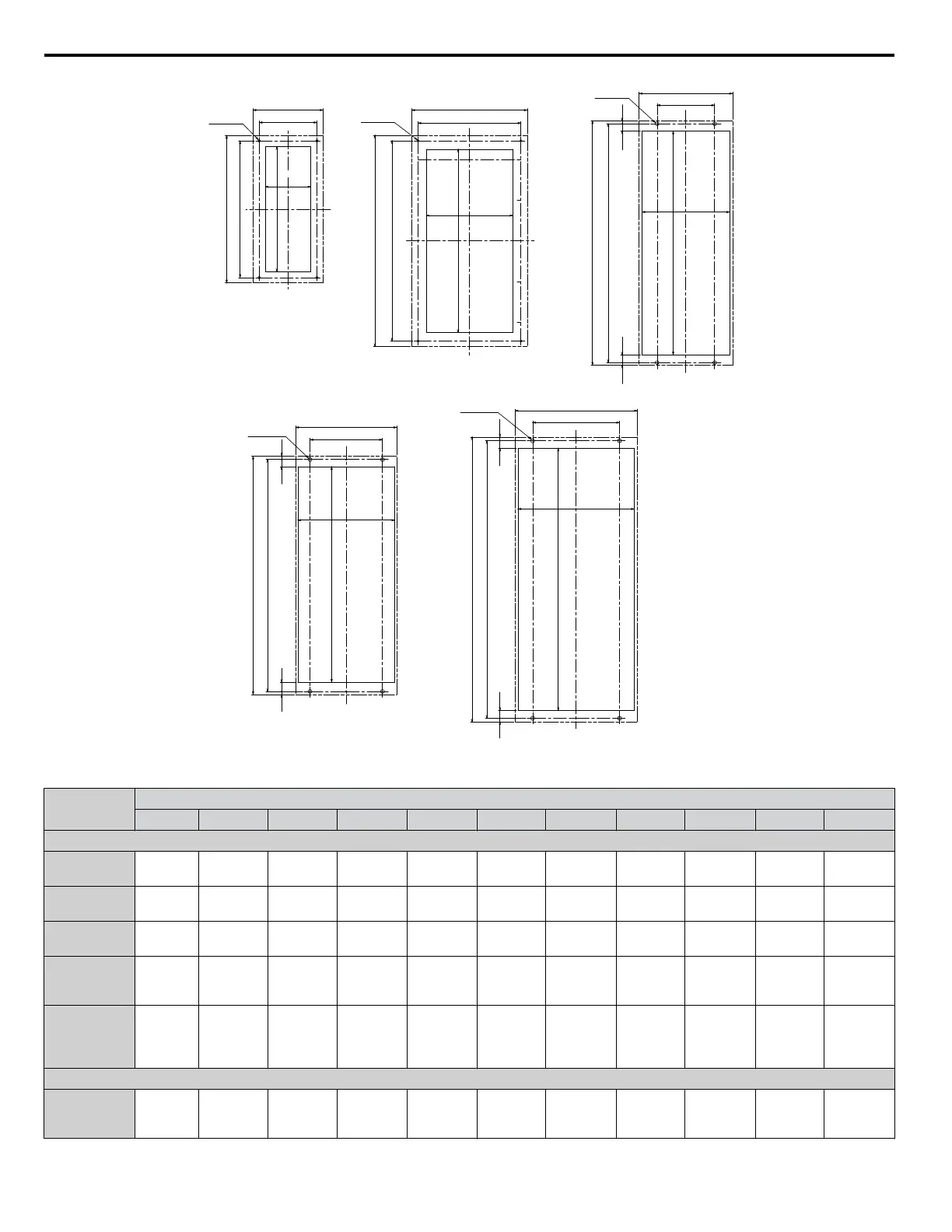

Table 6.6 IP20 NEMA 1, UL Type 1 Panel Cut-Out Dimensions
Model
Dimensions mm (in)
Figure W H W1 H1 H2 H3 H4 H5 A B
Three-Phase 200 V Class
2A0011
2A0017
1 170 (6.69) 375 (14.76) 150 (5.91) 355 (13.98 ) – – – – 118 (4.65) 324 (12.76)
2A0024
2A0031
1 170 (6.69) 465 (18.31) 150 (5.91) 445 (17.52) – – – – 118 (4.65) 414 (16.30)
2A0046
2A0059
2 200 (7.87) 533 (20.98) 130 (5.12) 520 (20.47) – – – – 194 (7.64) 473 (18.62)
2A0075
2A0088
2A0114
2 305 (12.01) 570 (22.44) 285 (11.22) 555 (21.85) – – – – 239 (9.41) 508 (20.00)
2A0143
2A0169
2A0211
2A0273
4 340 (13.39) 803 (31.61) 244 (9.61) 781 (30.75) 24.2 (0.95) 11.5 (0.45) 30.8 (1.21) 10.5 (0.41) 326 (12.83) 726 (28.58)
Three-Phase 400 V Class
4A0005
4A0008
4A0011
1 170 (6.69) 375 (14.76) 150 (5.91) 355 (13.98 ) – – – – 118 (4.65) 324 (12.76)
6.5 Installing Peripheral Devices
260
