YASKAWA Z1000 User Manual

n
Three-Phase AC 200 V 2A0075F to 2A0114F
Three-Phase AC 400 V 4A0065F to 4A0096F
A
B
C
D
J
E
F
G
K
L
H
I
A – Fan finger guard
B – Cooling fan
C – Top protective cover
D – Front cover
E – USB port (type-B)
F – HOA keypad
G – Screw
H – Rubber bushing
I – Conduit bracket
J – Optional 24 V DC power supply
connector cover
K – Heatsink
L – Mounting hole

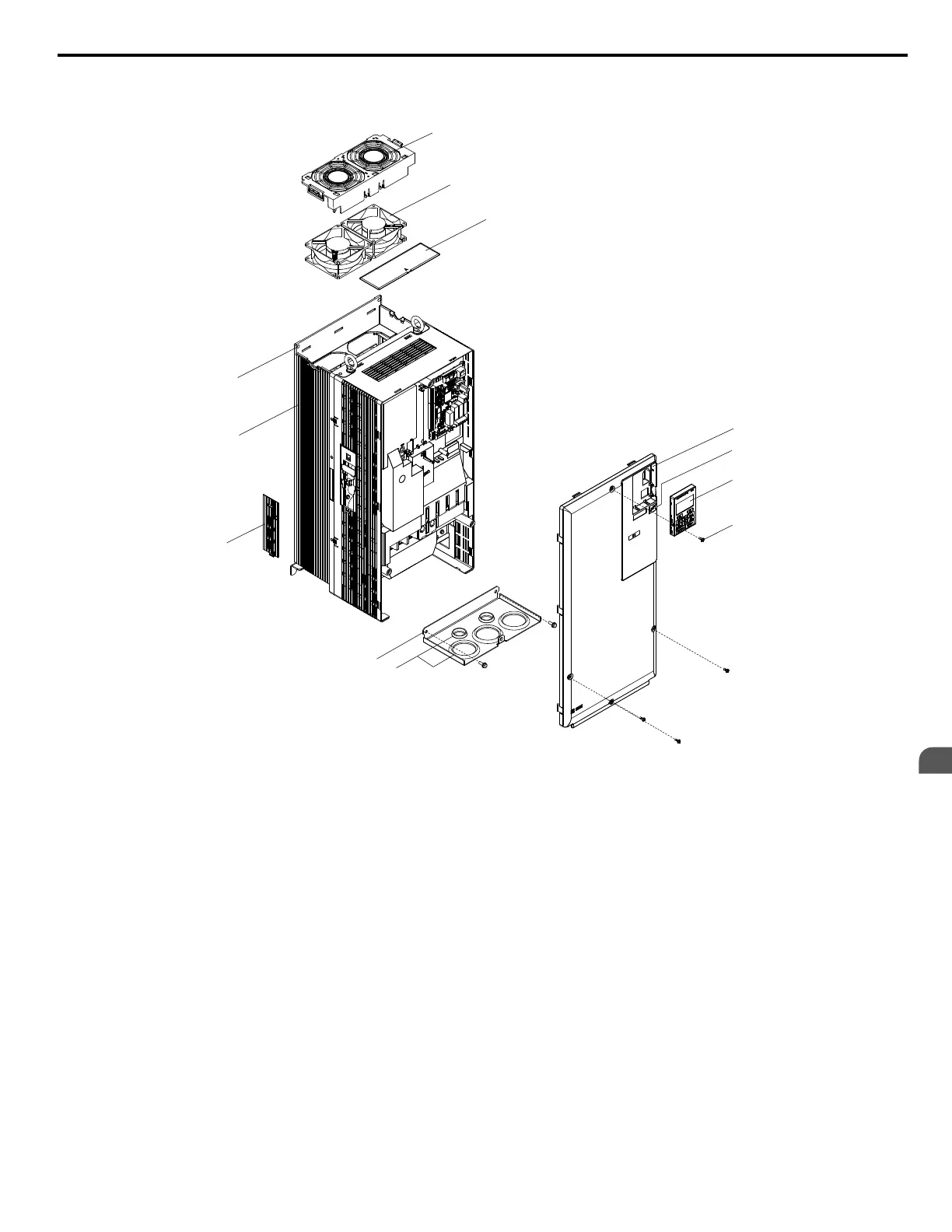

Figure 1.4 Exploded View of IP20/NEMA 1, UL Type 1 Enclosure Components (4A0096F)
1.5 Component Names
YASKAWA ELECTRIC TOEP C710616 45F YASKAWA AC Drive – Z1000 User Manual
31
1
Receiving

YASKAWA Z1000 Specifications

General

Model	Z1000
Category	Controller
Humidity	95% RH or less (non-condensing)
Control Method	V/F Control
Frequency Range	400 Hz
Protection	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication Options	Modbus
Operating Temperature	-10 to 50°C
Storage Temperature	-20 to 60°C
Altitude	Up to 1000 meters without derating
Cooling Method	Forced Air
Enclosure Rating	IP20
Voltage Class	200V, 400V
