YASKAWA Z1000 User Manual

n
Three-Phase AC 200 V 2A0143F to 2A0273F
Three-Phase AC 400 V 4A0124F to 4A0302F
A
B
C
D
M
F
G
H
I
J
E
N
O
K
L
A – Top protective cover
B – Fan guard
C – Cooling fan
D – Fan bracket
E – Front cover
F – USB port (type-B)
G – HOA keypad
H – Drive cover
I – Terminal cover
J – Screw
K – Rubber bushing
L – Conduit bracket
M – Optional 24 V DC power supply
connector cover
N – Heatsink
O – Mounting hole

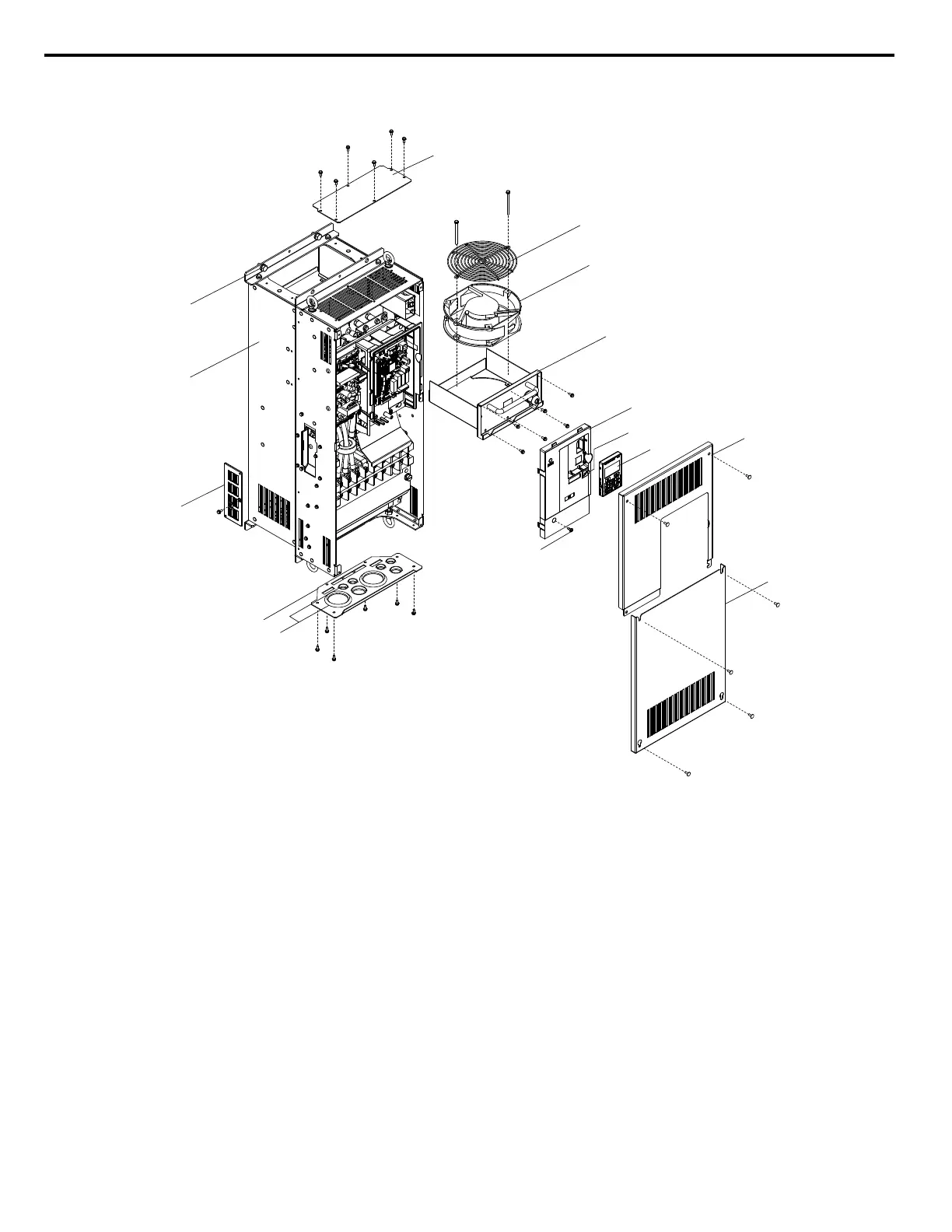

Figure 1.5 Exploded view of IP20/NEMA 1, UL Type 1 Enclosure Components (4A0124F)
1.5 Component Names
32
YASKAWA ELECTRIC TOEP C710616 45F YASKAWA AC Drive – Z1000 User Manual

YASKAWA Z1000 Specifications

General

Model	Z1000
Category	Controller
Humidity	95% RH or less (non-condensing)
Control Method	V/F Control
Frequency Range	400 Hz
Protection	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication Options	Modbus
Operating Temperature	-10 to 50°C
Storage Temperature	-20 to 60°C
Altitude	Up to 1000 meters without derating
Cooling Method	Forced Air
Enclosure Rating	IP20
Voltage Class	200V, 400V
