YASKAWA Z1000 - Page 34

n
Three-Phase AC 400 V 4A0361A
A
B
C
D
E
F
G
H
I
J
K
L
M
N
A – Fan guard
B – Cooling fan
C – Fan bracket
D – Circulation fan
E – Front cover
F – USB port (type-B)
G – HOA Keypad
H – Drive cover
I – Terminal cover
J – Front cover screw
K – Terminal board
L – Optional 24 V DC power supply
connector cover
M – Heatsink
N – Mounting hole

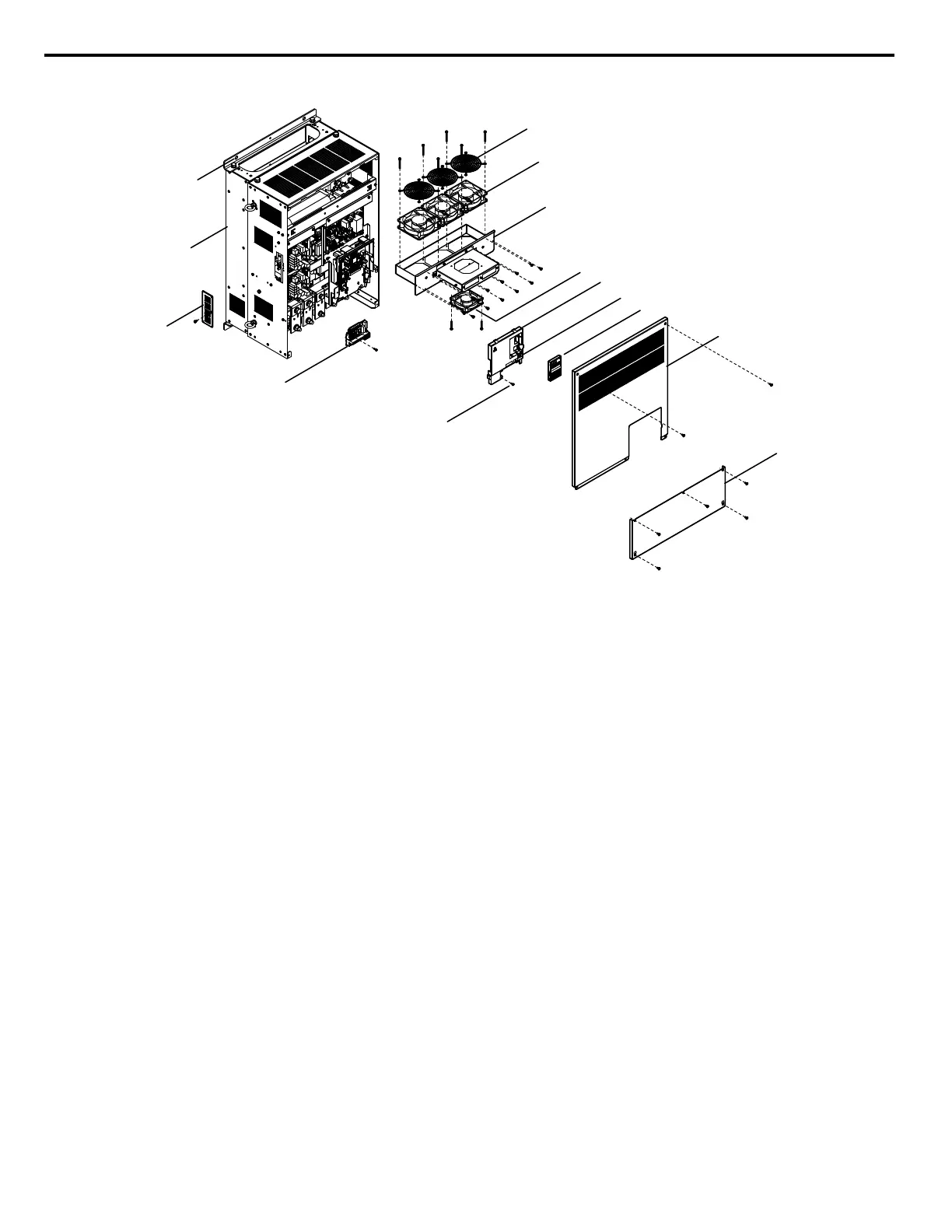

Figure 1.7 Exploded view of IP00/Open-Type Enclosure Components (4A0361A)
1.5 Component Names
34
