YASKAWA Z1000 - Page 35

n
Three-Phase AC 400 V 4A0414A
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
M
A – Fan guard
B – Cooling fan
C – Fan bracket
D – HOA Keypad
E – Drive cover 1
F – Drive cover 2
G – Terminal cover
H – USB port (type-B)
I – Front cover screw
J – Front cover
K – Circulation fan
L – Terminal board
M – Mounting hole
N – Optional 24 V DC power supply
connector cover
O – Heatsink

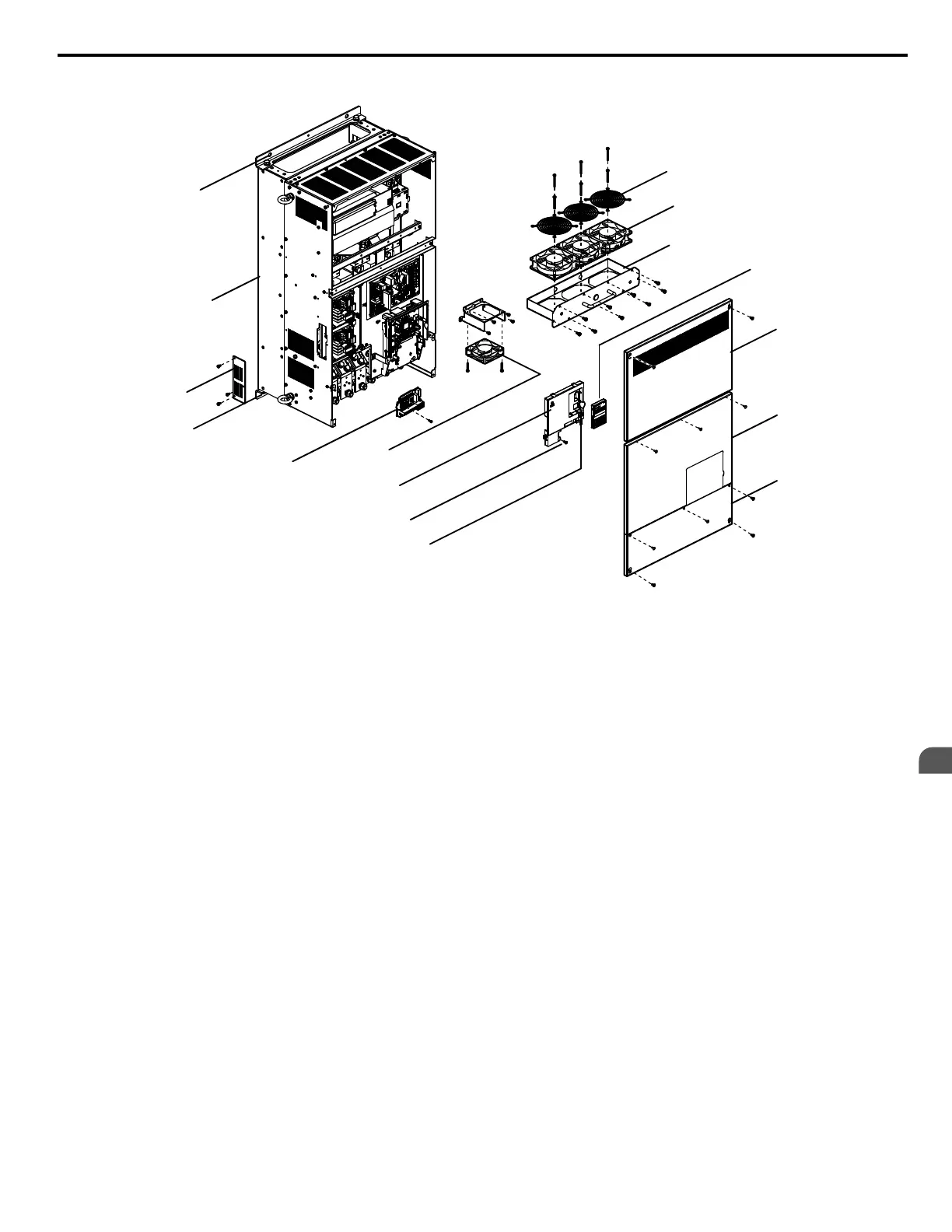

Figure 1.8 Exploded view of IP00/Open Type Enclosure Components (4A0414A)
