YASKAWA Z1000 - Page 36

n
Three-Phase AC 400 V 4A0480A to 4A0590A
A
B
C
F
D
E
G
H
I
K
L
N
O
M
J
A – Fan guard
B – Circuit board cooling fan
C – Cooling fan
D – Fan bracket
E – Circulation Fan
F – HOA keypad
G – Drive cover 1
H – Drive cover 2
I – Terminal cover
J – USB port (type-B)
K – Screw
L – Front cover
M – Circuit board cooling fan unit case
N – Heatsink
O – Mounting hole

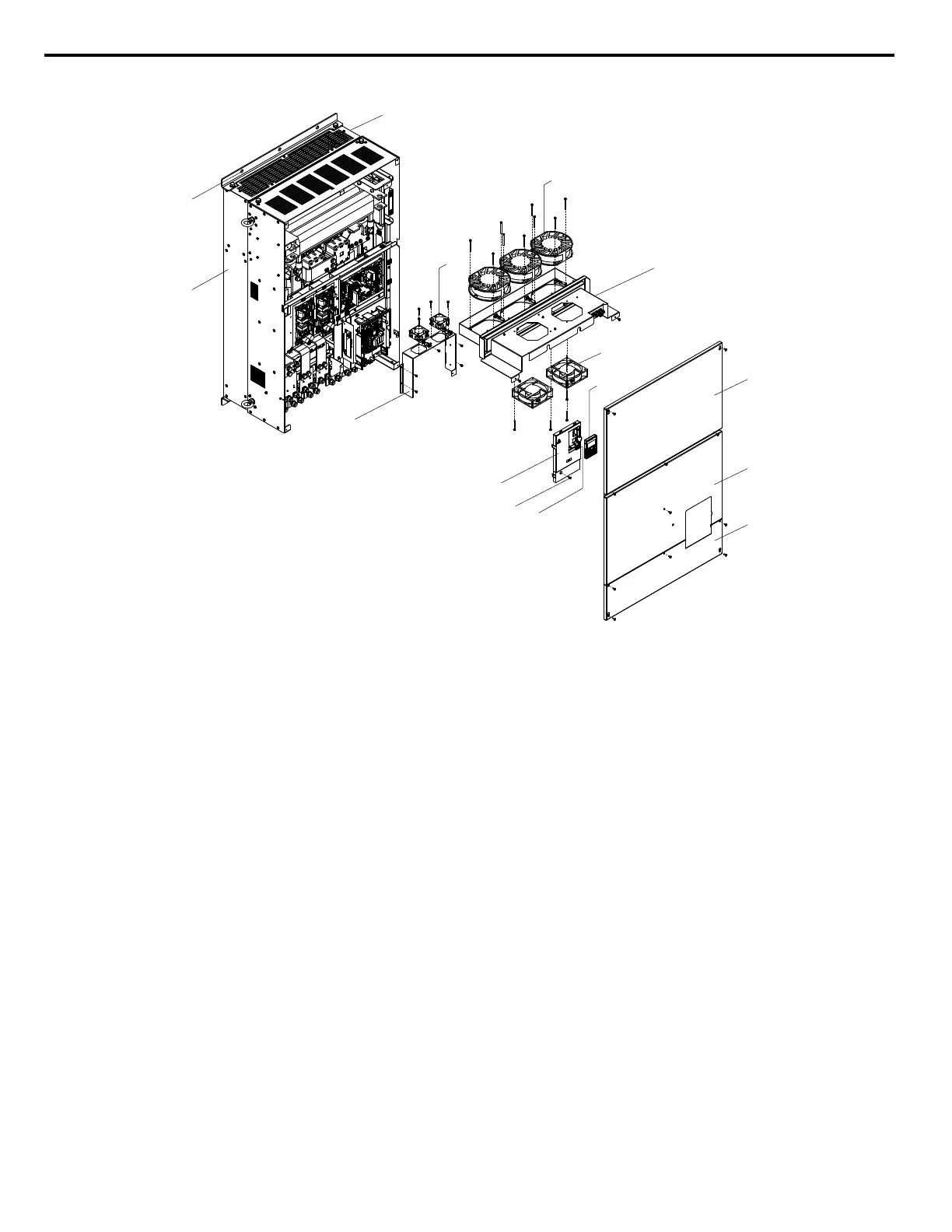

Figure 1.9 Exploded view of IP00/Open-Type Enclosure Components (4A0480A)
1.5 Component Names
