YASKAWA Z1000 User Manual

Drive Models 2A0143 to 2A0396 and 4A0124 to 4A0590
1.
Remove the terminal cover and the HOA keypad.
2.
Loosen the installation screw on the front cover.

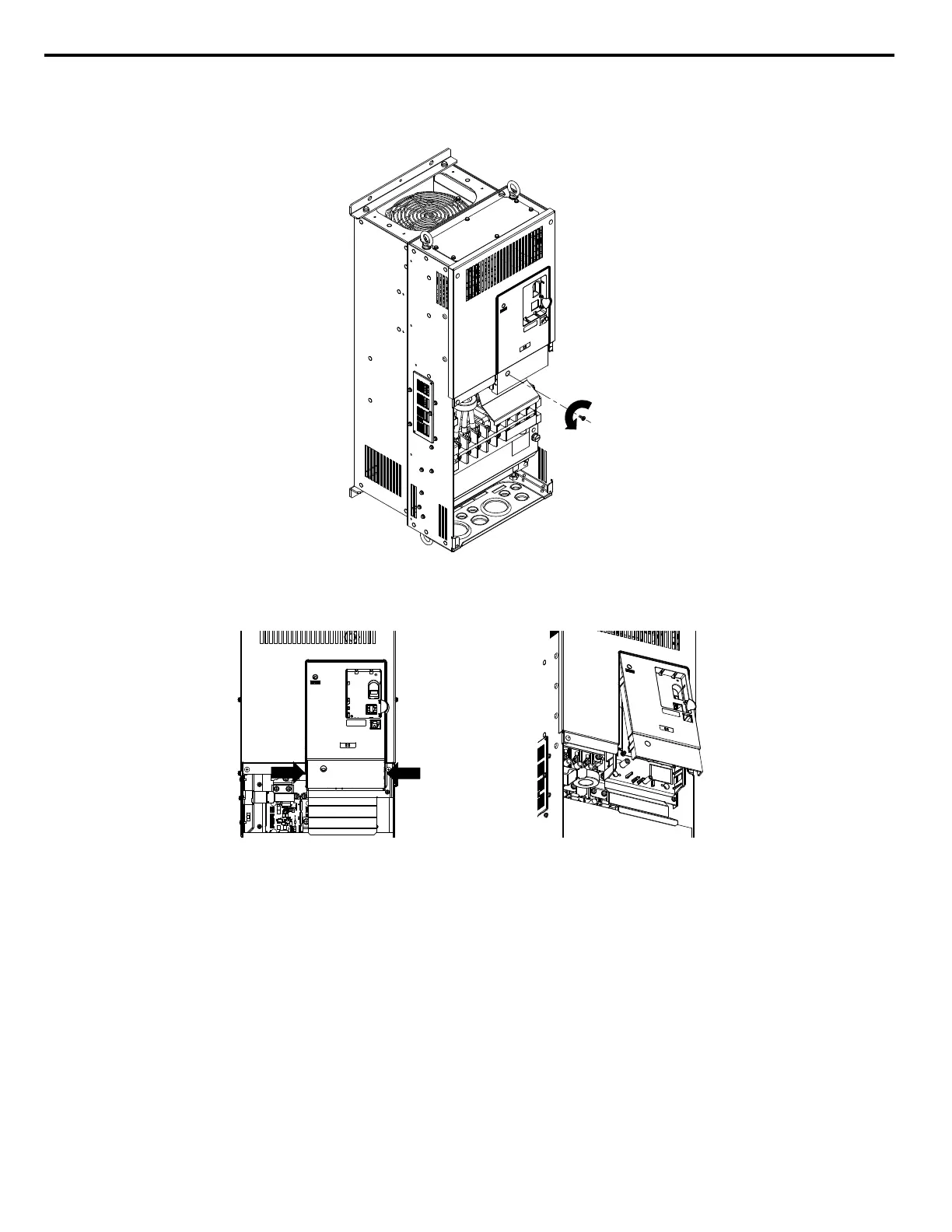

Figure 3.20 Loosen the Installation Screw (2A0143 to 2A0396 and 4A0124 to 4A0590)
3.
Push the hooks on each side of the cover that hold it in place.
Figure 3.21 Remove the Front Cover (2A0143 to 2A0396 and 4A0124 to 4A0590)
3.6 HOA Keypad and Front Cover
76
YASKAWA ELECTRIC TOEP C710616 45F YASKAWA AC Drive – Z1000 User Manual

YASKAWA Z1000 Specifications

General

Model	Z1000
Category	Controller
Humidity	95% RH or less (non-condensing)
Control Method	V/F Control
Frequency Range	400 Hz
Protection	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication Options	Modbus
Operating Temperature	-10 to 50°C
Storage Temperature	-20 to 60°C
Altitude	Up to 1000 meters without derating
Cooling Method	Forced Air
Enclosure Rating	IP20
Voltage Class	200V, 400V
