Ferrule-Type Wire Terminals
Yaskawa recommends using CRIMPFOX 6, a crimping tool manufactured by PHOENIX CONTACT, to prepare wire ends
with insulated sleeves before connecting to the drive. See Table 3.11 for dimensions.
d1
d2
8 mm
L
(0.31 in.)

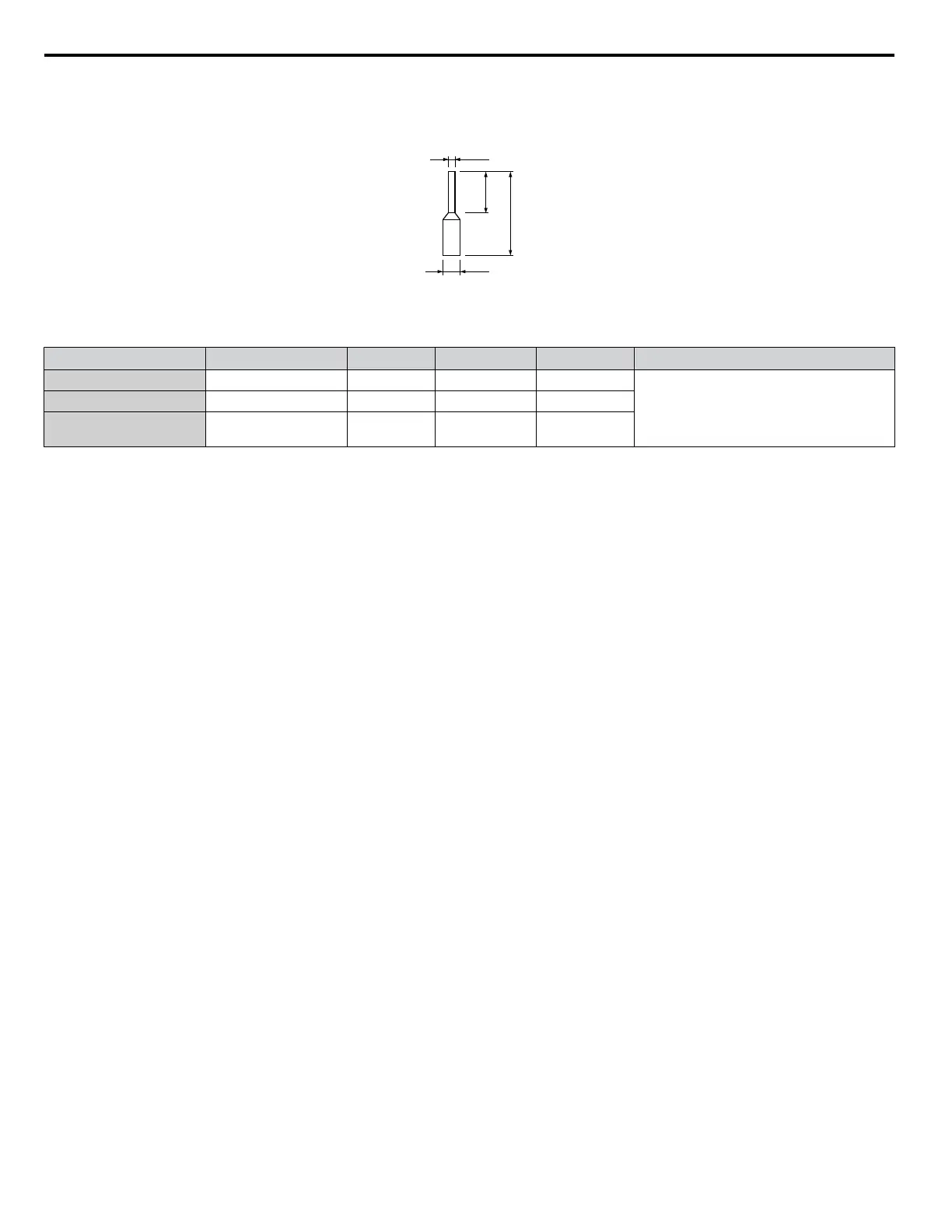

Figure 3.39 Ferrule Dimensions
Table 3.11 Ferrule Terminal Types and Sizes
Size mm
2
(AWG)
Type L mm (in) d1 mm (in) d2 mm (in) Manufacturer
0.25 (24) AI 0.25-8YE 12.5 (0.49) 0.8 (0.03) 2.0 (0.08)
PHOENIX CONTACT
0.34 (22) AI 0.34-8TQ 12.5 (0.49) 0.8 (0.03) 2.0 (0.08)
0.5 (20)
AI 0.5-8WH
AI 0.5-8OG
14.0 (0.55) 1.1 (0.04) 2.5 (0.10)
