A – Cable tie hole B – Cable hook

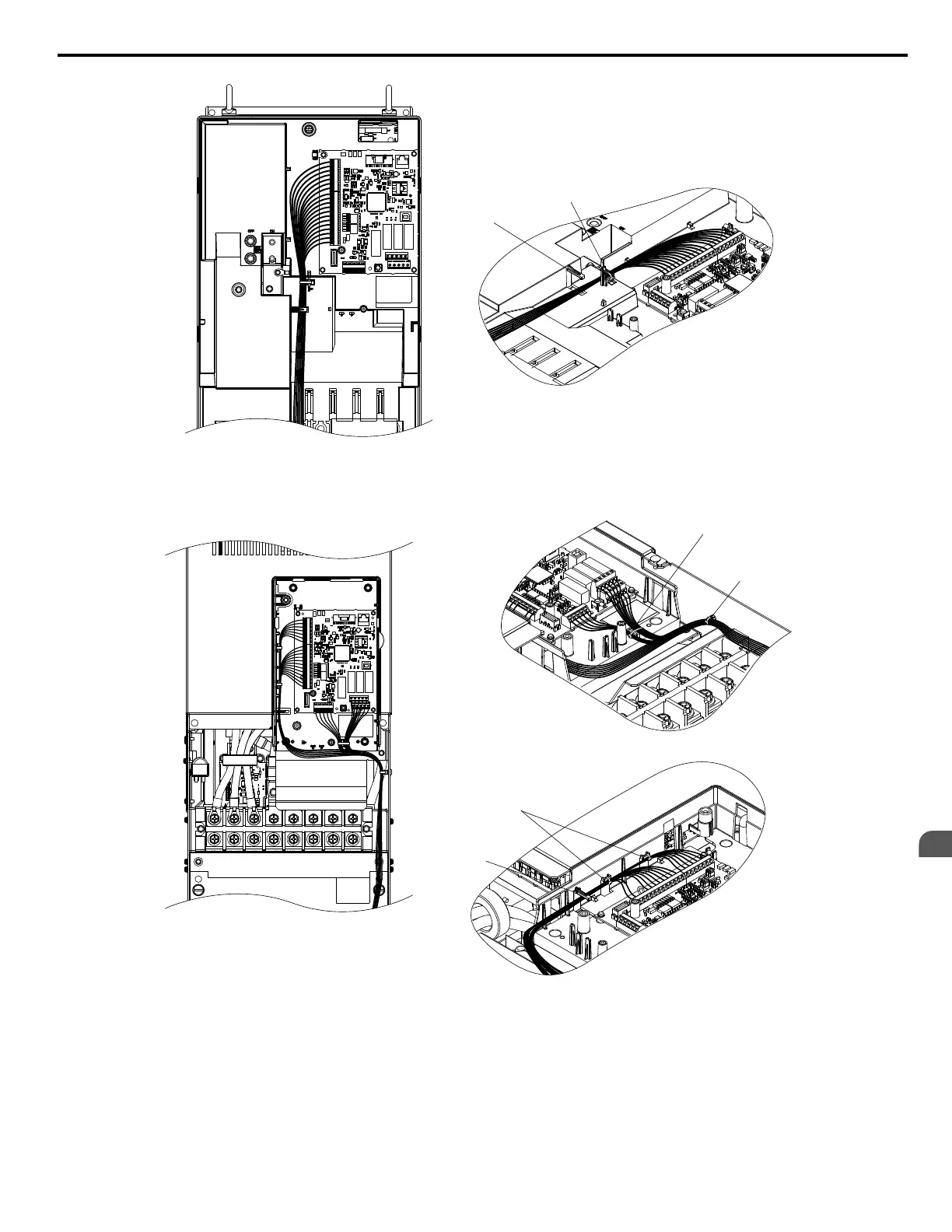

Figure 3.43 Control Terminal Wiring (2A0075 to 2A0114, 4A0052ooA, and 4A0065 to 4A0096)
A
B
C
B
A – Cable hook
B – Cable tie hole
C – Cable anchor
Figure 3.44 Control Terminal Wiring (4A0124)
3.9 Control Circuit Wiring
YASKAWA ELECTRIC TOEP C710616 45F YASKAWA AC Drive – Z1000 User Manual
97
3
Electrical Installation

YASKAWA Z1000 Specifications

General

Model	Z1000
Category	Controller
Humidity	95% RH or less (non-condensing)
Control Method	V/F Control
Frequency Range	400 Hz
Protection	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication Options	Modbus
Operating Temperature	-10 to 50°C
Storage Temperature	-20 to 60°C
Altitude	Up to 1000 meters without derating
Cooling Method	Forced Air
Enclosure Rating	IP20
Voltage Class	200V, 400V
