14.2 DDMI
The optical SFP transceiver’s support for the Digital Diagnostics Monitoring Interface (DDMI) function lets
you monitor the transceiver’s parameters to perform component monitoring, fault isolation and failure
prediction tasks. This allows proactive, preventative network maintenance to help ensure service
continuity.
Use this screen to view the DDMI status of the Switch’s SFP transceivers. Click MONITOR > Port Status >
DDMI to see the following screen. Alternatively, click DASHBOARD from any Web Configurator screen
and then the Port Status link in the Quick Link section of the DASHBOARD screen to display the Port Status
screen and then click the DDMI link tab.

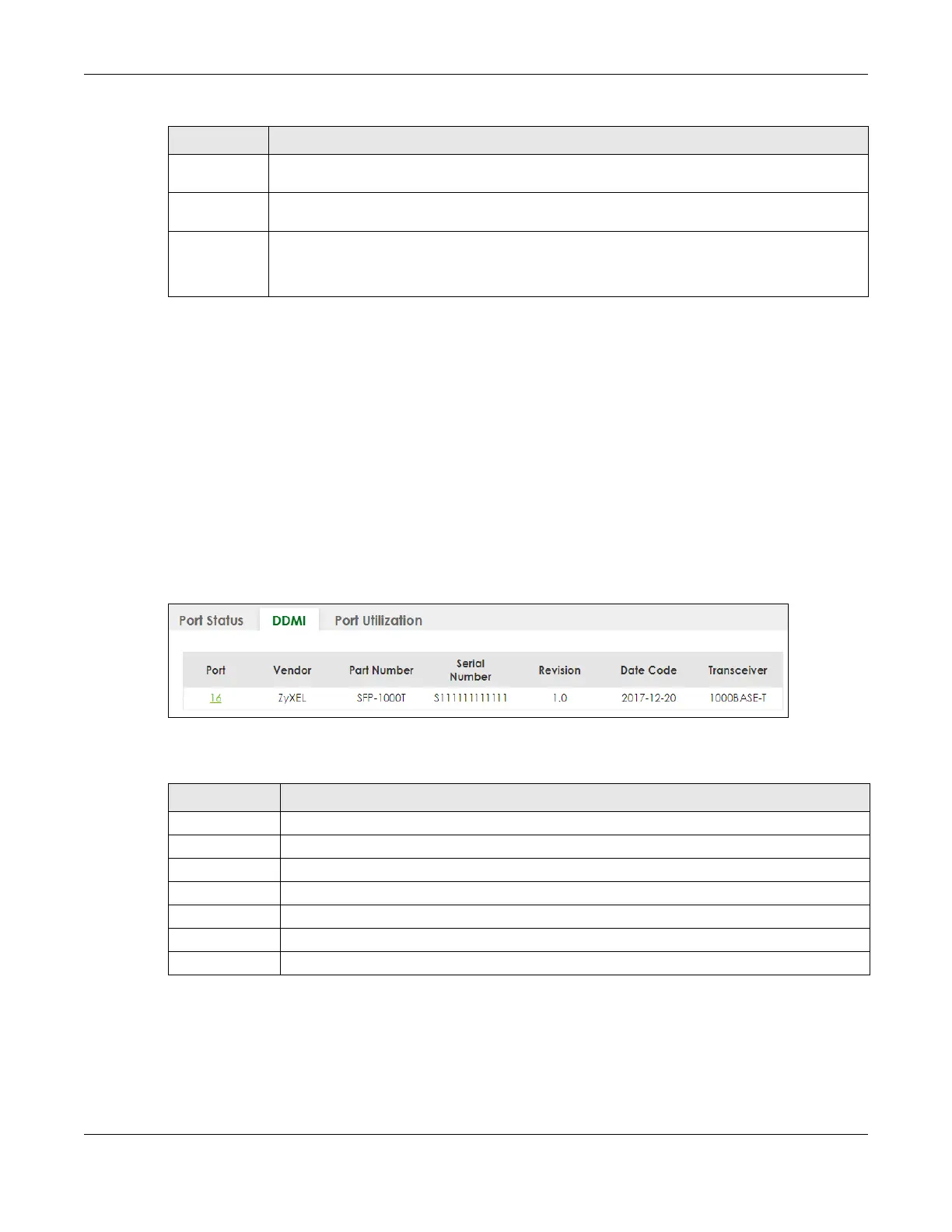

Figure 66 MONITOR > Port Status > DDMI
The following table describes the labels in this screen.
14.2.1 DDMI Details
Use this screen to view the real-time SFP (Small Form Factor Pluggable) transceiver information and
operating parameters on the SFP port. The parameters include, for example, transmitting and receiving
power, and module temperature.
512 to
1023
This field shows the number of packets (including bad packets) received that were between 512
and 1023 octets in length.
1024 to
1518
This field shows the number of packets (including bad packets) received that were between 1024
and 1518 octets in length.
Giant This field shows the number of packets (including bad packets) received that were between 1519
octets and the maximum frame size.
The maximum frame size varies depending on your switch model.
Table 22 MONITOR > Port Status > Port Status > Port Details (continued)
LABEL DESCRIPTION
Table 23 MONITOR > Port Status > DDMI
LABEL DESCRIPTION
Port This identifies the SFP port. Click a port number to display the DDMI Details screen.
Vendor This displays the vendor name of the optical transceiver.
Part Number This displays the part number of the optical transceiver.
Serial Number This displays the serial number of the optical transceiver.
Revision This displays the revision number of the optical transceiver.
Date Code This displays the date when the optical transceiver was manufactured.
Transceiver This displays the type of transceiver installed in the SGP slot.
