32.4 OAM Remote Loopback
Use this screen to perform a remote loopback test. Click PORT > OAM > OAM Remote Loopback to
display the screen as shown.

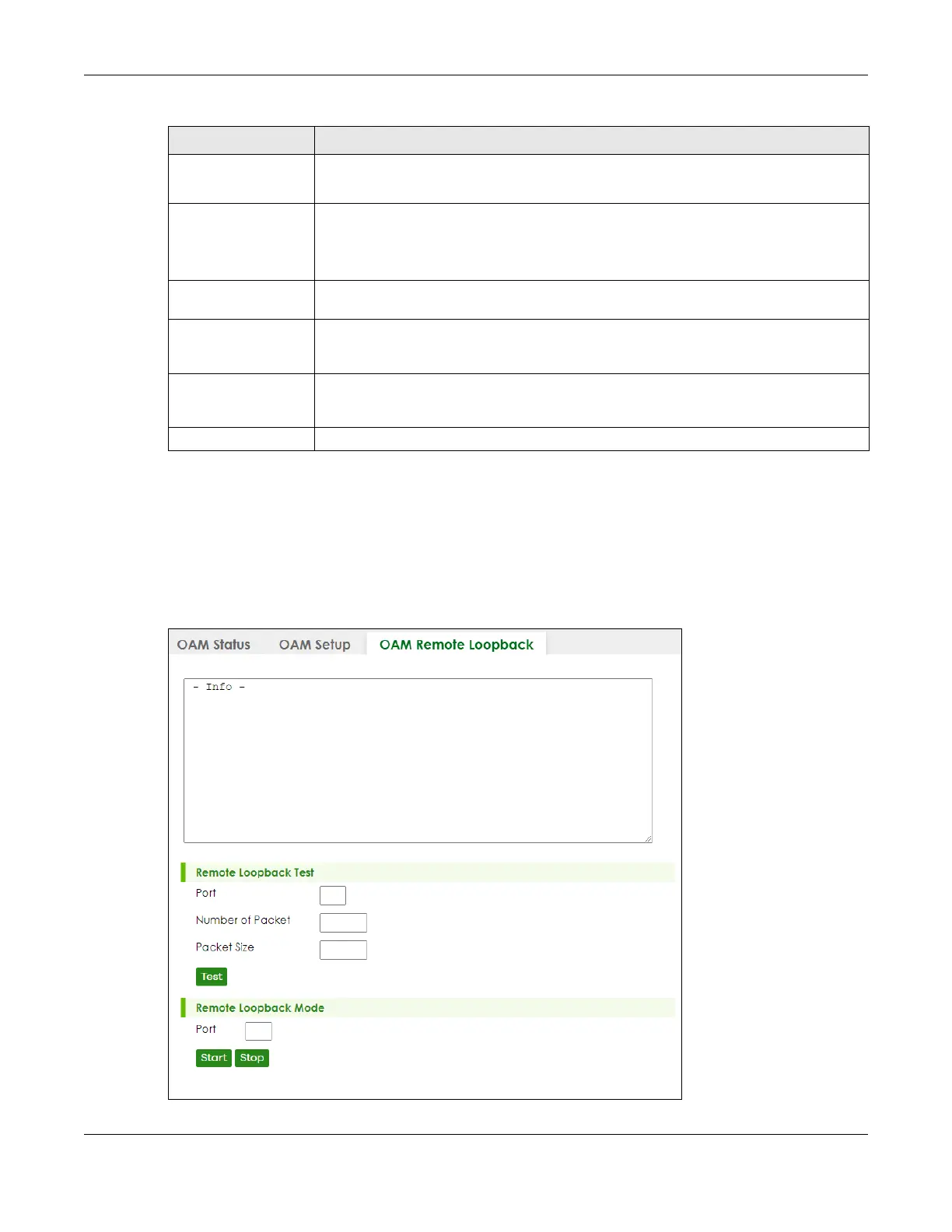

Figure 134 PORT > OAM > OAM Remote Loopback
Active Select this check box to enable Ethernet OAM on this port.
Clear this check box to disable Ethernet OAM on the port.
Mode Specify the OAM mode on the port.
Select Active to allow the port to issue and respond to Ethernet OAM commands.
Select Passive to allow the port to respond to Ethernet OAM commands.
Remote Loopback
Supported
Select this check box to enable the remote loopback feature on the port. Otherwise, clear
the check box to disable it.
Remote Loopback
Ignore-Rx
Select this check box to set the Switch to process loopback commands received on the
port. Otherwise, clear the check box to have the Switch ignore loopback commands
received on the port.
Apply Click Apply to save your changes to the Switch’s run-time memory. The Switch loses these
changes if it is turned off or loses power, so use the Save link on the top navigation panel to
save your changes to the non-volatile memory when you are done configuring.
Cancel Click Cancel to begin configuring this screen afresh.
Table 93 PORT > OAM > OAM Setup (continued)
