Chapter 49 VLAN
GS1920v2 Series User’s Guide
302
49.5 VLAN Port Setup
Use this screen to configure the static VLAN (IEEE 802.1Q) settings on a port. Click SWITCHING > VLAN >
VLAN Setup > VLAN Port Setup to display the screen as shown.

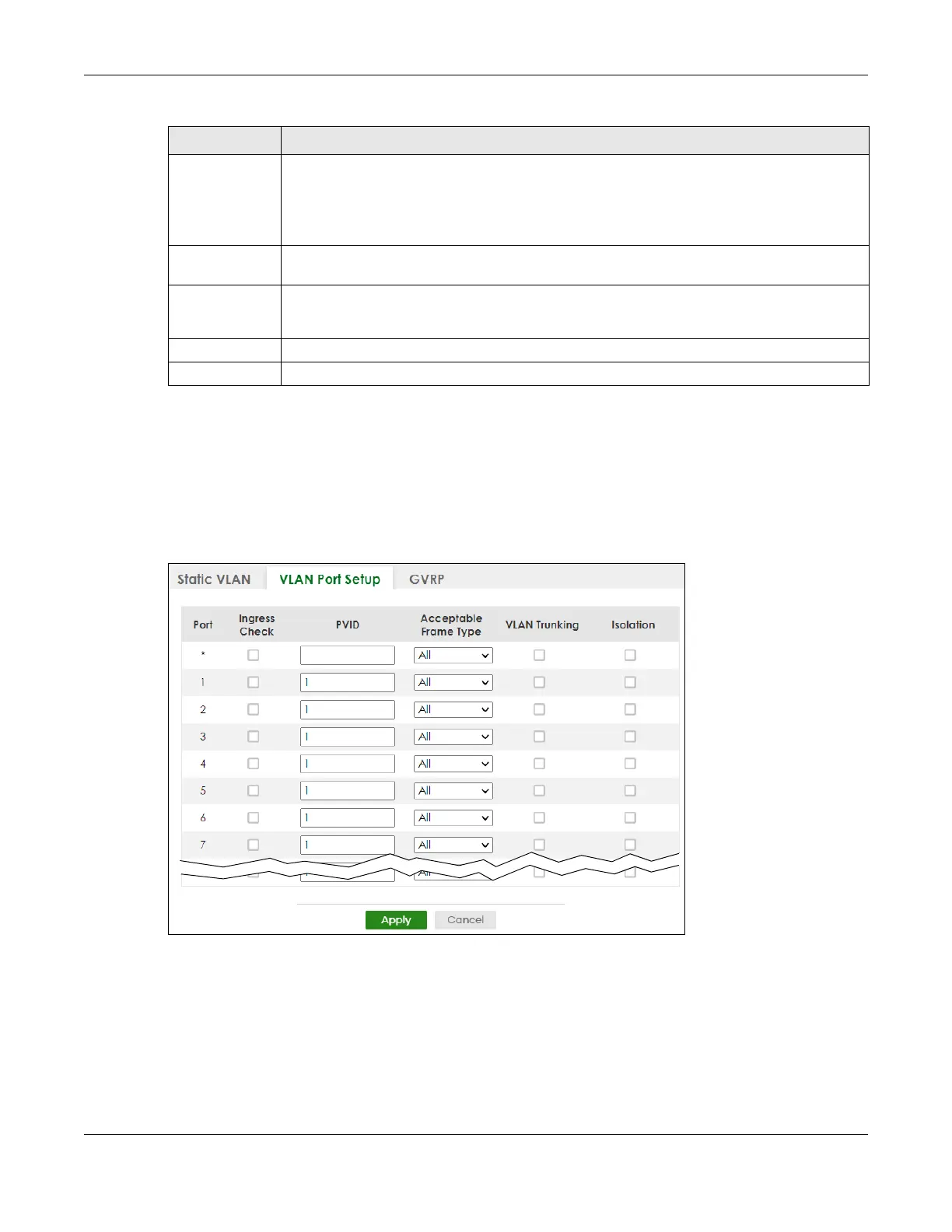

Figure 215 SWITCHING > VLAN > VLAN Setup > VLAN Port Setup
Control Select Normal for the port to dynamically join this VLAN group using GVRP. This is the default
selection.
Select Fixed for the port to be a permanent member of this VLAN group.
Select Forbidden if you want to prohibit the port from joining this VLAN group.
Tagging Select Tx Tagging if you want the port to tag all outgoing frames transmitted with this VLAN
Group ID.
Apply Click Apply to save your changes to the Switch’s run-time memory. The Switch loses these
changes if it is turned off or loses power, so use the Save link on the top navigation panel to save
your changes to the non-volatile memory when you are done configuring.
Clear Click Clear to clear the fields to the factory defaults.
Cancel Click Cancel to not save the configuration you make and return to the last screen.
Table 160 SWITCHING > VLAN > VLAN Setup > Static VLAN > Add/Edit (continued)
LABEL DESCRIPTION
To Next Page
