Chapter 48 Static MAC Forwarding
GS1920v2 Series User’s Guide
293
The following table describes the labels in this screen.
48.2.1 Add/Edit Static MAC Forwarding Rules
Click Add/Edit, or select an entry and click Add/Edit in the SWITCHING > Static MAC Forwarding screen
to display this screen.

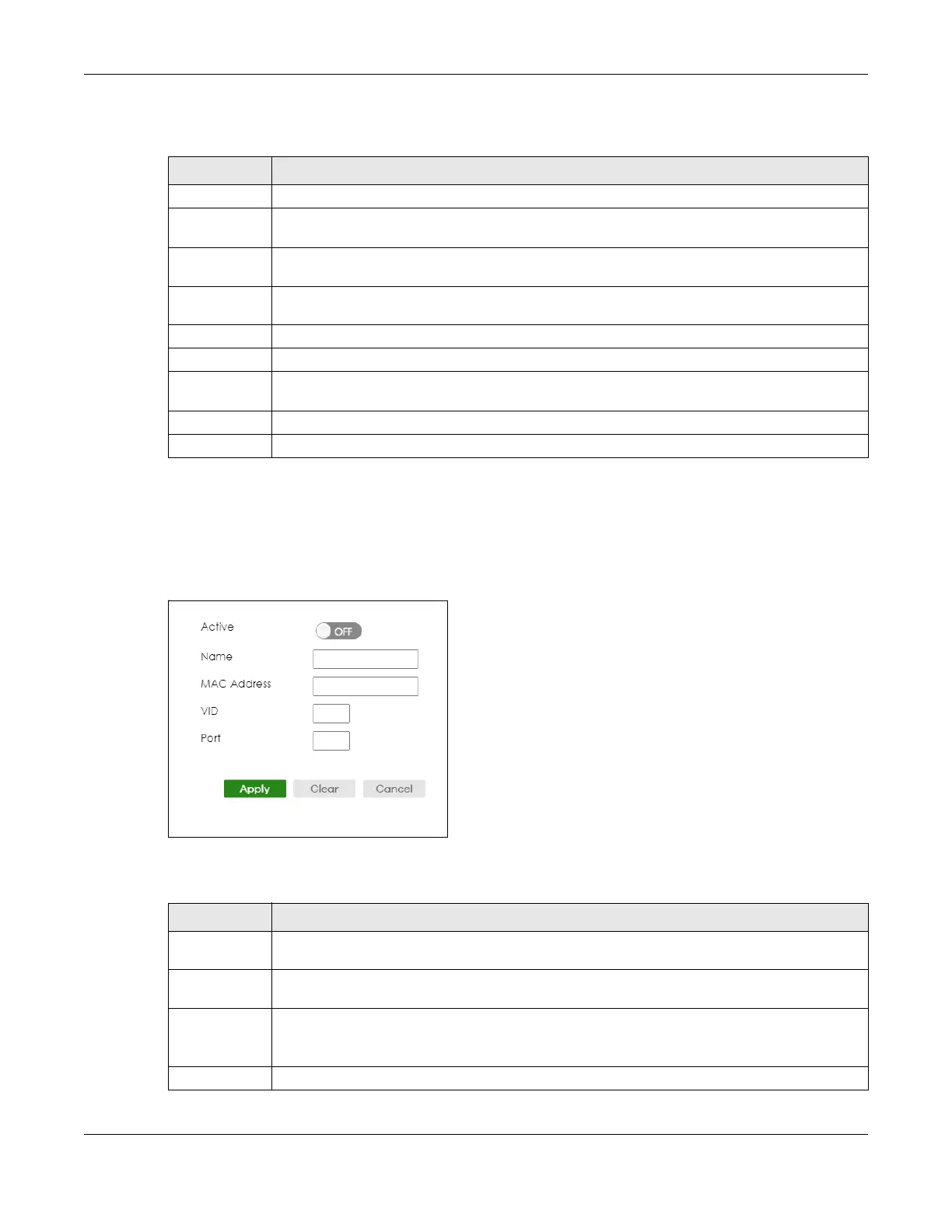

Figure 208 SWITCHING > Static MAC Forwarding > Add/Edit
The following table describes the labels in this screen.
Table 154 SWITCHING > Static MAC Forwarding
LABEL DESCRIPTION
Index This is the index number of a static MAC address rule.
Active This field displays whether this static MAC address forwarding rule is active. You may temporarily
deactivate a rule without deleting it.
Name This field displays the descriptive name for identification purposes for this static MAC address-
forwarding rule.
MAC Address This field displays the MAC address that will be forwarded and the VLAN identification number to
which the MAC address belongs.
VID This field displays the ID number of the VLAN group.
Port This field displays the port where the MAC address shown in the next field will be forwarded.
Select an entry’s check box to select a specific entry. Otherwise, select the check box in the table
heading row to select all entries.
Add/Edit Click Add/Edit to add a new rule or edit a selected one.
Delete Click Delete to remove the selected rules.
Table 155 SWITCHING > Static MAC Forwarding > Add/Edit
LABEL DESCRIPTION
Active Enable the switch button to activate your rule. You may temporarily deactivate a rule without
deleting it by disabling the switch.
Name Enter a descriptive name for identification purposes for this static MAC address forwarding rule.
You can enter up to 32 printable ASCII characters except [ ? ], [ | ], [ ' ], [ " ] or [ , ].
MAC Address Enter the MAC address in valid MAC address format, that is, six hexadecimal character pairs.
Note: Static MAC addresses do NOT age out.
VID Enter the VLAN identification number.
