Chapter 49 VLAN
GS1920v2 Series User’s Guide
306
The following table describes the labels in this screen.
49.8.1 Add/Edit Subnet Based VLAN
Click Add/Edit, or select an entry and click Add/Edit in the SWITCHING > VLAN > Subnet Based VLAN
Setup screen to display this screen.

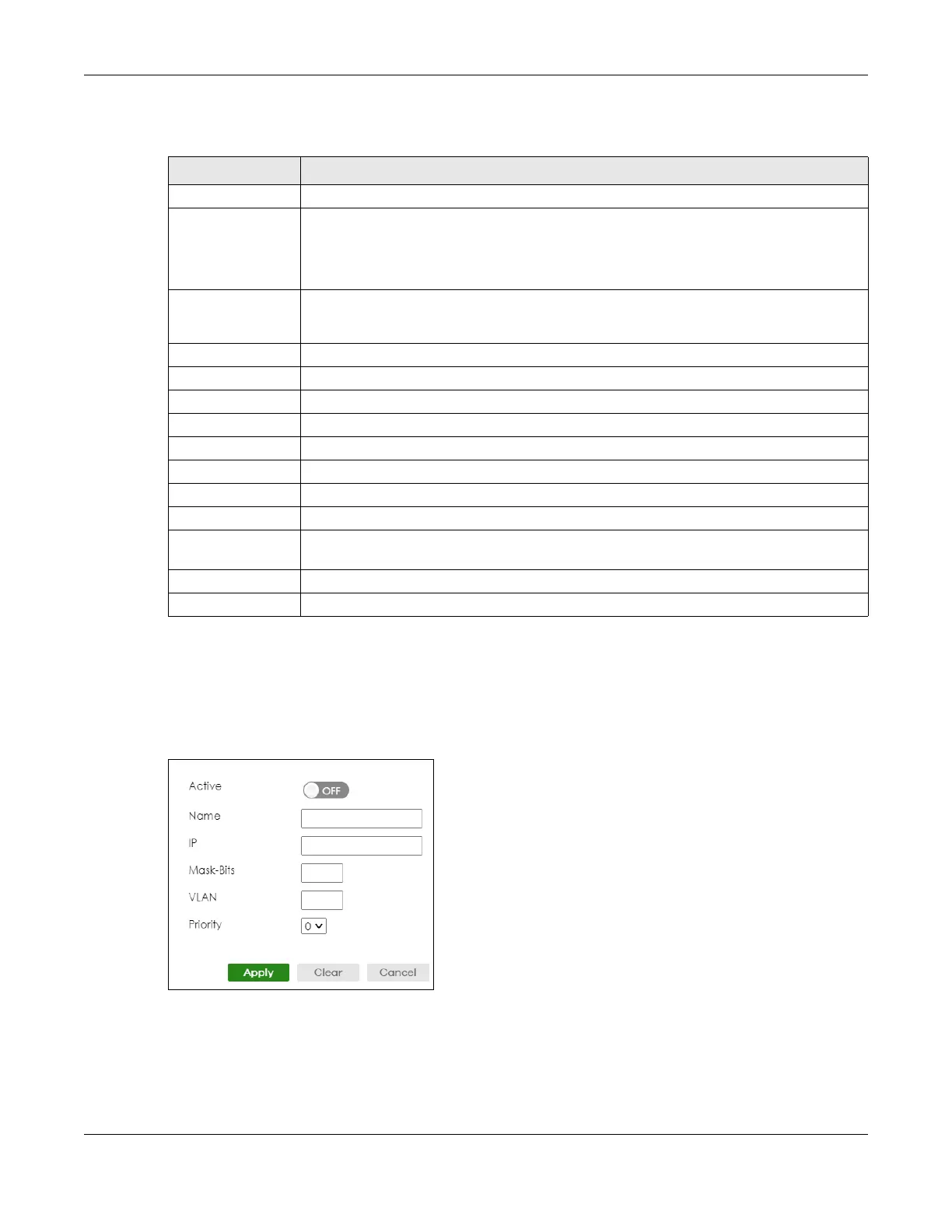

Figure 219 SWITCHING > VLAN > Subnet Based VLAN Setup > Add/Edit
Table 163 SWITCHING > VLAN > Subnet Based VLAN Setup
LABEL DESCRIPTION
Active Enable the switch button to activate this subnet based VLANs on the Switch.
DHCP-VLAN
Override
When DHCP snooping is enabled DHCP clients can renew their IP address through the DHCP
VLAN or through another DHCP server on the subnet based VLAN.
Enable the switch button to force the DHCP clients in this IP subnet to obtain their IP
addresses through the DHCP VLAN.
Apply Click Apply to save your changes to the Switch’s run-time memory. The Switch loses these
changes if it is turned off or loses power, so use the Save link on the top navigation panel to
save your changes to the non-volatile memory when you are done configuring.
Cancel Click Cancel to begin configuring this screen afresh.
Index This is the index number identifying this subnet based VLAN.
Active This field shows whether the subnet based VLAN is active or not.
Name This field shows the name the subnet based VLAN.
IP This field shows the IP address of the subnet for this subnet based VLAN.
Mask-Bits This field shows the subnet mask in bit number format for this subnet based VLAN.
VID This field shows the VLAN ID of the frames which belong to this subnet based VLAN.
Priority This field shows the priority which is assigned to frames belonging to this subnet based VLAN.
Select an entry’s check box to select a specific entry. Otherwise, select the check box in the
table heading row to select all entries.
Add/Edit Click Add/Edit to add a new entry or edit a selected one.
Delete Click Delete to remove the selected entry.
