Chapter 3 Hardware Panels
GS1920v2 Series User’s Guide
40
CHAPTER 3
Hardware Panels
This chapter describes the front panel and rear panel of the Switch and shows you how to make the
hardware connections.
3.1 Front Panel Connections
Note that the front panels of the Switch do not state the v2 model names.

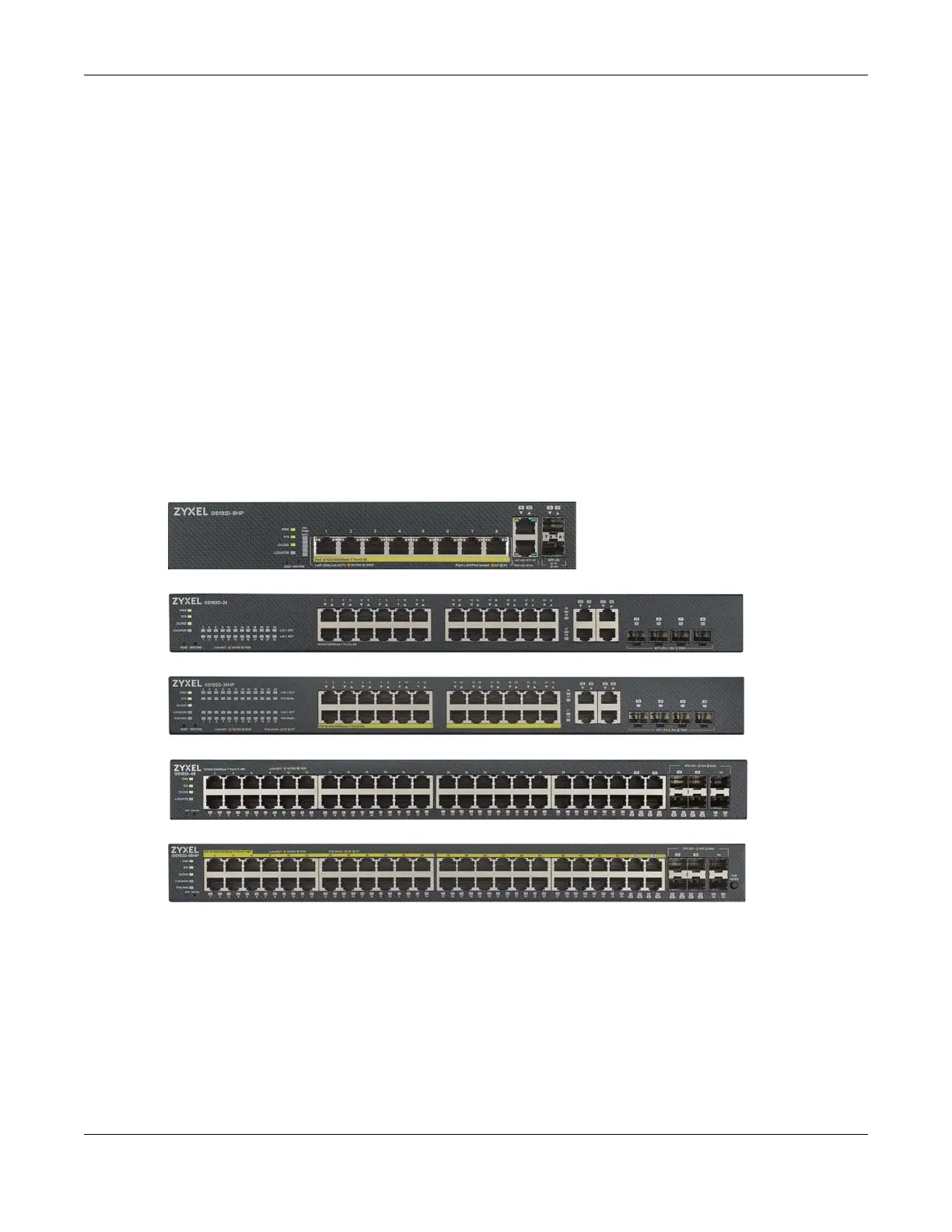

Figure 12 Front Panel: GS1920-8HPv2
Figure 13 Front Panel: GS1920-24v2
Figure 14 Front Panel: GS1920-24HPv2
Figure 15 Front Panel: GS1920-48v2
Figure 16 Front Panel: GS1920-48HPv2
3.1.1 Gigabit Ethernet Ports
The Switch has 1000Base-T auto-negotiating, auto-crossover Ethernet ports. In 10/100/1000 Mbps Gigabit
Ethernet, the speed can be 10 Mbps, 100 Mbps or 1000 Mbps. The duplex mode can be half duplex or
full duplex.
An auto-negotiating port can detect and adjust to the optimum Ethernet speed (10/100/1000 Mbps)
and duplex mode (full duplex or half duplex) of the connected device.
An auto-crossover (auto-MDI/MDI-X) port automatically works with a straight-through or crossover
