Chapter 2 Hardware Installation and Connection
GS1920v2 Series User’s Guide
34
2 Remove the adhesive backing from the rubber feet.
3 Attach the rubber feet to each corner on the bottom of the Switch. These rubber feet help protect the
Switch from shock or vibration and ensure space between devices when stacking.

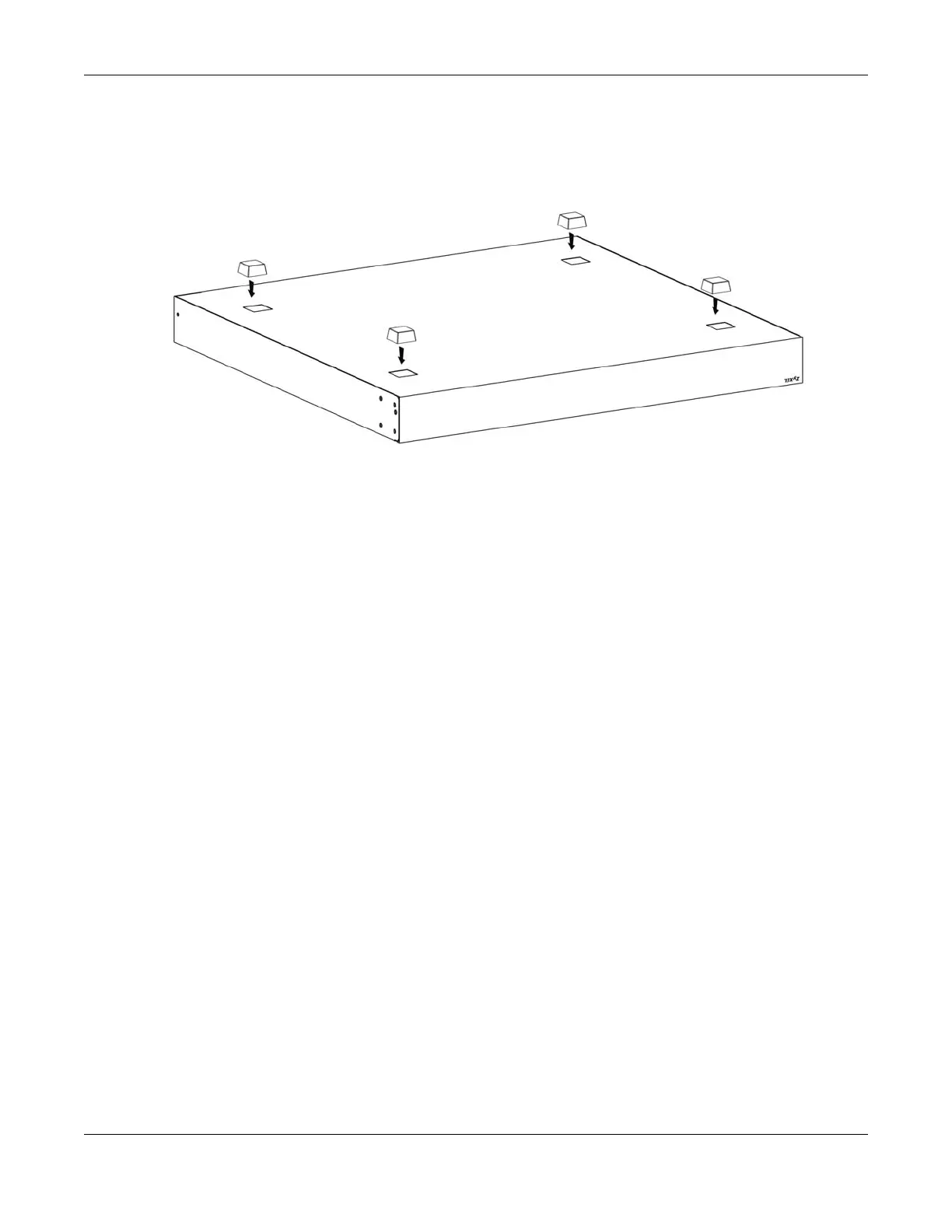

Figure 7 Attaching Rubber Feet
4 Set the Switch on a smooth, level surface strong enough to support the weight of the Switch and the
connected cables. Make sure there is a power outlet nearby.
Cautions:
• Avoid stacking fanless Switches to prevent overheating.
• Ensure enough clearance around the Switch to allow air circulation for cooling.
• Do NOT remove the rubber feet as it provides space for air circulation.
2.4 Desk Mounting (GS1920-8HPv2 Only)
The GS1920-8HPv2 can be mounted under a table. Follow the steps below to mount your Switch under a
table.
2.4.1 Installation Requirements
• Two mounting brackets
• Eight M3 flat head screws and a #2 Philips screwdriver
• Four M4 flat head screws and a #2 Philips screwdriver
• Four washers (inside diameter: 3.5 mm; outside diameter: 11.5 mm)
2.4.2 Precautions
• Make sure to place the Switch horizontally under a smooth level surface.
• Make sure the table is sturdy enough for desk mounting.
• Make sure there is enough table thickness to drill screws.
• Make sure there is sufficient space for port connections.
