Chapter 49 VLAN
GS1920v2 Series User’s Guide
314
49.13.1 Add/Edit a Vendor ID Based VLAN
Click Add/Edit, or select an entry and click Add/Edit in the SWITCHING > VLAN > Vendor ID Based VLAN
Setup to see this screen.

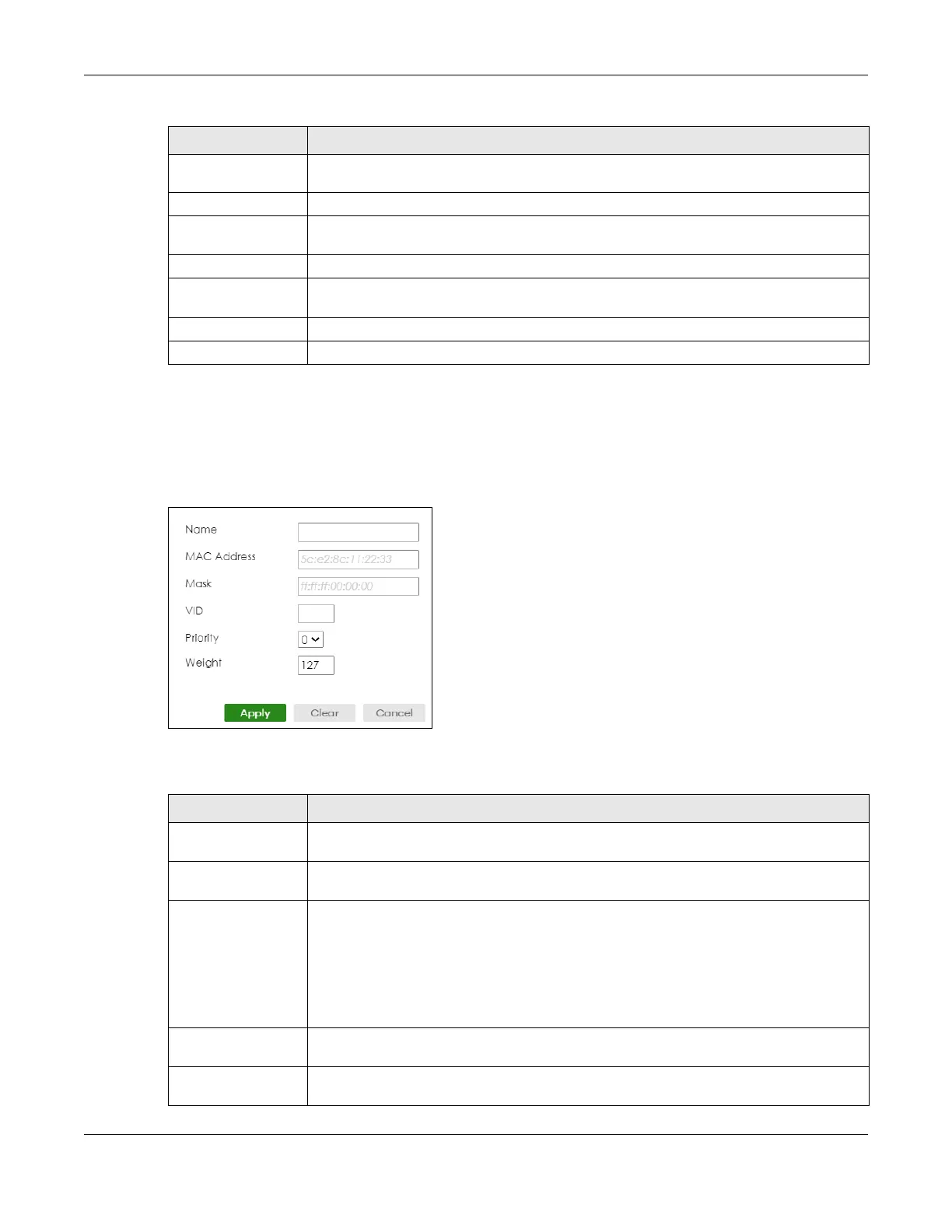

Figure 228 SWITCHING > VLAN > Vendor ID Based VLAN Setup > Add/Edit
The following table describes the fields in the above screen.
Mask This field displays the mask for the source MAC address that is bind to the vendor ID based
VLAN entry.
VLAN This field displays the VLAN ID of the vendor ID based VLAN entry.
Priority This field displays the priority level which is assigned to frames belonging to this vendor ID
based VLAN.
Weight This field displays the weight of the vendor ID based VLAN entry.
Select an entry’s check box to select a specific entry. Otherwise, select the check box in
the table heading row to select all entries.
Add/Edit Click Add/Edit to add a new entry or edit a selected one.
Delete Click Delete to remove the selected entry.
Table 171 SWITCHING > VLAN > Vendor ID Based VLAN Setup (continued)
LABEL DESCRIPTION
Table 172 SWITCHING > VLAN > Vendor ID Based VLAN Setup > Add/Edit
LABEL DESCRIPTION
Name Enter a name up to 32 alphanumeric characters except [ ? ], [ | ], [ ' ], or [ " ] for the vendor
ID based VLAN entry.
MAC Address Enter a MAC address that is bind to the vendor ID-based VLAN entry. This is the source MAC
address of the data packet that is looked up when untagged packets arrive at the Switch.
Mask Enter the mask for the specified source MAC address to determine which bits a packet’s
MAC address should match.
Enter “f” for each bit of the specified MAC address that the traffic’s MAC address should
match. Enter “0” for the bits of the matched traffic’s MAC address, which can be of any
hexadecimal characters. For example, if you set the MAC address to 00:13:49:00:00:00 and
the mask to ff:ff:ff:00:00:00, a packet with a MAC address of 00:13:49:12:34:56 matches this
criteria.
VID Enter an ID (from 1 to 4094) for the VLAN that is associated with the vendor ID based VLAN
entry.
Priority Select the priority level that the Switch assigns to frames belonging to this VLAN. The higher
the numeric value you assign, the higher the priority for this vendor ID based VLAN entry.
