Chapter 54 Static Route
GS1920v2 Series User’s Guide
341

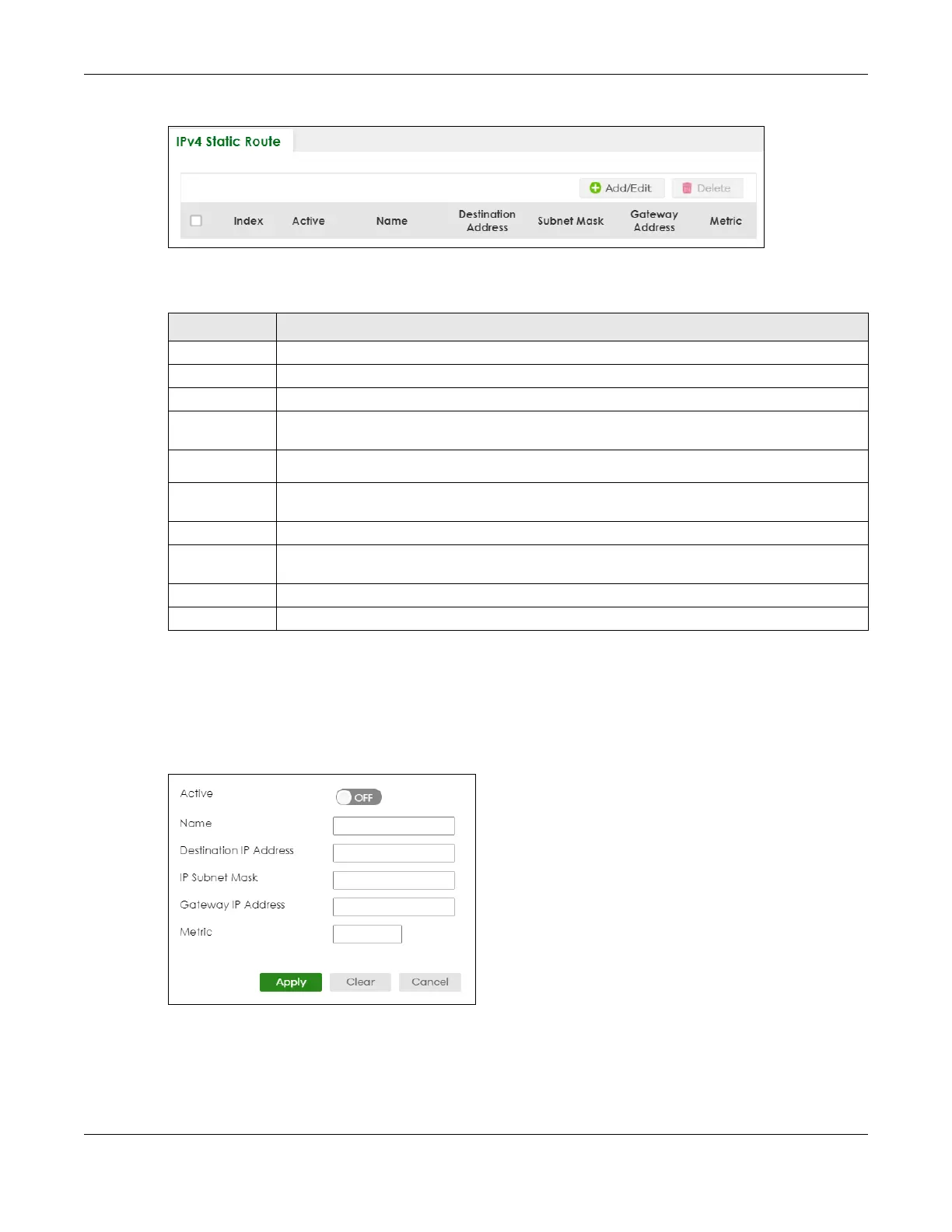

Figure 251 NETWORKING > Static Routing > IPv4 Static Route
The following table describes the related labels you use to create a static route.
54.2.1 Add/Edit IPv4 Static Route
Click Add/Edit, or select an entry and click Add/Edit in the NETWORKING > Static Routing > IPv4 Static
Route screen to display this screen.
Figure 252 NETWORKING > Static Routing > IPv4 Static Route > Add/Edit
Table 191 NETWORKING > Static Routing > IPv4 Static Route
LABEL DESCRIPTION
Index This field displays the index number of the route.
Active This field displays whether the static route is activated or not.
Name This field displays the descriptive name for this route. This is for identification purposes only.
Destination
Address
This field displays the IP network address of the final destination.
Subnet Mask This field displays the subnet mask for this destination.
Gateway
Address
This field displays the IP address of the gateway. The gateway is an immediate neighbor of your
Switch that will forward the packet to the destination.
Metric This field displays the cost of transmission for routing purposes.
Select an entry’s check box to select a specific entry. Otherwise, select the check box in the
table heading row to select all entries.
Add/Edit Click Add/Edit to add a new entry or edit a selected one.
Delete Click Delete to remove the selected entries.
