The following table describes the labels in this screen.
31.9 LLDP-MED Network Policy
Click PORT > LLDP > LLDP MED > LLDP-MED Network Policy to display the screen as shown next.

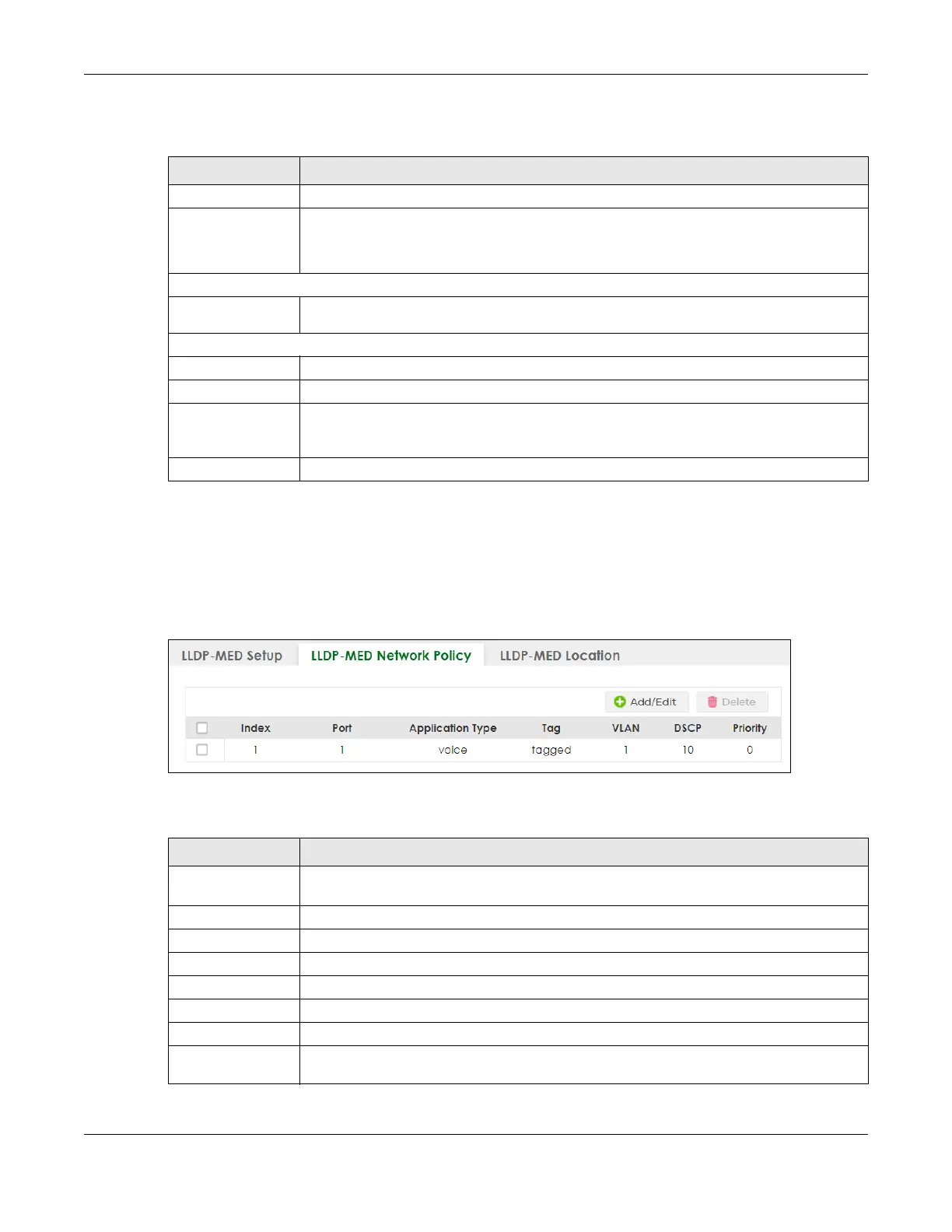

Figure 127 PORT > LLDP > LLDP MED > LLDP-MED Network Policy
The following table describes the labels in this screen.
Table 86 PORT > LLDP > LLDP > LLDP-MED Setup
LABEL DESCRIPTION
Port This displays the Switch’s port number. Select * to configure all ports simultaneously.
* Use this row to make the setting the same for all ports. Use this row first and then make
adjustments to each port if necessary.
Changes in this row are copied to all the ports as soon as you make them.
Notification
Topology
Change
Select to enable LLDP-MED topology change traps on this port.
MED TLV Setting
Location Select to enable transmitting LLDP-MED location TLV.
Network Policy Select to enable transmitting LLDP-MED Network Policy TLV.
Apply Click Apply to save the changes to the Switch’s run-time memory. The Switch loses these
changes if it is turned off or loses power, so use the Save link on the top navigation panel to
save your changes to the non-volatile memory when you are done configuring.
Cancel Click Cancel to begin configuring this screen afresh.
Table 87 PORT > LLDP > LLDP MED > LLDP-MED Network Policy
LABEL DESCRIPTION
Index This field displays the of index number of the network policy. Click an index number to edit
the rule.
Port This field displays the port number of the network policy.
Application Type This field displays the application type of the network policy.
Tag This field displays the Tag Status of the network policy.
VLAN This field displays the VLAN ID of the network policy.
DSCP This field displays the DSCP value of the network policy.
Priority This field displays the priority value of the network policy.
Select an entry’s check box to select a specific entry. Otherwise, select the check box in the
table heading row to select all entries.
