Chapter 49 VLAN
GS1920v2 Series User’s Guide
298
49.2.0.3 Select the VLAN Type
Select a VLAN type in the SYSTEM > Switch Setup screen.

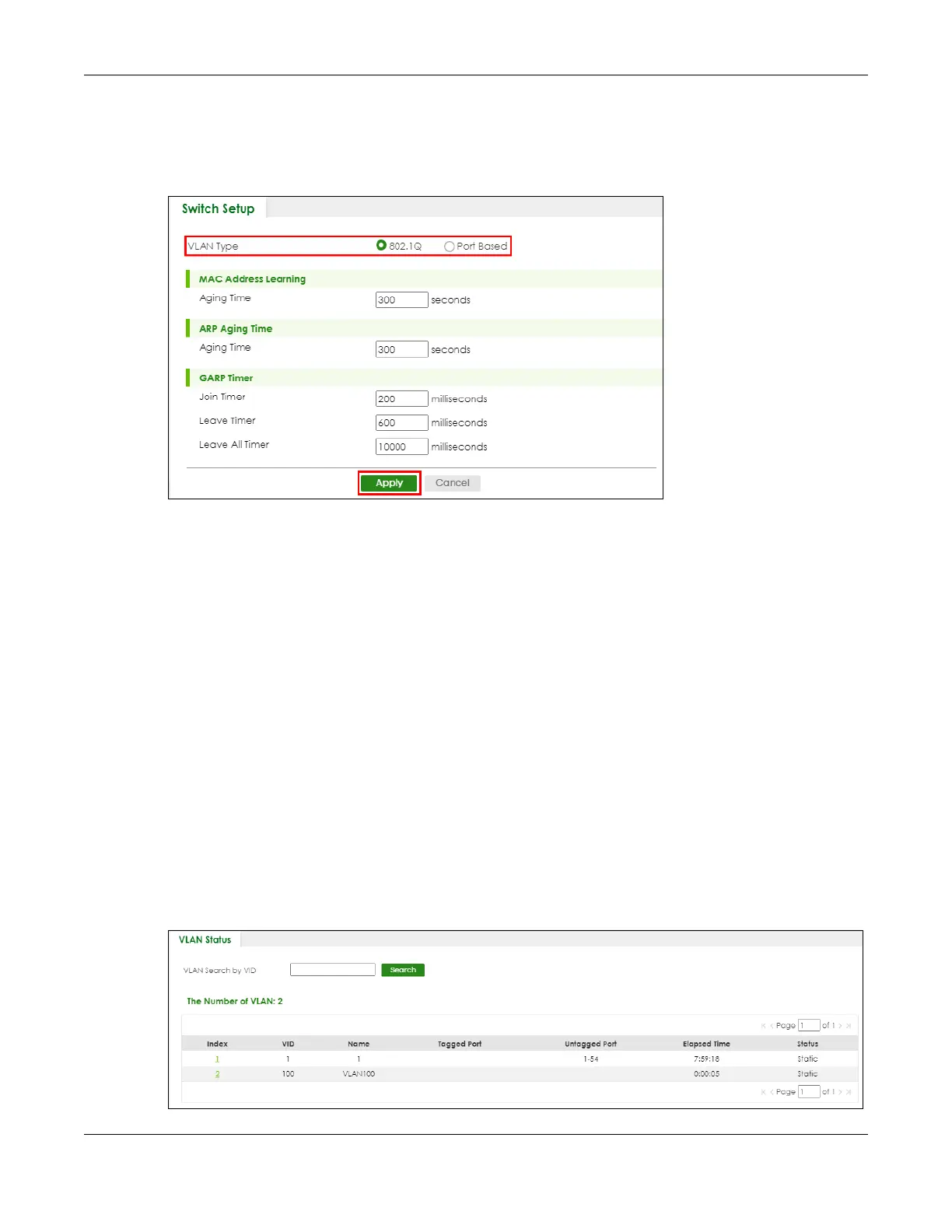

Figure 210 SYSTEM > Switch Setup: Select VLAN Type
802.1Q Static VLAN
Make sure 802.1Q is selected in the SYSTEM > Switch Setup screen.
Use a static VLAN to decide whether an incoming frame on a port should be
• sent to a VLAN group as normal depending on its VLAN tag.
• sent to a group whether it has a VLAN tag or not.
• blocked from a VLAN group regardless of its VLAN tag.
You can also tag all outgoing frames (that were previously untagged) from a port with the specified
VID.
49.3 VLAN Status
Use this screen to view and search all static VLAN groups. Click SWITCHING > VLAN > VLAN Status from
the navigation panel to display the screen as shown next.
Figure 211 SWITCHING > VLAN > VLAN Status
