Chapter 3 Hardware Panels
GS1920v2 Series User’s Guide
44
3.2 Rear Panel

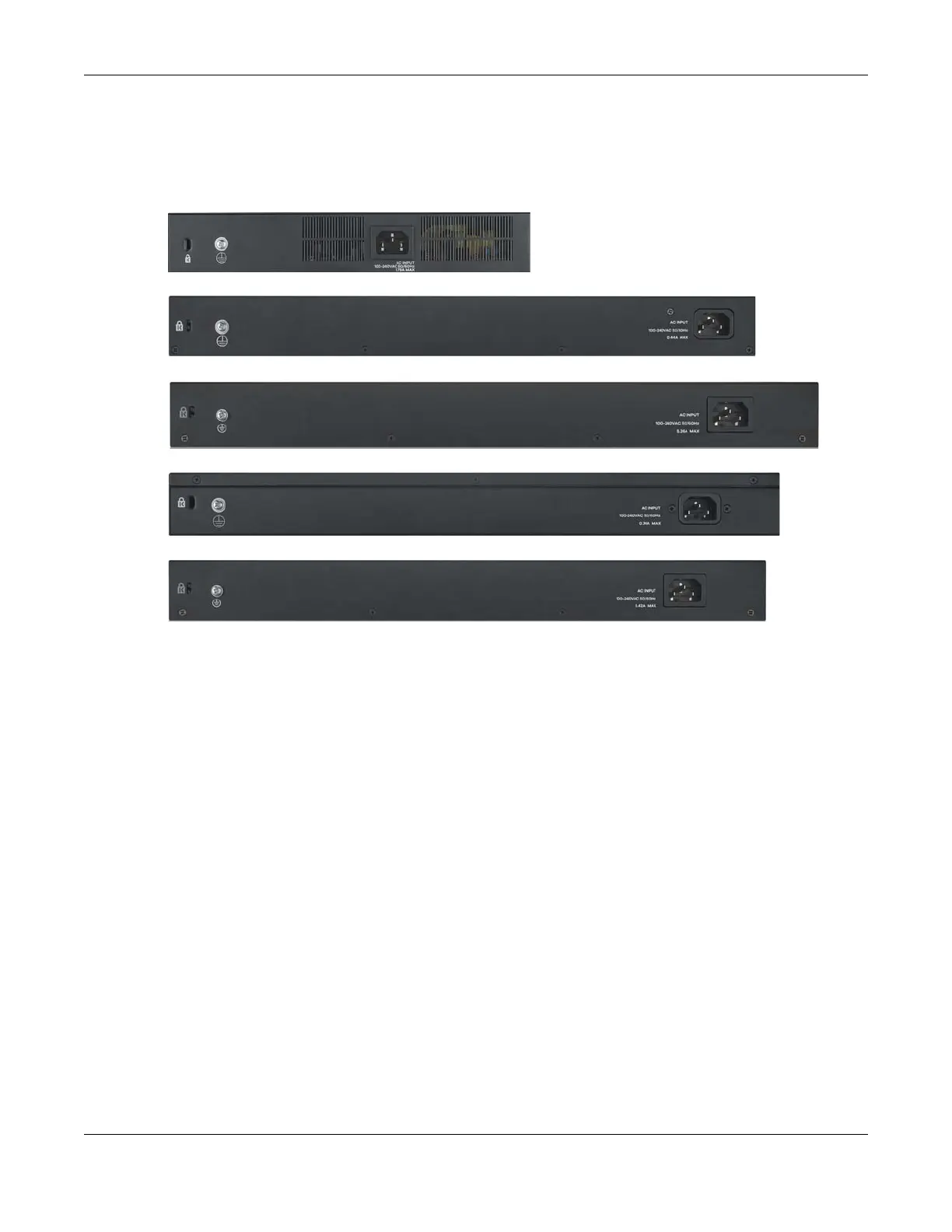

The following figures show the rear panels of the Switch. The rear panels contain:
Figure 23 Rear Panel: GS1920-8HPv2
Figure 24 Rear Panel: GS1920-24v2
Figure 25 Rear Panel: GS1920-24HPv2
Figure 26 Rear Panel: GS1920-48v2
Figure 27 Rear Panel: GS1920-48HPv2
3.2.1 Grounding
Grounding is a safety measure to direct excess electric charge to the ground. It prevents damage to
the Switch, and protects you from electrocution. Use the grounding screw on the rear panel and the
ground wire of the AC power supply to ground the Switch.
The grounding terminal and AC power ground where you install the Switch must follow your country’s
regulations. Qualified service personnel must ensure the building’s protective earthing terminals are
valid terminals.
Installation of Ethernet cables must be separate from AC power lines. To avoid electric surge and
electromagnetic interference, use a different electrical conduit or raceway (tube/trough or enclosed
conduit for protecting electric wiring) that is 15 cm apart, or as specified by your country’s electrical
regulations.
Any device that is located outdoors and connected to this product must be properly grounded and
surge protected. To the extent permissible by your country’s applicable law, failure to follow these
guidelines could result in damage to your Switch which may not be covered by its warranty.
Note: The specification for surge or ESD protection assumes that the Switch is properly
grounded.
1 Remove the M4 ground screw from the Switch’s rear panel.
