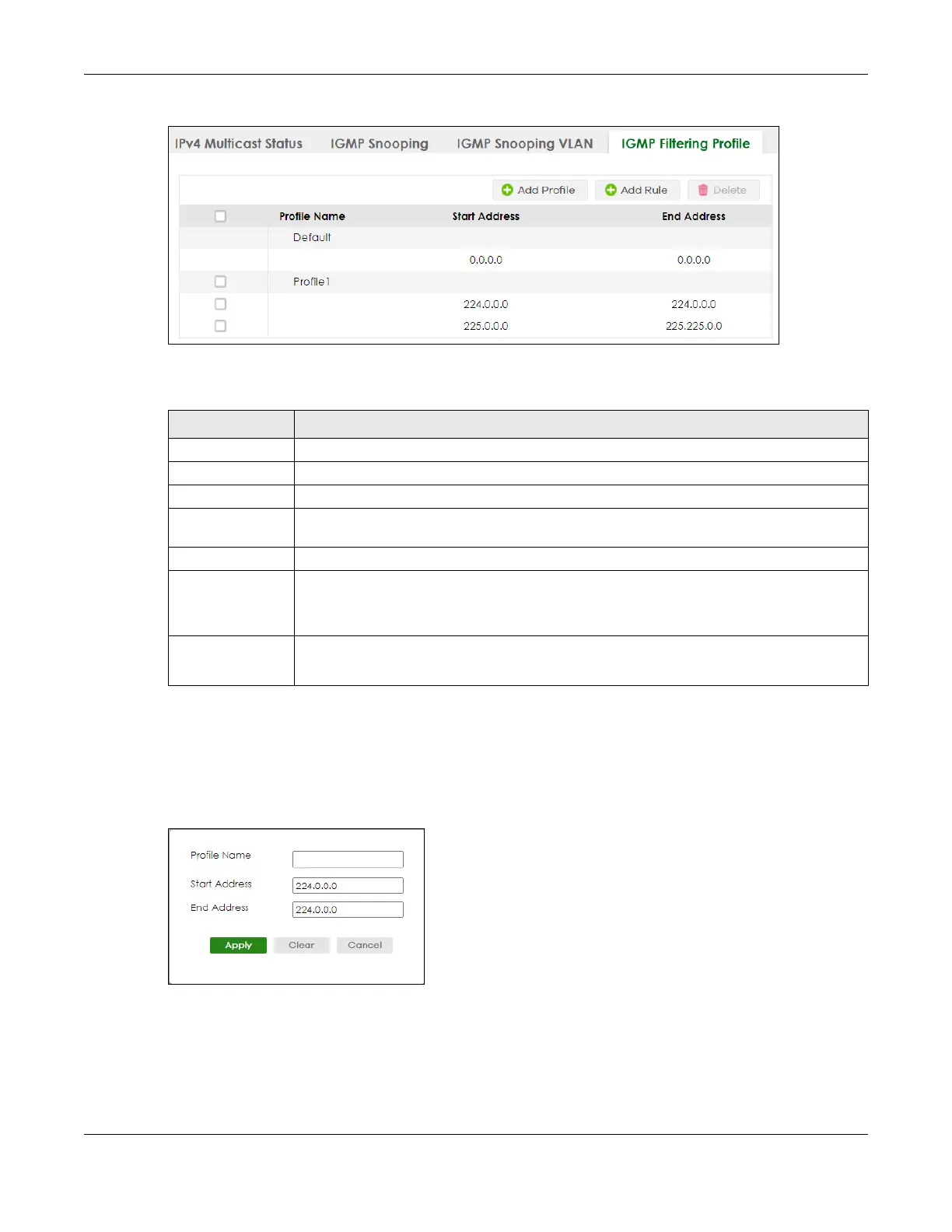

Figure 156 SWITCHING > Multicast > IPv4 Multicast > IGMP Filtering Profile
The following table describes the labels in this screen.
39.5.1 Add IGMP Filtering Profile
To access this screen, click the Add Profile button in the SWITCHING > Multicast > IPv4 Multicast > IGMP
Filtering Profile screen.
Figure 157 SWITCHING > Multicast > IPv4 Multicast > IGMP Filtering Profile > Add Profile
Table 108 SWITCHING > Multicast > IPv4 Multicast > IGMP Filtering Profile
LABEL DESCRIPTION
Profile Name This field displays the descriptive name of the profile.
Start Address This field displays the start of the multicast address range.
End Address This field displays the end of the multicast address range.
Select an entry’s check box to select a specific entry. Otherwise, select the check box in the
table heading row to select all entries.
Add Profile Click this to add a new IGMP filtering profile.
Add Rule Click Add Rule to add a new rule and specify the profile it belongs to in the Add Rule screen.
You can also select a profile entry and click Add Rule to add an additional rule for the
selected profile.
Delete Select a profile and click Delete to remove the selected profile and the accompanying rules.
Select a rule from a profile and click Delete to remove the selected rule.
