Chapter 54 Static Route
GS1920v2 Series User’s Guide
340
CHAPTER 54
Static Route
54.1 Static Routing Overview
This chapter shows you how to configure static routes.
The Switch uses IP for communication with management computers, for example using HTTP, Telnet, SSH,
or SNMP. Use IP static routes to have the Switch respond to remote management stations that are not
reachable through the default gateway. The Switch can also use static routes to send data to a server
or device that is not reachable through the default gateway, for example when sending SNMP traps or
using ping to test IP connectivity.

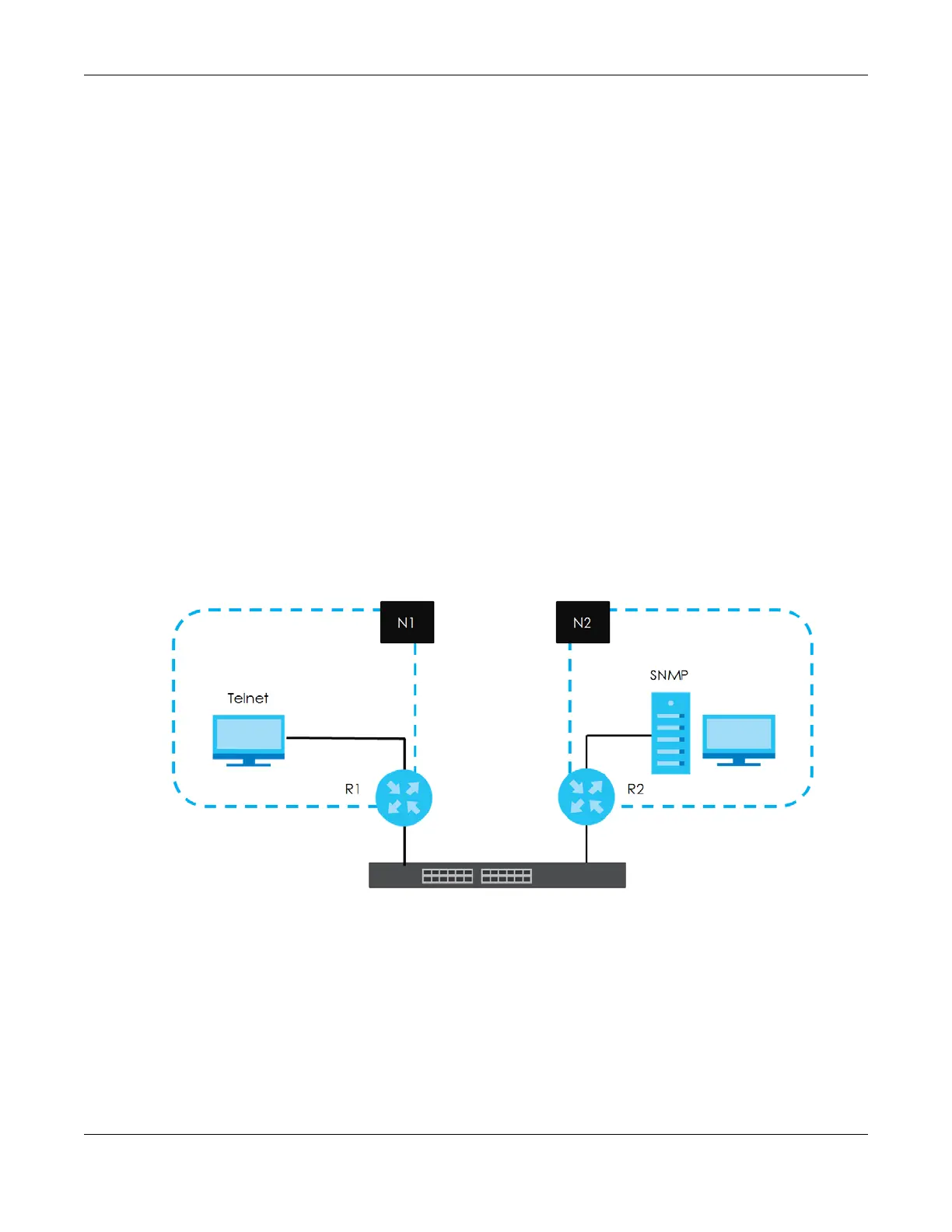

This figure shows a Telnet session coming in from network N1. The Switch sends reply traffic to default
gateway R1 which routes it back to the manager’s computer. The Switch needs a static route to tell it to
use router R2 to send traffic to an SNMP trap server on network N2.
Figure 250 Static Routing Overview
54.1.1 What You Can Do
Use the IPv4 Static Route screen (Section 54.2 on page 340) to configure and enable an IPv4 static route.
54.2 IPv4 Static Route
Click NETWORKING > Static Routing > IPv4 Static Route to display the screen as shown.
