39.13 MVR Group Setup
All source ports and receiver ports belonging to a multicast group can receive multicast data sent to this
multicast group.
Use this screen to view and configure MVR IP multicast group settings. Click SWITCHING > Multicast >
MVR > Group Setup to access this screen.
Note: A port can belong to more than one multicast VLAN. However, IP multicast group
addresses in different multicast VLANs cannot overlap.

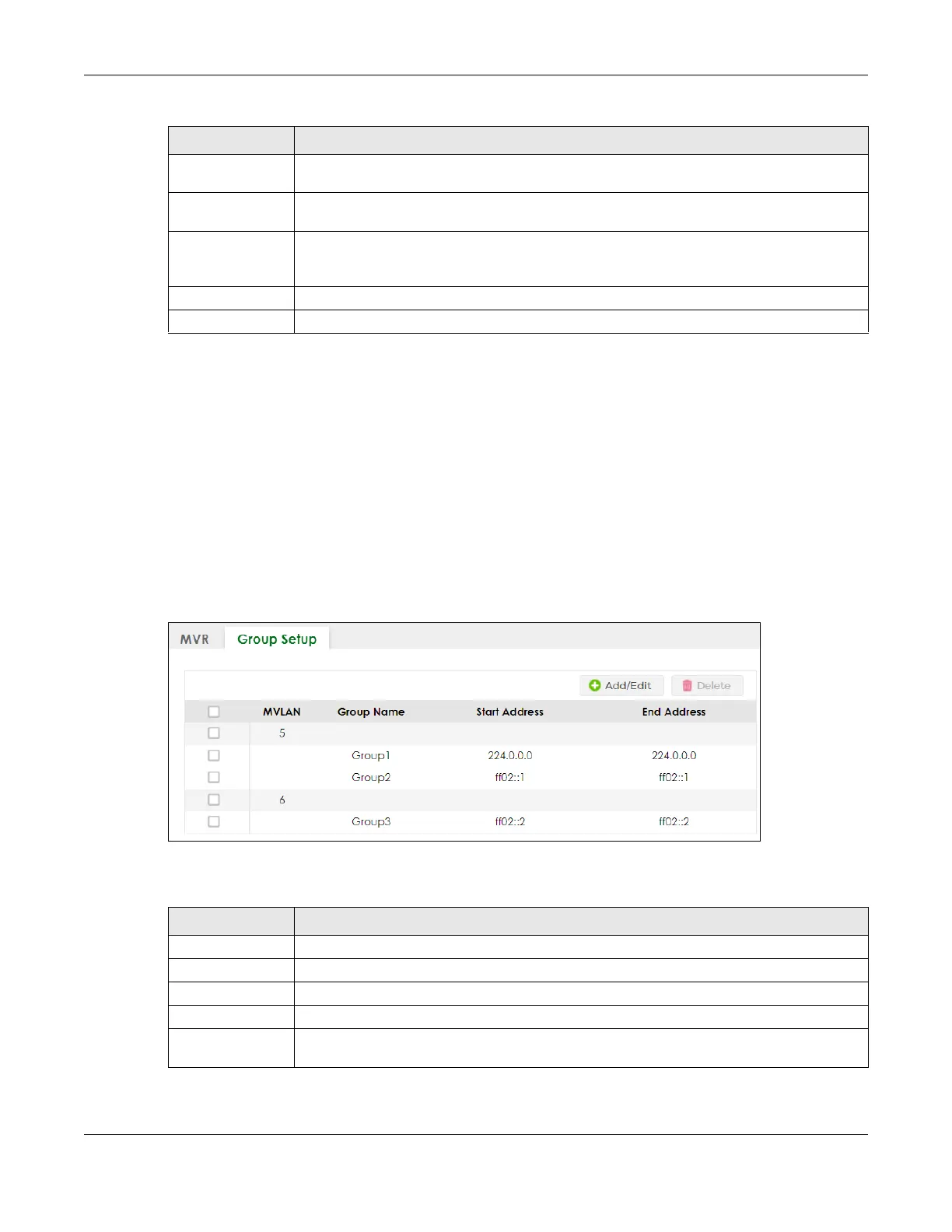

Figure 170 SWITCHING > Multicast > MVR > Group Setup
The following table describes the labels in this screen.
None Select this option to set the port not to participate in MVR. No MVR multicast traffic is sent or
received on this port.
Tagging Select this check box if you want the port to tag the VLAN ID in all outgoing frames
transmitted.
Apply Click Apply to save your changes to the Switch’s run-time memory. The Switch loses these
changes if it is turned off or loses power, so use the Save link on the top navigation panel to
save your changes to the non-volatile memory when you are done configuring.
Clear Click Clear to clear the fields to the factory defaults.
Cancel Click Cancel to not save the configuration you make and return to the last screen.
Table 121 SWITCHING > Multicast > MVR > Add/Edit (continued)
LABEL DESCRIPTION
Table 122 SWITCHING > Multicast > MVR > Group Setup
LABEL DESCRIPTION
MVLAN This field displays the multicast VLAN ID.
Group Name This field displays the descriptive name for this setting.
Start Address This field displays the starting IP address of the multicast group.
End Address This field displays the ending IP address of the multicast group.
Select an entry’s check box to select a specific entry. Otherwise, select the check box in the
table heading row to select all entries.
