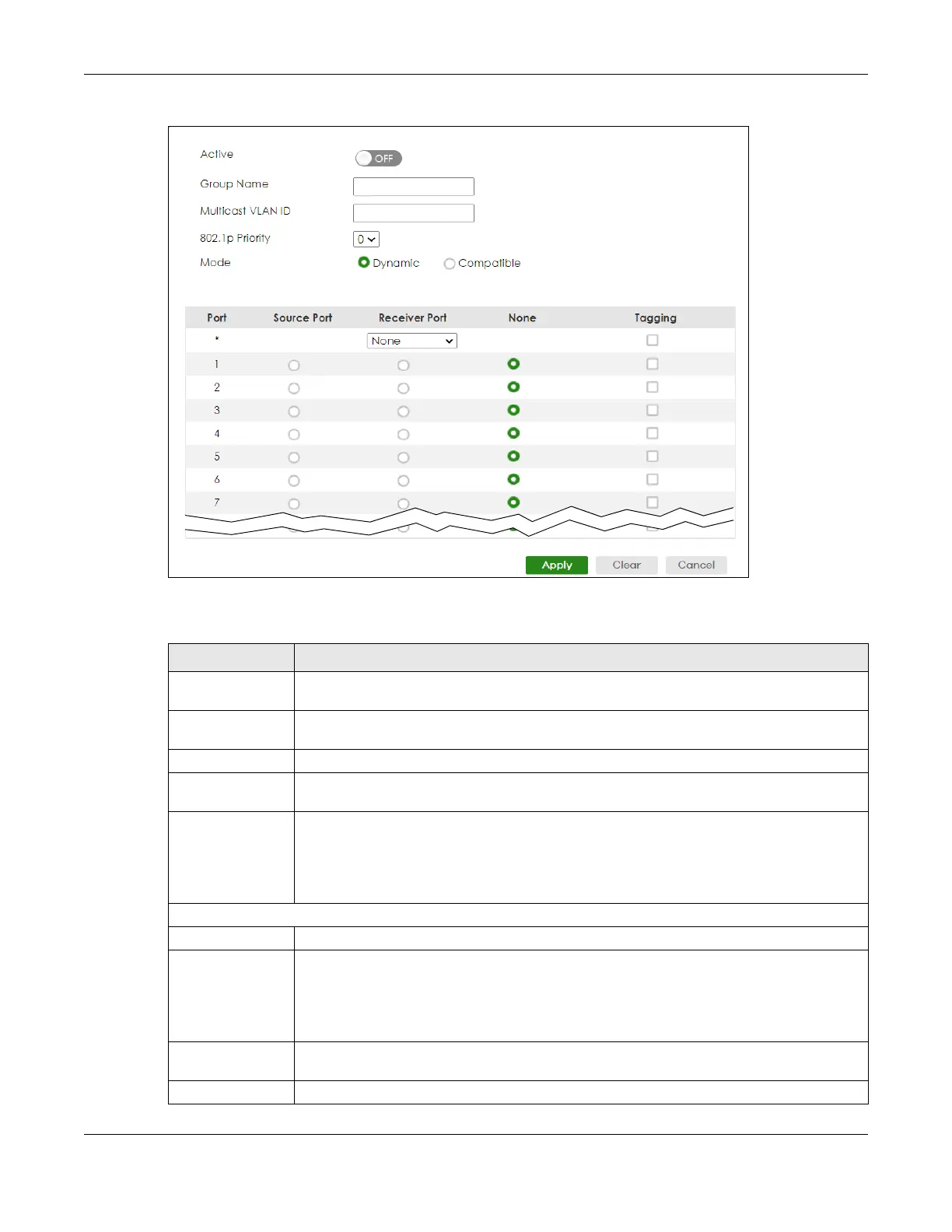

Figure 169 SWITCHING > Multicast > MVR > Add/Edit
The following table describes the related labels in this screen.
Table 121 SWITCHING > Multicast > MVR > Add/Edit
LABEL DESCRIPTION
Active Enable the switch button to enable MVR to allow one single multicast VLAN to be shared
among different subscriber VLANs on the network.
Group Name Enter a descriptive name (up to 32 printable ASCII characters except [ ? ], [ | ], [ ' ], [ " ], or [ ,
]) for identification purposes.
Multicast VLAN ID Enter the VLAN ID (1 to 4094) of the multicast VLAN.
802.1p Priority Select a priority level (0 – 7) with which the Switch replaces the priority in outgoing IGMP or
MLD control packets (belonging to this multicast VLAN).
Mode Specify the MVR mode on the Switch. Choices are Dynamic and Compatible.
Select Dynamic to send IGMP reports or MLD messages to all MVR source ports in the multicast
VLAN.
Select Compatible to set the Switch not to send IGMP reports or MLD messages.
Use this section to configure MVR settings on each port.
Port This field displays the port number on the Switch.
* Settings in this row apply to all ports.
Use this row only if you want to make some settings the same for all ports. Use this row first to
set the common settings and then make adjustments on a port-by-port basis.
Changes in this row are copied to all the ports as soon as you make them.
Source Port Select this option to set this port as the MVR source port that sends and receives multicast
traffic. All source ports must belong to a single multicast VLAN.
Receiver Port Select this option to set this port as a receiver port that only receives multicast traffic.
