Chapter 21 IP Setup
GS1920v2 Series User’s Guide
121

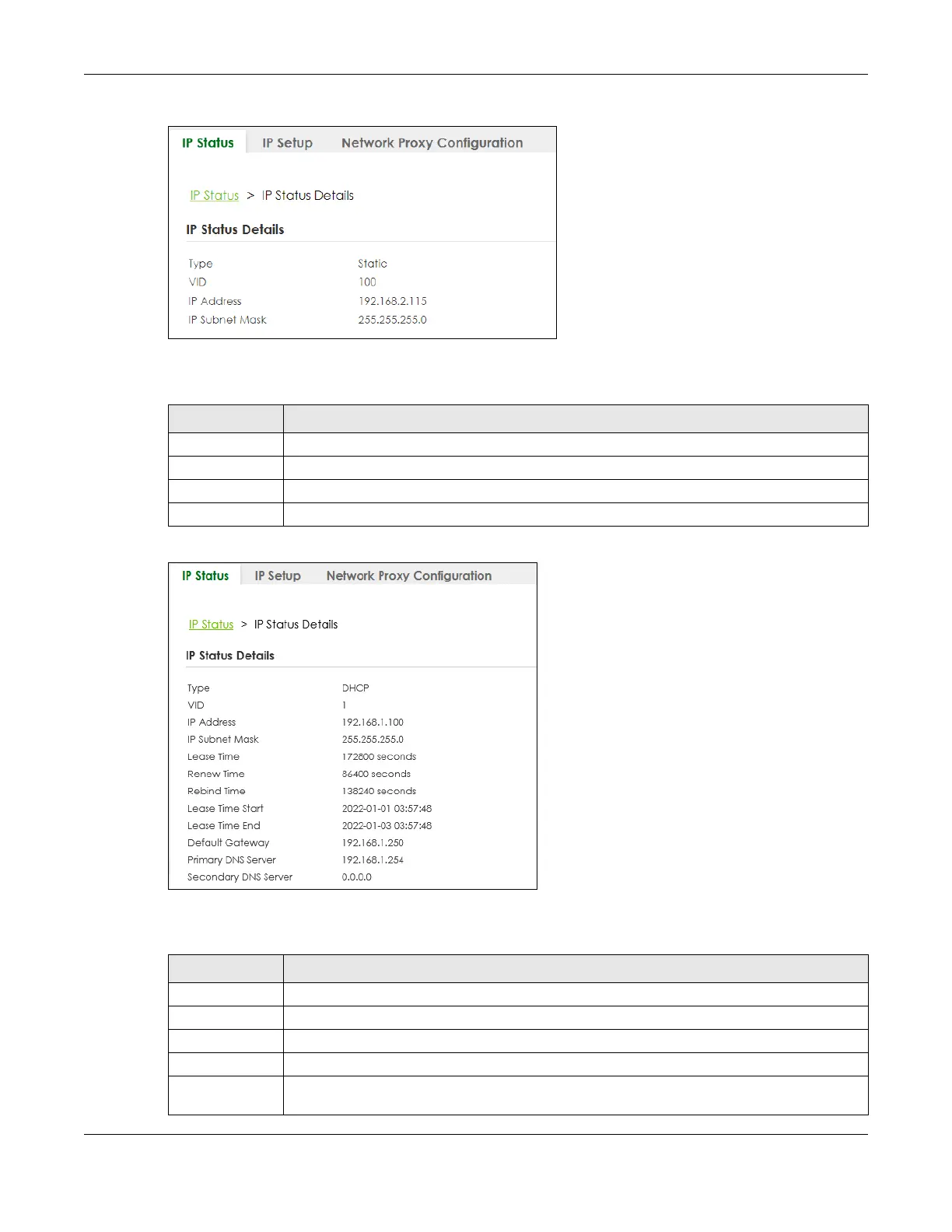

Figure 76 SYSTEM > IP Setup > IP Status > IP Status Details: Static
The following table describes the labels in this screen.
Figure 77 SYSTEM > IP Setup > IP Status > IP Status Details: DHCP
The following table describes the labels in this screen.
Table 32 SYSTEM > IP Setup > IP Status > IP Status Details: Static
LABEL DESCRIPTION
Type This shows the IP address is manually assigned (Static).
VID This is the VLAN identification number to which an IP routing domain belongs.
IP Address This is the IP address of your Switch in dotted decimal notation for example 192.168.1.1.
IP Subnet Mask This is the IP subnet mask of your Switch in dotted decimal notation for example 255.255.255.0.
Table 33 SYSTEM > IP Setup > IP Status > IP Status Details: DHCP
LABEL DESCRIPTION
Type This shows the IP address is dynamically assigned from a DHCP server (DHCP).
VID This is the VLAN identification number to which an IP routing domain belongs.
IP Address This is the IP address of your Switch in dotted decimal notation for example 192.168.1.1.
IP Subnet Mask This is the IP subnet mask of your Switch in dotted decimal notation for example 255.255.255.0.
Lease Time This displays the length of time in seconds that this interface can use the current dynamic IP
address from the DHCP server.
