Chapter 31 Link Layer Discovery Protocol (LLDP)
GS1920v2 Series User’s Guide
172

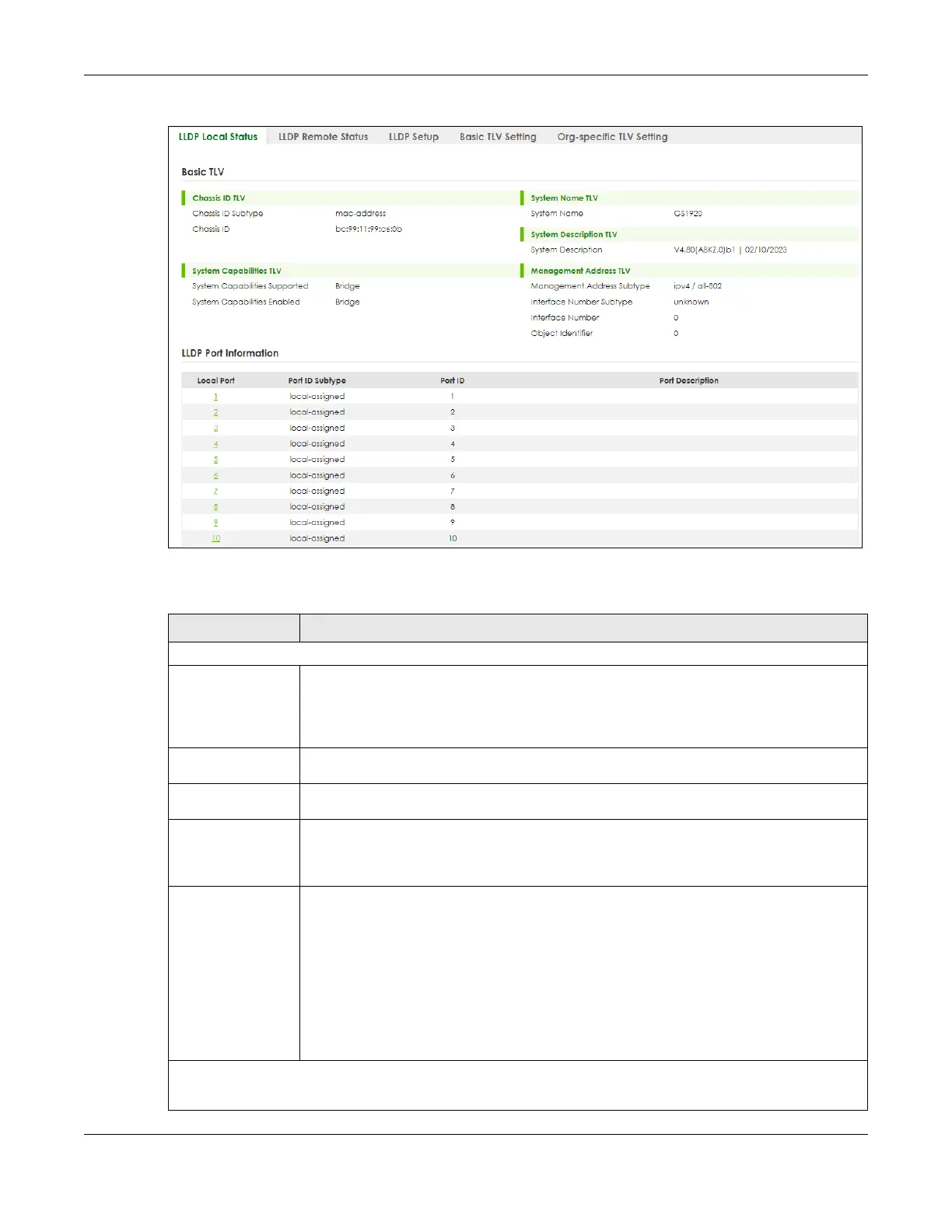

Figure 117 PORT > LLDP > LLDP > LLDP Local Status
The following table describes the labels in this screen.
Table 77 PORT > LLDP > LLDP > LLDP Local Status
LABEL DESCRIPTION
Basic TLV
Chassis ID TLV This displays the chassis ID of the local Switch, that is the Switch you are configuring. The
chassis ID is identified by the chassis ID subtype.
• Chassis ID Subtype – This displays how the chassis of the Switch is identified.
• Chassis ID – This displays the chassis ID of the local Switch.
System Name
TLV
System Name – This shows the host name of the Switch.
System
Description TLV
System Description – This shows the firmware version of the Switch.
System
Capabilities TLV
This shows the System Capabilities enabled and supported on the local Switch.
• System Capabilities Supported – Bridge
• System Capabilities Enabled – Bridge
Management
Address TLV
The Management Address TLV identifies an address associated with the local LLDP agent
that may be used to reach higher layer entities to assist discovery by network management.
The TLV may also include the system interface number and an object identifier (OID) that are
associated with this management address.
This field displays the Management Address settings on the specified ports.
• Management Address Subtype – ipv4 or all-802
• Interface Number Subtype – unknown
• Interface Number – 0 (not supported)
• Object Identifier – 0 (not supported)
LLDP Port Information
This displays the local port information.
To Next Page
