Chapter 2 Hardware Installation and Connection
GS1920v2 Series User’s Guide
37
4 Make sure the screws are fastened well enough to hold the weight of the Switch with the connection
cables.

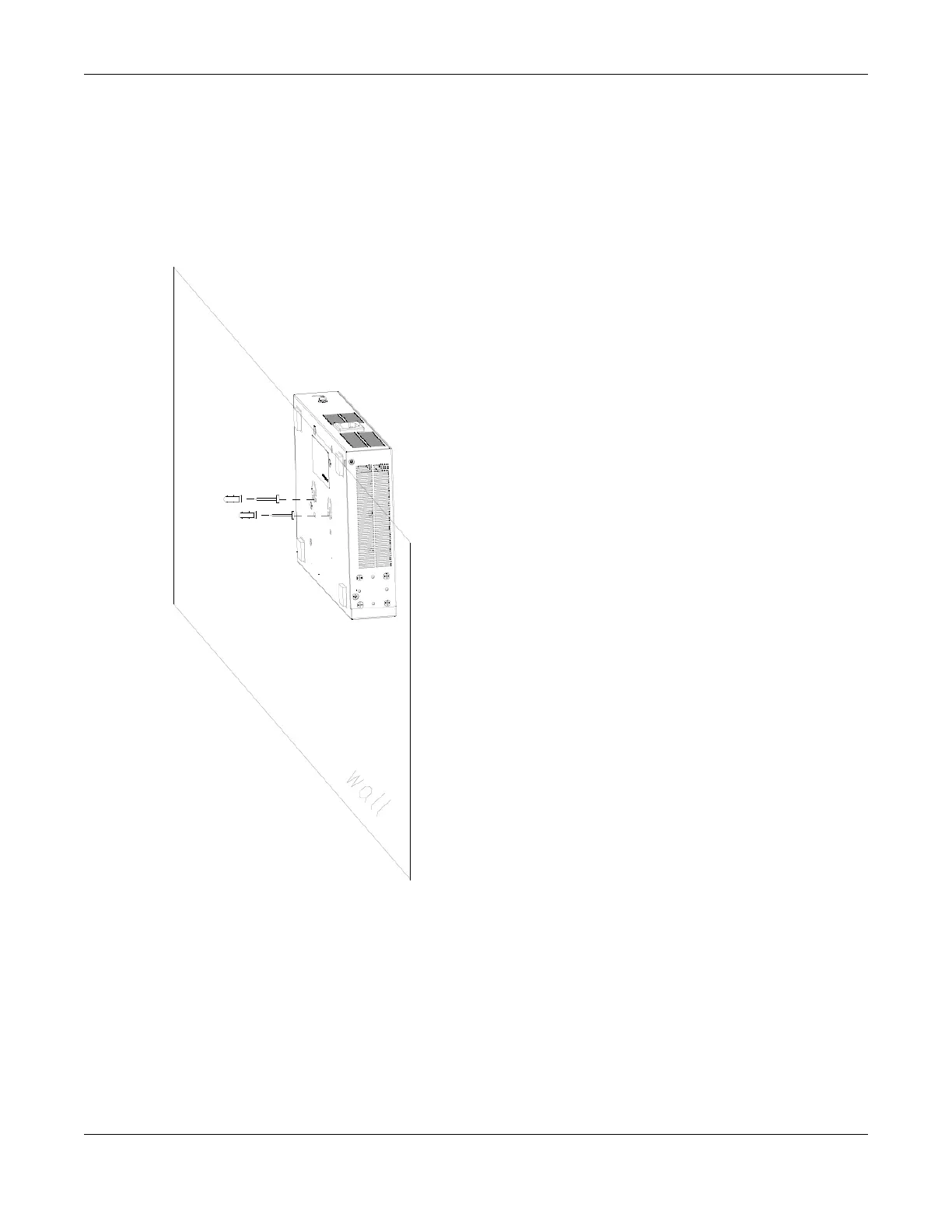

5 Align the holes on the back of the Switch with the screws on the wall. Hang the Switch on the screws.
Note: Make sure there is enough clearance between the wall and the Switch to allow
ventilation.
WARNING! The Switch should be wall-mounted horizontally, and make sure
the front panel is facing down. The Switch's side panels with ventilation slots
should not be facing up or down as this position is less safe.
