DRO mode | Teach position
4

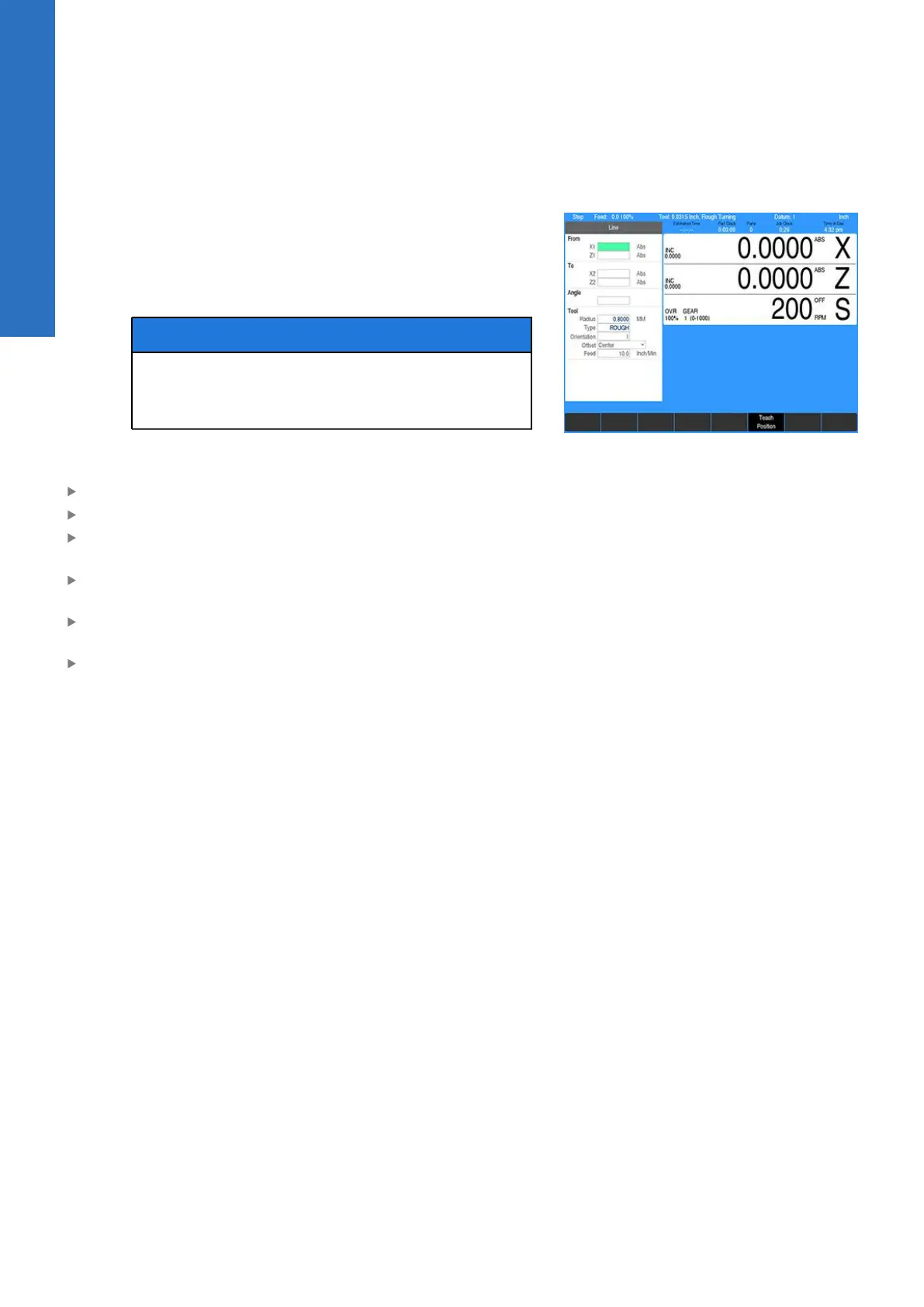

4.7 Teach position
Whenever X or Z coordinates are being entered, the Teach Position
soft key will appear, enabling the control to be in teach mode and to
use the current coordinate(s). The control will base each coordinate
on the current absolute position, and enter that position into the
field that is highlighted.
NOTICE
While programming, the control can switch between
the DRO and PGM screens without losing the program
that is either being created, or being edited.
To teach the control a coordinate while programming a turning
function:
Use the Arrow keys to highlight the X or Z axis fields
Move your tool to the position you want to teach
Press the Teach Position soft key to enter that location then
press the ENTER key
The numeric keypad and calculator functions can be used to
adjust the number
Repeat the steps for each axis and each location that will be
used to teach the control
Press USE to accept the dialogue or press CANCEL to cancel the
dialogue
54
ACU-RITE | TURNPWR | User's Manual | 08/2020
