4 Parts and Materials
Solvent Cabinet and Bottle-Head Assembly
Table 16 Solvent cabinet and bottle head assemblies
Item Description Part Number
Solvent cabinet assembly includes items 6, 7, 8 5062-8581
1 Solvent tubing 5 m 5062-2483
2 Tube screw (pack of 10) 5063-6599
3 Ferrules with lock ring (pack of 10) 5063-6598
4Bottle amber
Bottle transparent
9301-1450
9301-1420
5 Solvent inlet filter (SST) 01018-60025
6 Leak pan, solvent cabinet 5042-1307
7 Front panel, solvent cabinet 5062-8580
8 Name plate, Agilent 1100 5042-1381
Bottle-head assembly includes items 1, 2, 3, 5
*
* The assy comes with a glass solvent inlet filter. Remove and replace it with the SST solvent inlet frit
(01018-60025)
G1311-60003

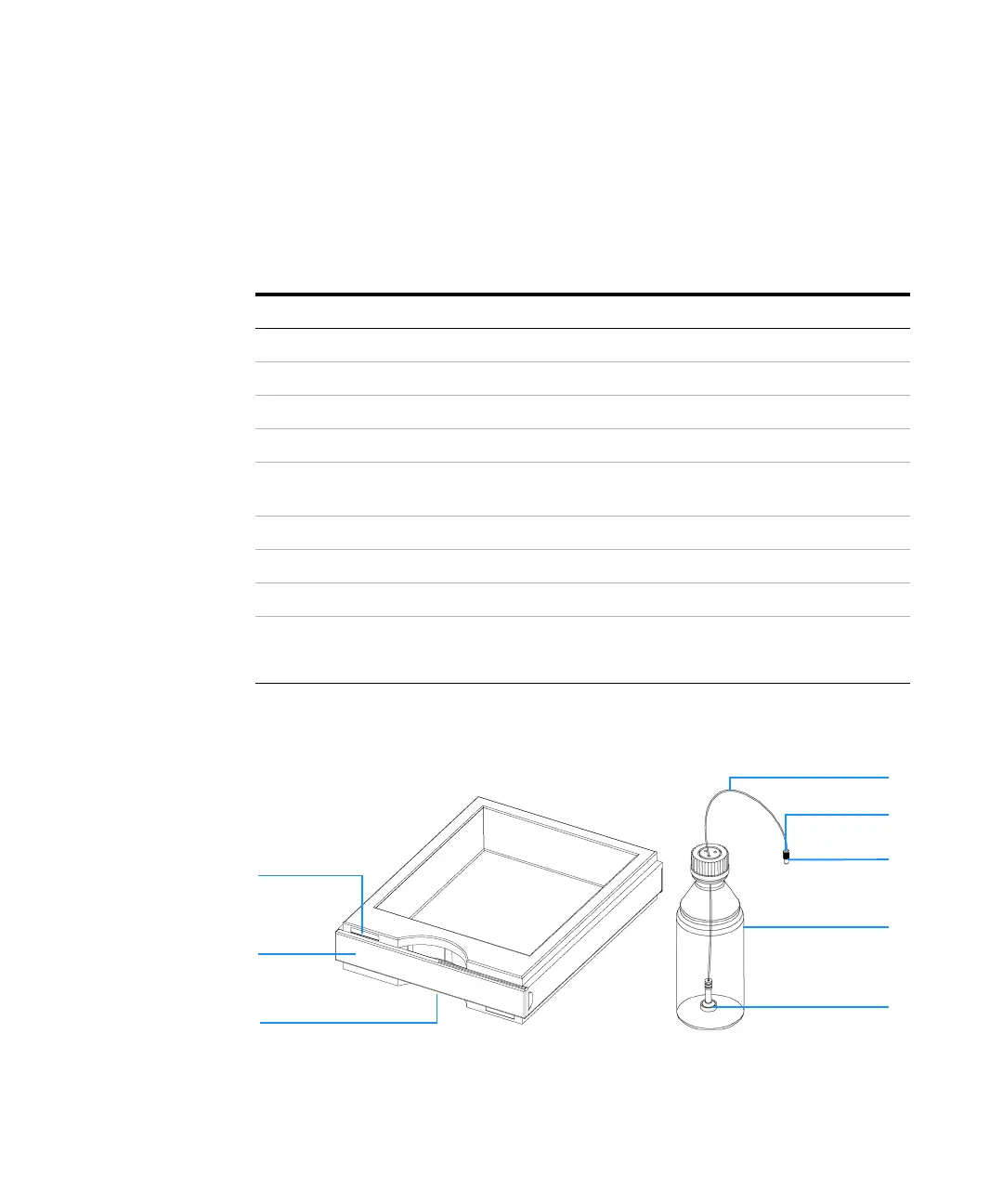

Figure 26 Solvent cabinet and bottle head assembly
7
3
5
4
1
8
2
6
