Agilent Technologies 1100 Series Service Manual

236 1100 Series Nano Pump Service Manual
6 Control Module Screens for the Nano Pump

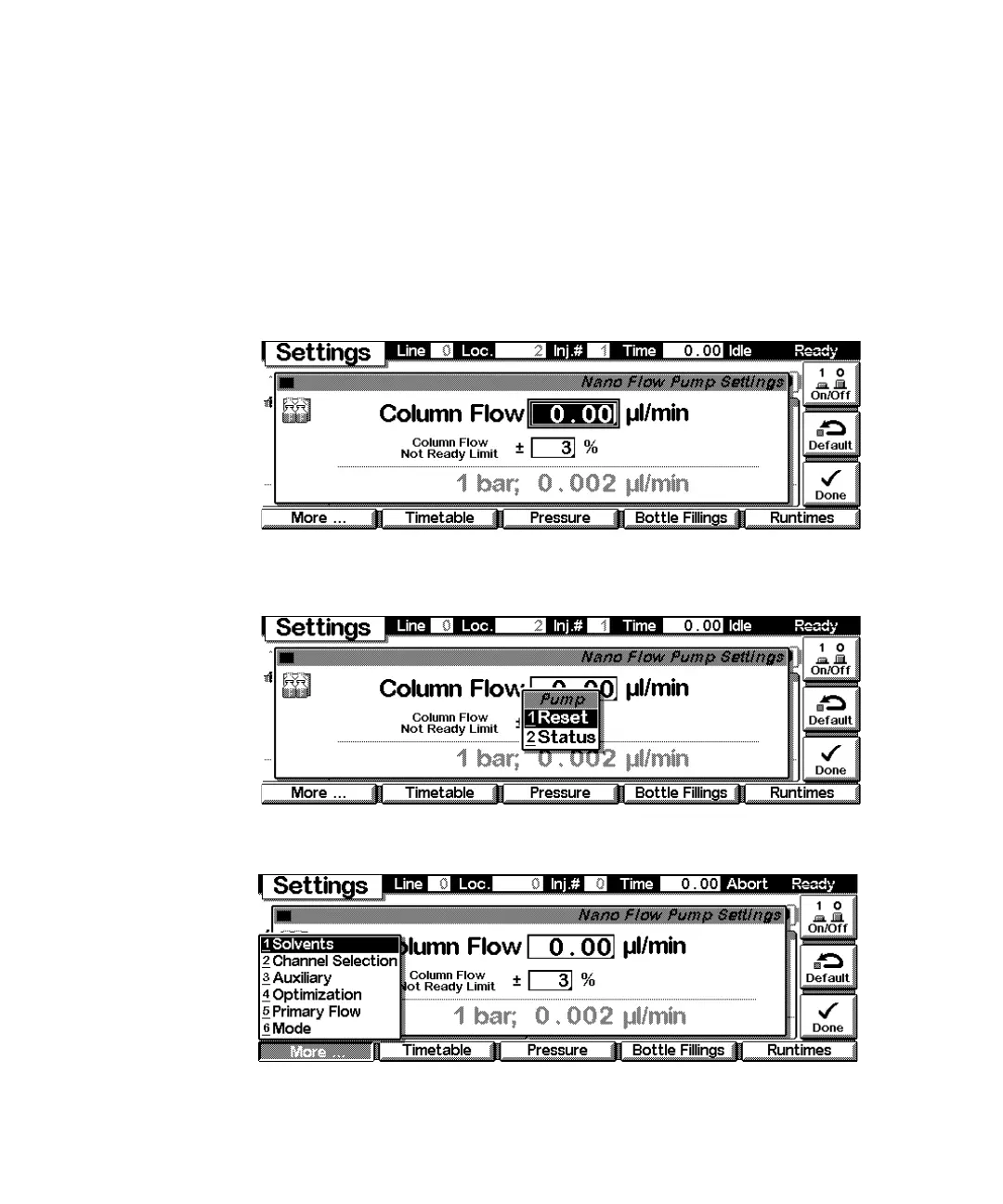

Settings screens
Settings In the Settings screen you can change the pump parameters. Here, you can
enter values for the column flow/not ready limit. In addition, you have access
to a different set of parameters available through the F1-5 navigation-keys.
The F7-key (Default) resets the pump to default values. F8 (On/Off) opens a
window to turn on the pump.Changes must be acknowledged with F6 (Done).
Use the m-key for the context sensitive menu. Reset will load the pump default
parameters. The Status command pulls up the module specific setup screen.
Use the F1-key (More) to enter special pump setpoints:
