Agilent Technologies 1100 Series Service Manual

184 1100 Series Nano Pump Service Manual
4 Parts and Materials

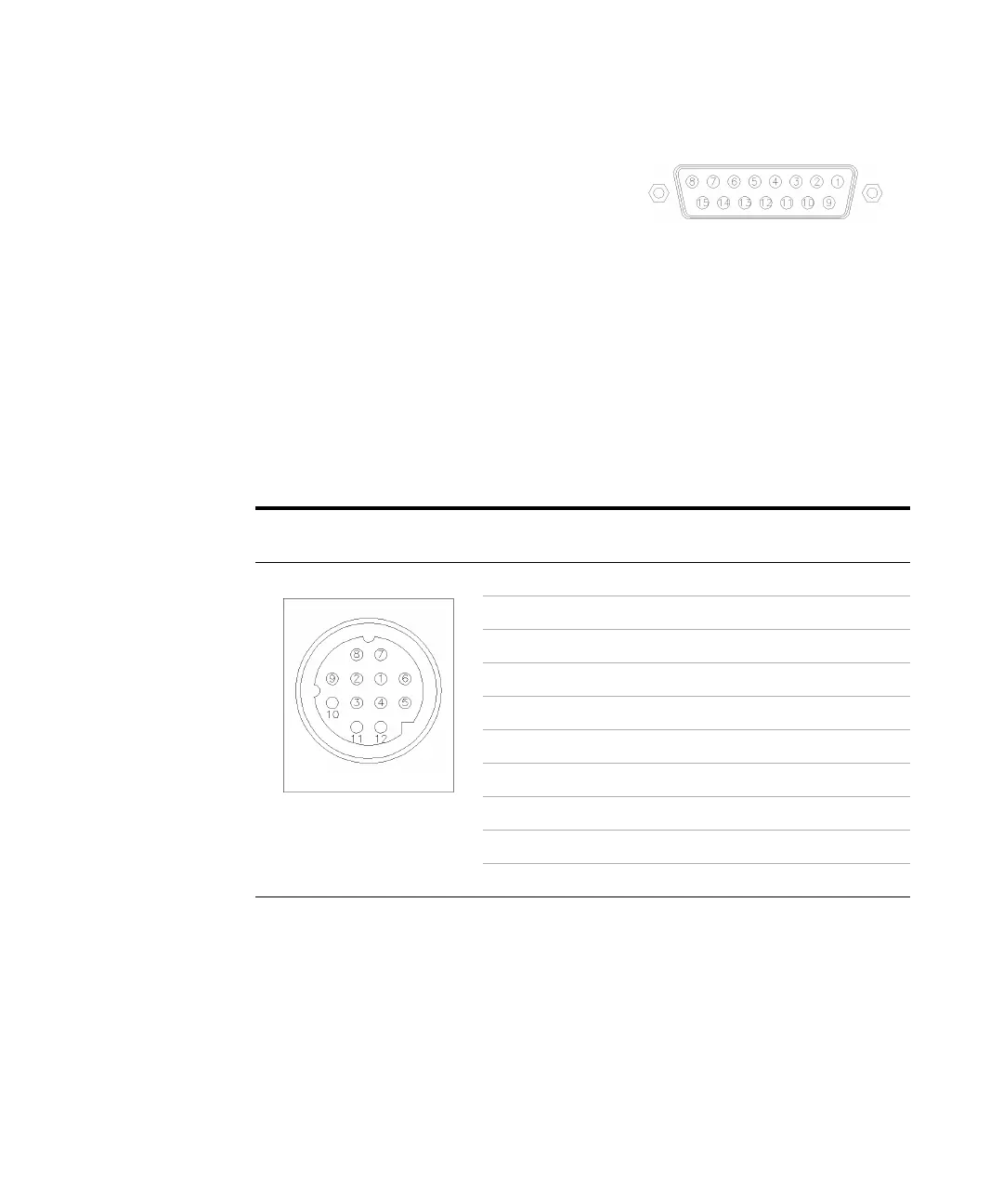

BCD Cables
One end of these cables provides a 15-pin BCD connector to be connected to
the Agilent 1100 Series modules. The other end depends on the instrument to
be connected to.
Table 41 Agilent 1100 to 3392/3 Integrators
NOTE
The BCD output for the well plate sampler does not work with the integrators 3392/3/6.
Connector
18584-60510
Pin
3392/3
Pin
Agilent 1100
Signal Name BCD Digit
10 1 BCD 5 20
11 2 BCD 7 80
33BCD 640
94BCD 410
7 5 BCD 0\ 1
56BCD 38
12 7 BCD 2 4
48BCD 12
1 9 Digital ground
215+5VLow
6 - Key
