122 1100 Series Nano Pump Service Manual
3 Repairing the Pump
Exchanging the Pump Seals and Seal Wear-in Procedure
When required:
• Seals leaking, if indicated by the results of
the leak test (Check both pump heads
individually!)
Tools required:
• 3-mm hexagonal key
• 4-mm hexagonal key
• 1/4 inch wrench
Parts required:
• Seals (pack of 2) 5063-6589 (standard) or
0905-1420 (for normal phase application)
For the seal wear-in procedure:
• Restriction capillary (5022-2159)

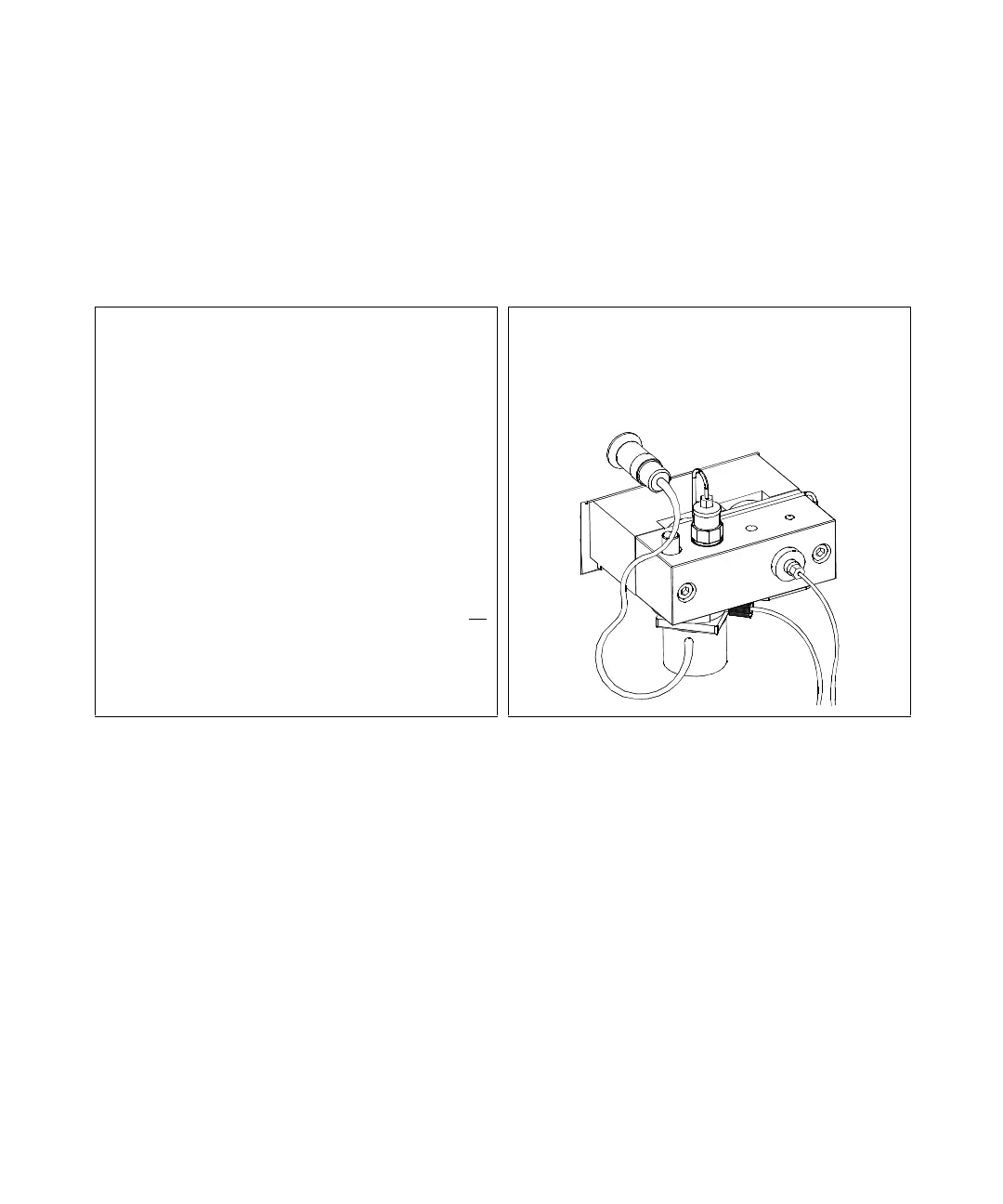

1 Disassemble the pump head assembly of the leaky
pump head (see “Removing and Disassembling the
Pump Head Assembly” on page 120).
