166 1100 Series Nano Pump Service Manual
4 Parts and Materials
Flow Sensor Assembly
Table 20 Flow Sensor Assembly
Item Description Part Number
1 Nanoflow sensor assembly G1376-60004
EMPV to flow sensor capillary (nanoflow sensor) G1375-87321
FS to inj valve cap (350 mm, 25 µm) for nanoflow sensor
FS to inj valve cap (550 mm, 25 µm) for nanoflow sensor
G1375-87322
G1375-87323

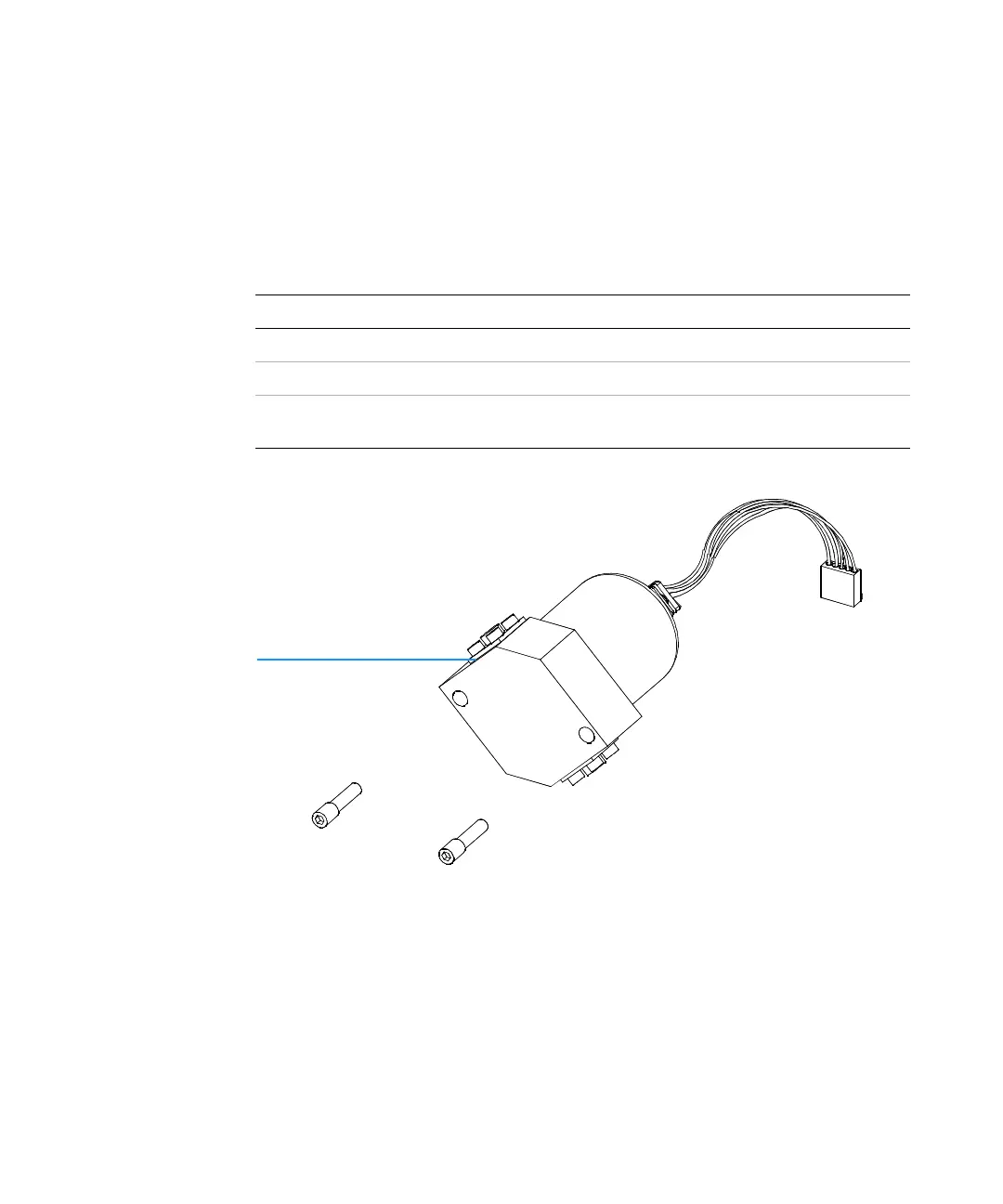

Figure 30 Flow Sensor Assembly
1
