Agilent Technologies 1100 Series Service Manual

228 1100 Series Nano Pump Service Manual
5 Introduction to the Nano Pump
The Main Power Supply Assembly
The main power supply comprises a closed assembly (no onsite repair
possibility).
The power supply provides all DC voltages used in the module except for the
voltages supplied by the lamp power supply to the deuterium and tungsten
lamps in the detectors. The line voltage can vary in a range from 100 240 volts
AC ± 10 % and needs no manual setting.
To disconnect the instrument from line, unplug the power cord. The power
supply still uses some power, even if the power switch on the front panel is
turned off.

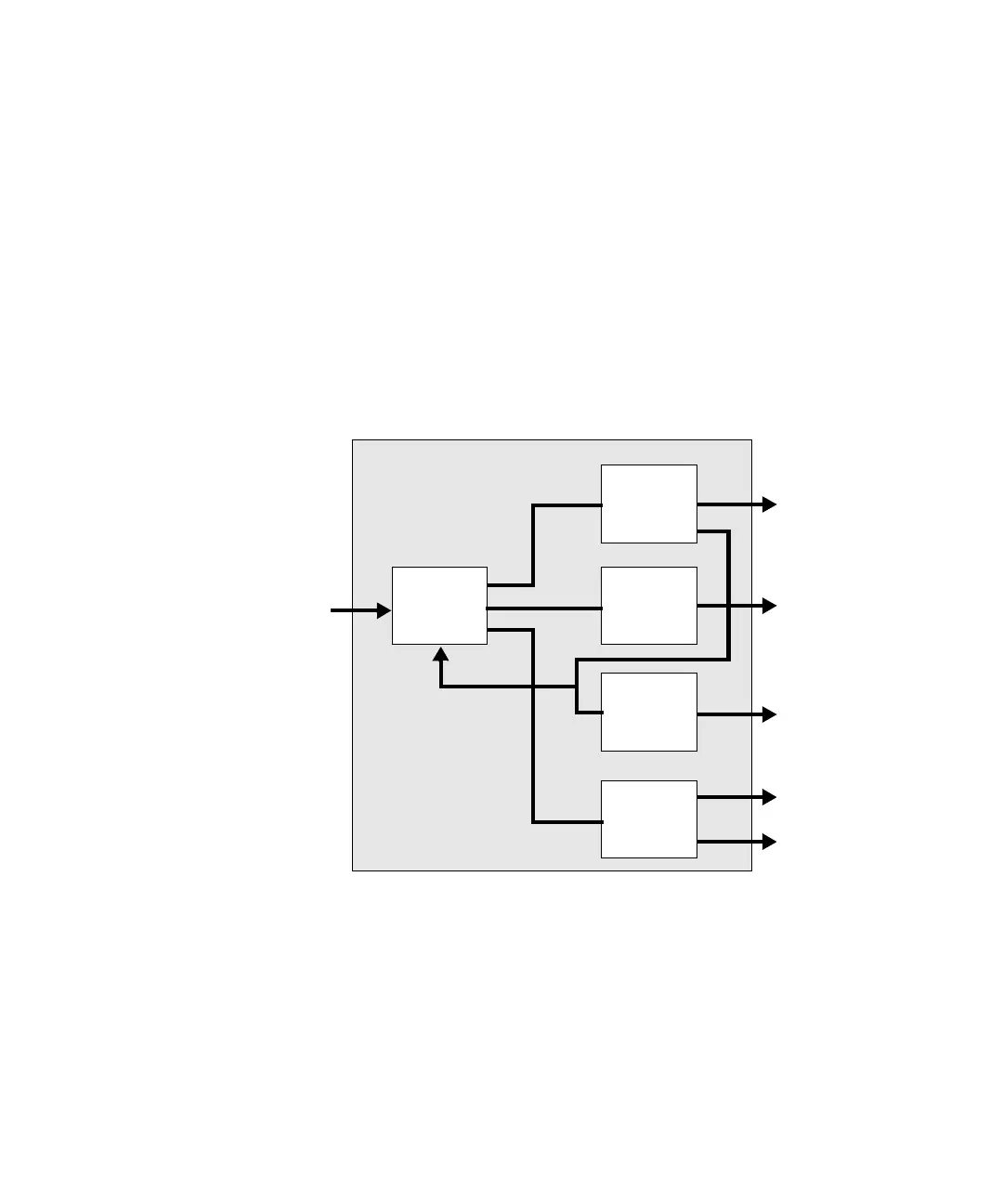

Figure 49 Main Power Supply (MPS) Block diagram
primary
circuits
+24 V
supply
+5 V
switching
regulator
linear
voltage
regulators
+12 V
supply
floating
sense
MPS
Line
voltage
+36 V / 2.5 A (*)
+24 V / 4.5 A (*)
+5 V / 3 A
+15 V /.3 A
-15 V /.3 A
(*) total power consumption on +36 V and +24 V must not exceed 107 watts.
