1100 Series Nano Pump Service Manual 177
Parts and Materials 4

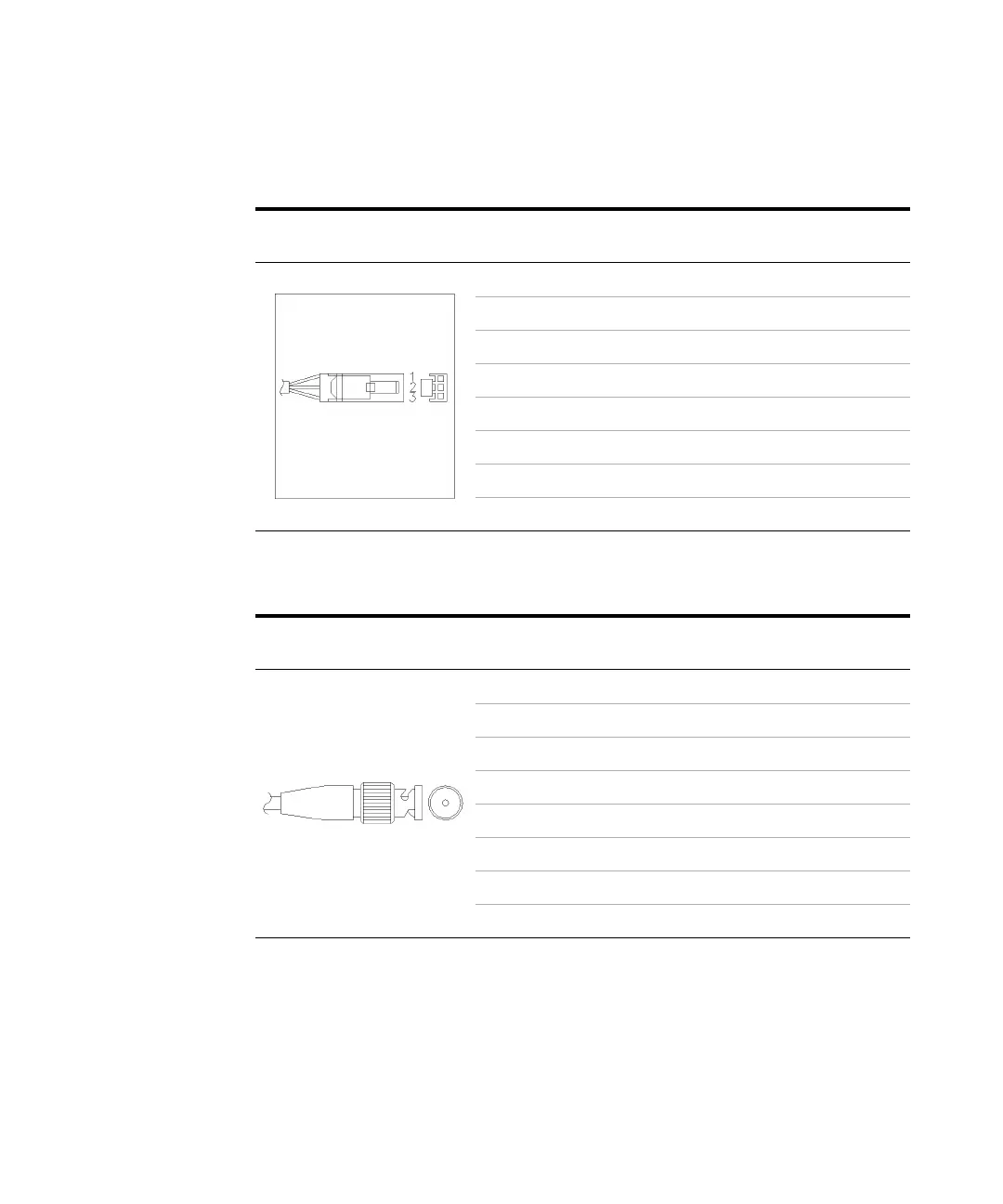

Table 30 Agilent 1100 to 3394/6 Integrators
Table 31 Agilent 1100 to BNC Connector
Connector
35900-60750
Pin
3394/6
Pin
Agilent 1100
Signal Name
1 Not connected
2 Shield Analog -
3CenterAnalog +
Connector
8120-1840
Pin
BNC
Pin
Agilent 1100
Signal Name
Shield Shield Analog -
Center Center Analog +
