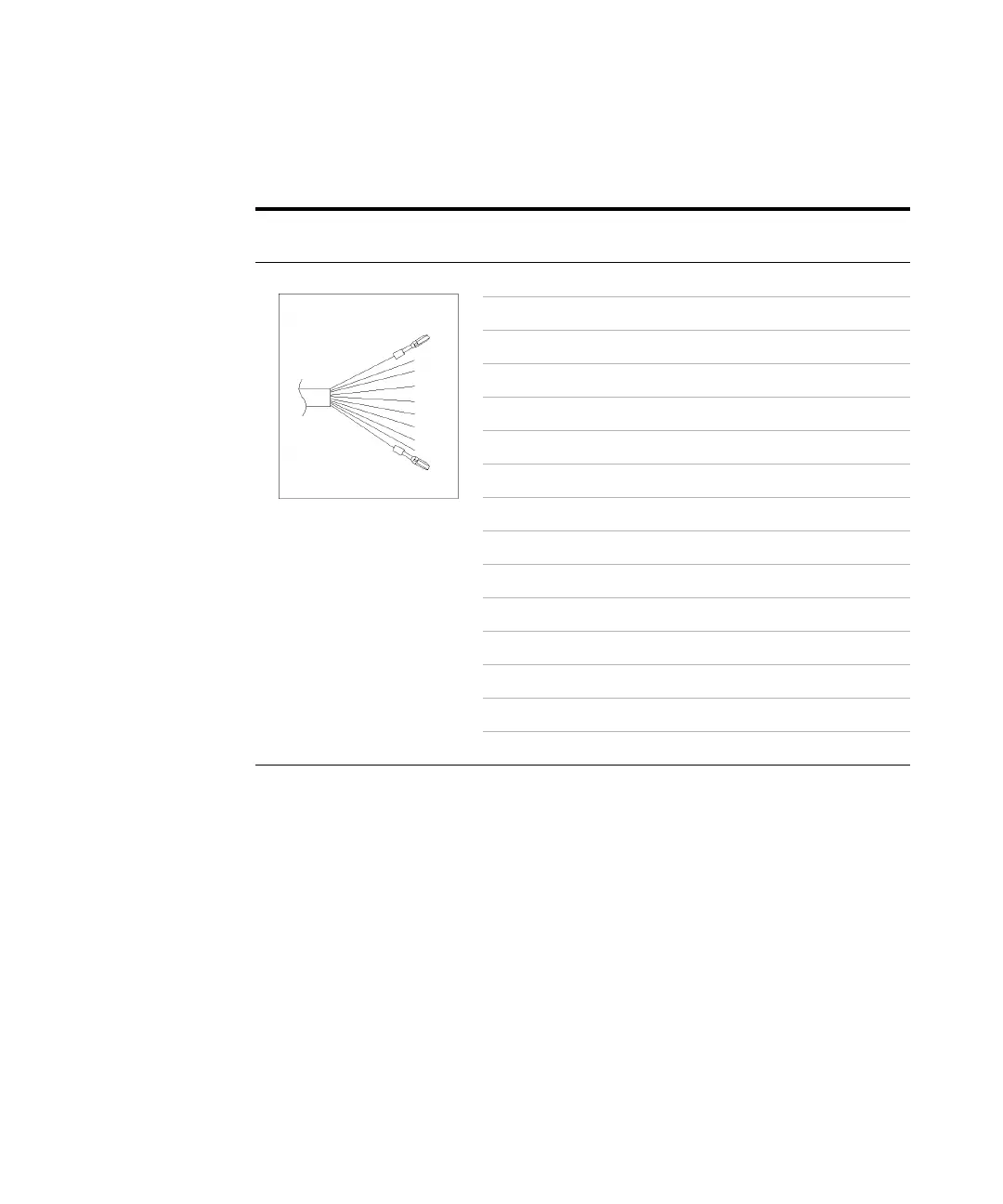

Table 43 Agilent 1100 to General Purpose
Connector
G1351-81600
Wire Color Pin
Agilent 1100
Signal Name BCD Digit
Green 1 BCD 5 20
Violet 2 BCD 7 80
Blue 3 BCD 6 40
Yellow 4 BCD 4 10
Black 5 BCD 0\ 1
Orange 6 BCD 3 8
Red 7 BCD 2 4
Brown 8 BCD 1 2
Gray 9 Digital ground
Gray/Pink 10 BCD 11 100
Red/Blue 11 BCD 10 200
White/Green 12 BCD 9 400
Brown/Green 13 BCD 8 800
14 n/c
15 n/c
