1100 Series Nano Pump Service Manual 199
Introduction to the Nano Pump 5
.

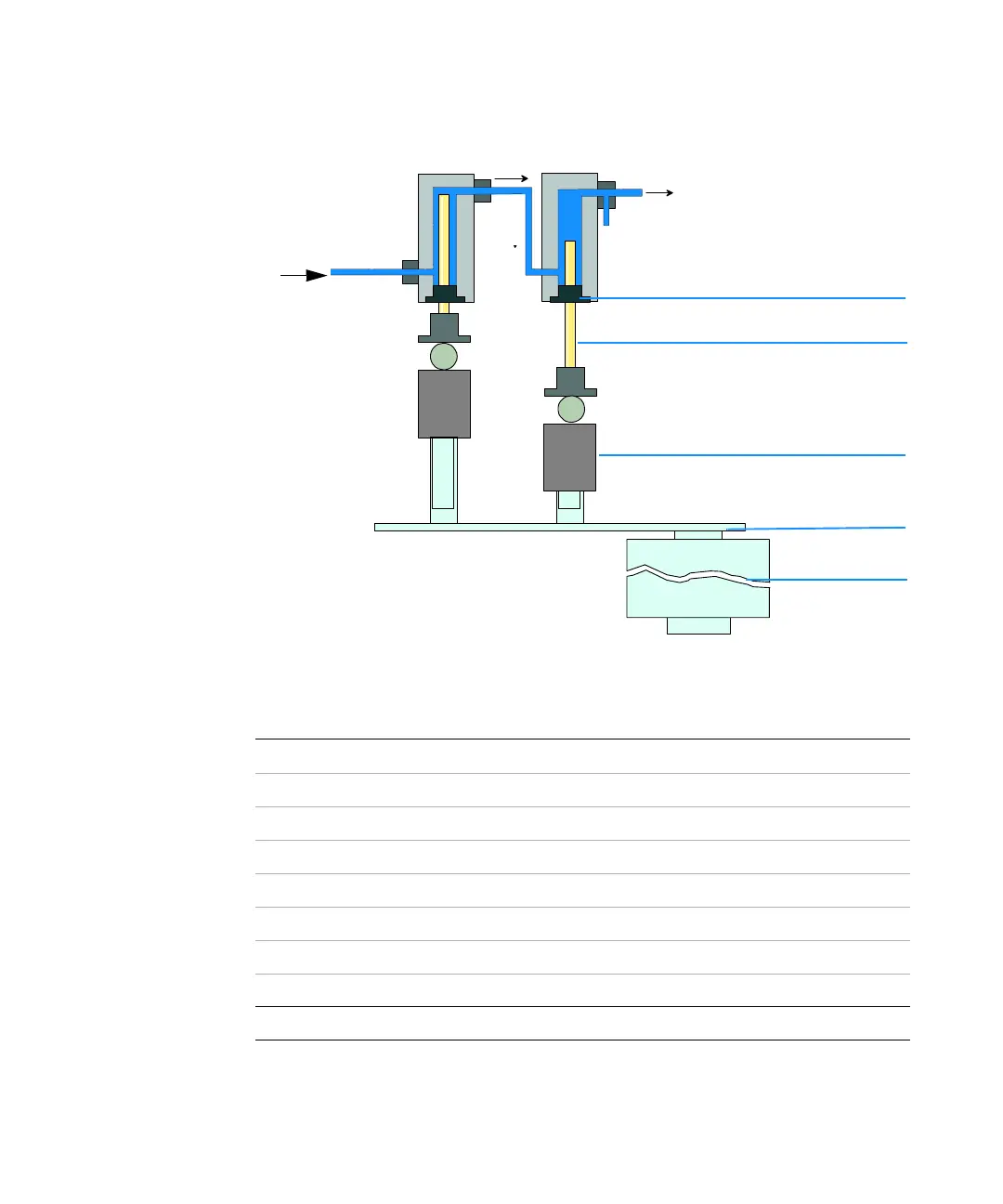

Figure 39 Operating Principle of the pump head
Table 47 Nano Pump Details
Materials in contact with mobile phase
Pump head SST, gold, sapphire, ceramic
Active Inlet Valve SST, gold, sapphire, ruby, ceramic, PTFE
Outlet Valve SST, gold, sapphire, ruby, tantalum
Adapter SST, gold
EMPV SST, ruby, sapphire, PEEK
Flow Sensor SST
Damping Unit Gold, SST
Capillaries Fused Silica
From
solvent
bottle
Inlet
valve
Outlet
valve
To mix in g
chamber
Seal
Piston
Ball screw driv
Motor with encod
Gear
