1100 Series Nano Pump Service Manual 11
Installing the Pump 1

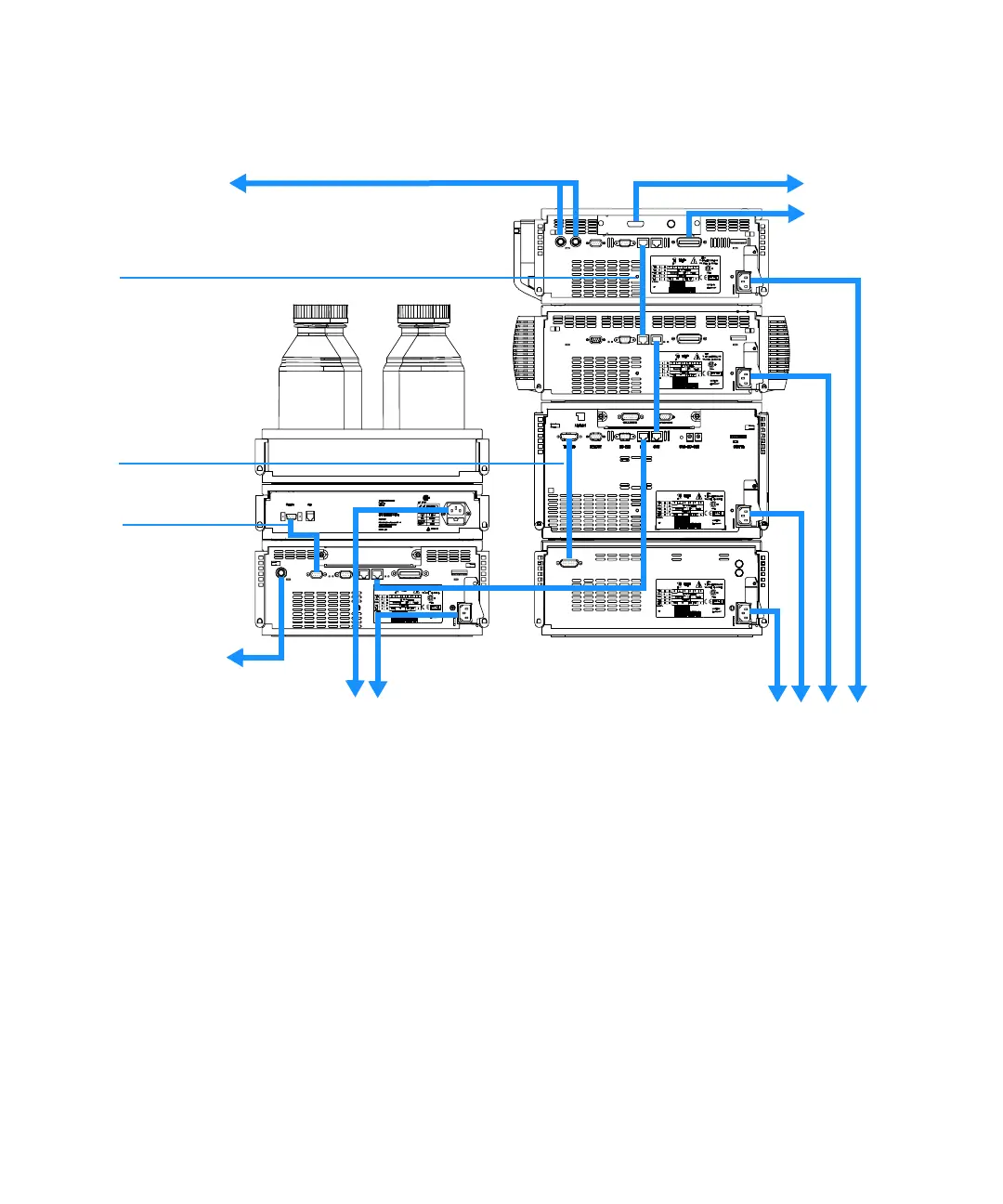

Figure 4 Recommended stack configuration (rear view)
GPIB or LAN to
LC
ChemStation
Analog signal
to recorder
AC power
Remote
cable
CAN bus cable
Autosampler -
Thermostat cable
AC power
Analog signal
to recorder
