1100 Series Nano Pump Service Manual 239
Control Module Screens for the Nano Pump 6

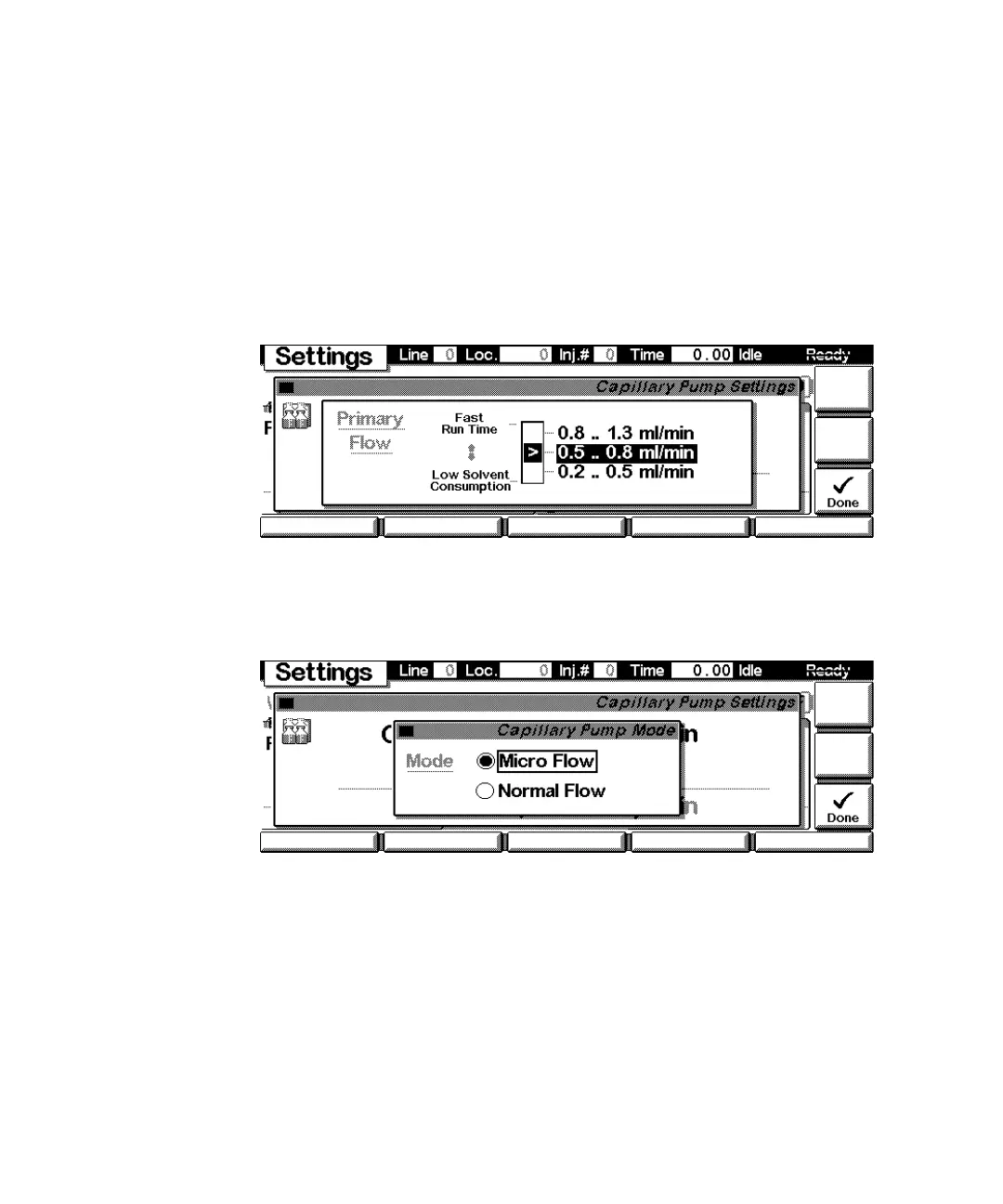

Select Primary Flow to choose one of the three possible ranges for the primary
flow. Changes must be activated with F6 (Done).
Select Mode to toggle between ‘Micro Flow’ and ‘Normal Flow’. Changes must be
activated with F6 (Done).
Settings -
Timetable
With the F2-key (Timetable) you can list and edit the timetable for the pump.
Press F7-key (Insert) to add entries, F6-key (Delete) to remove or Enter to edit
selected/highlighted entries.
The following screen is only available in ‘Micro Flow’ mode (see below).
