16 1100 Series Nano Pump Service Manual
1 Installing the Pump

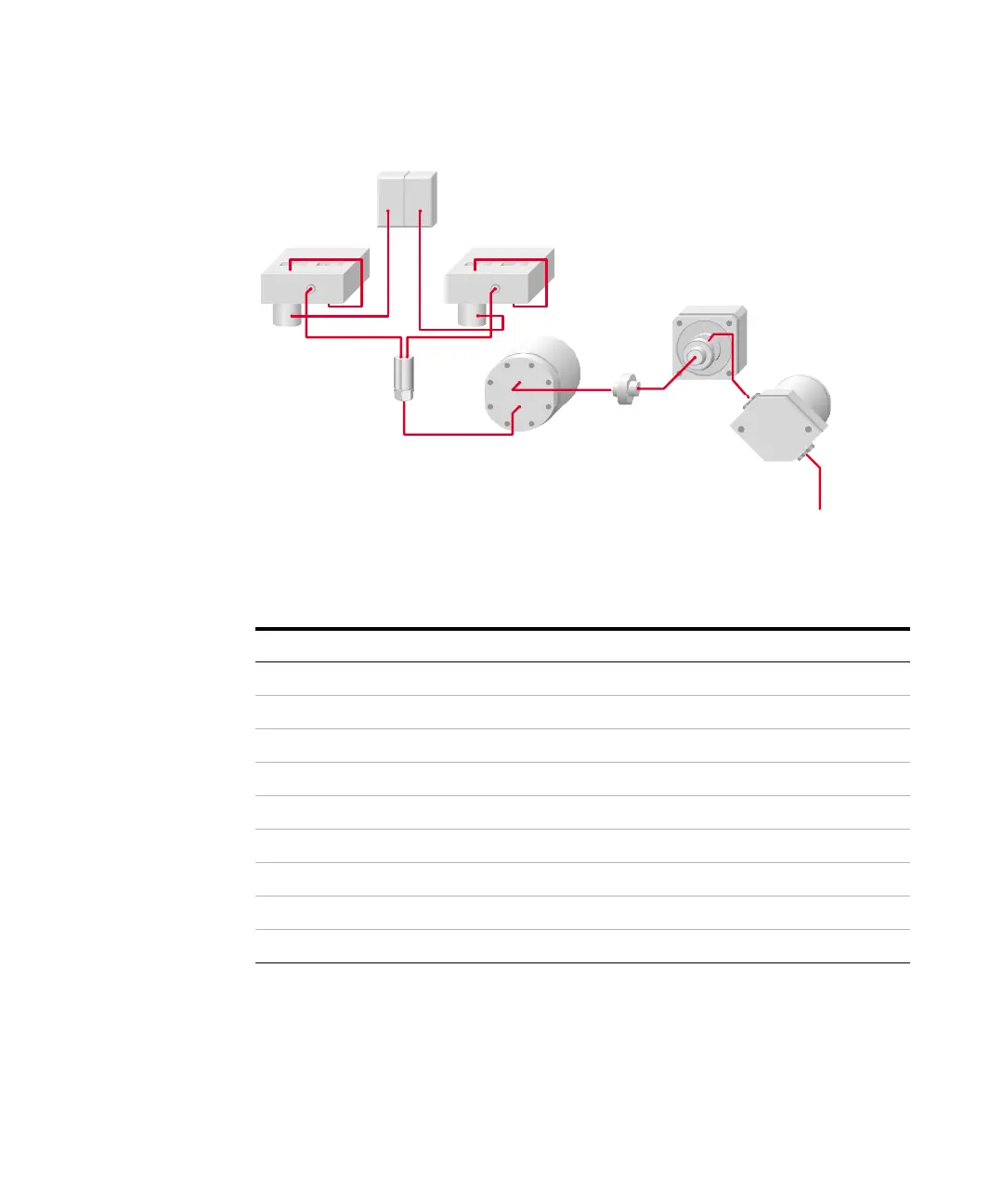

Figure 6 Flow connection of the capillary pump
Table 3 Connecting capillaries for the Nano Pump
Item Part Number
1 G1311-67304
2 G1312-67300
3 G1312-67302
4 G1312-67304
5 01090-87308
6 G1375-87400
7
(220 mm, 25 µm) G1375-87321
8 (350 mm, 25 µm) G1375-87322
8 (550 mm, 25 µm) G1375-87323
1
1
2
2
33
4
5
6
7
8
