Agilent Technologies 1220 Infinity II LC

1220 Infinity II LC System User Manual 281
Maintenance and Repair
11
Autosampler
1

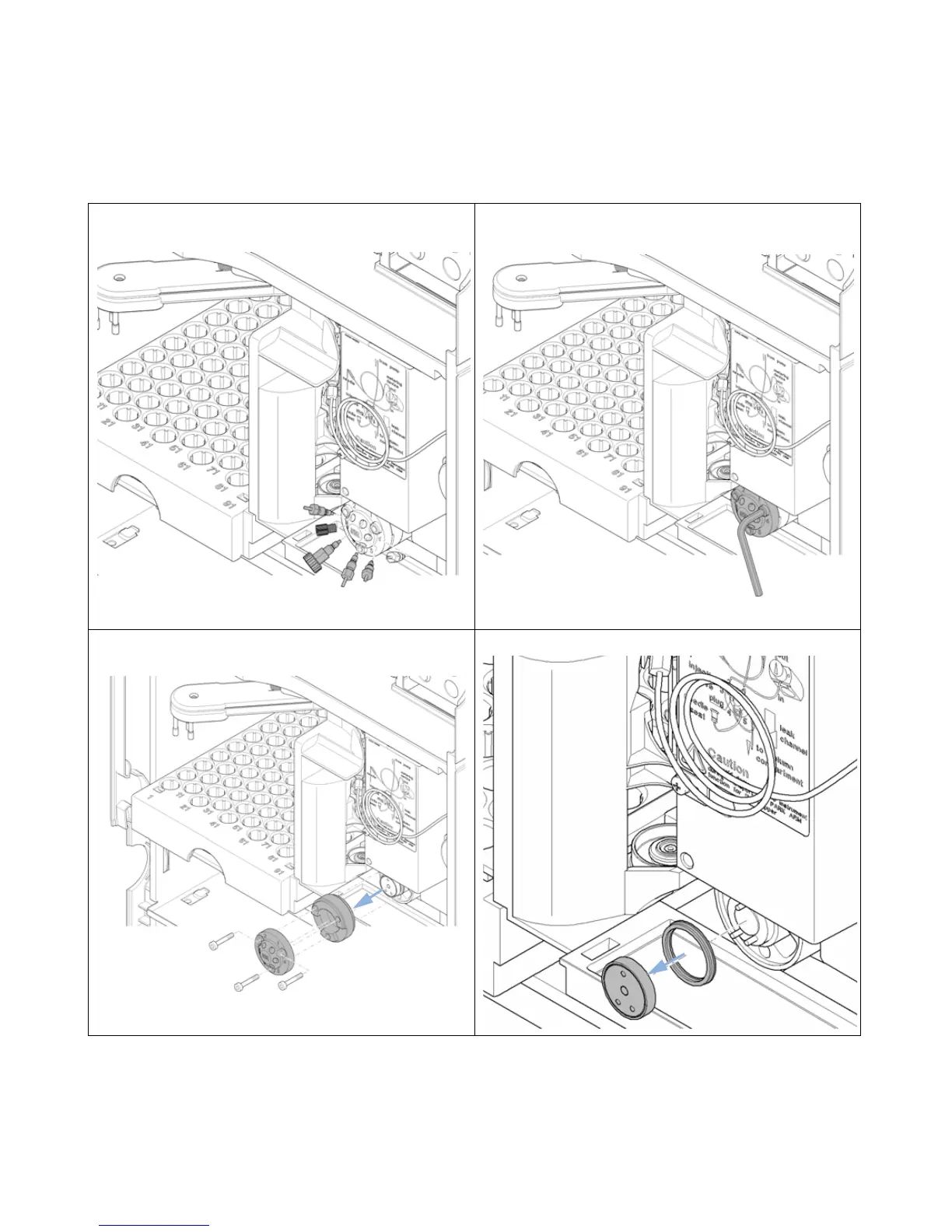

Remove all capillary fittings from the injection-valve
ports.
2 Loosen each fixing bolt two turns at a time. Remove the
bolts from the head.
3 Remove the stator head and stator ring. 4 Remove the rotor seal and isolation seal.
