Maintenance and Repair
Autosampler
5

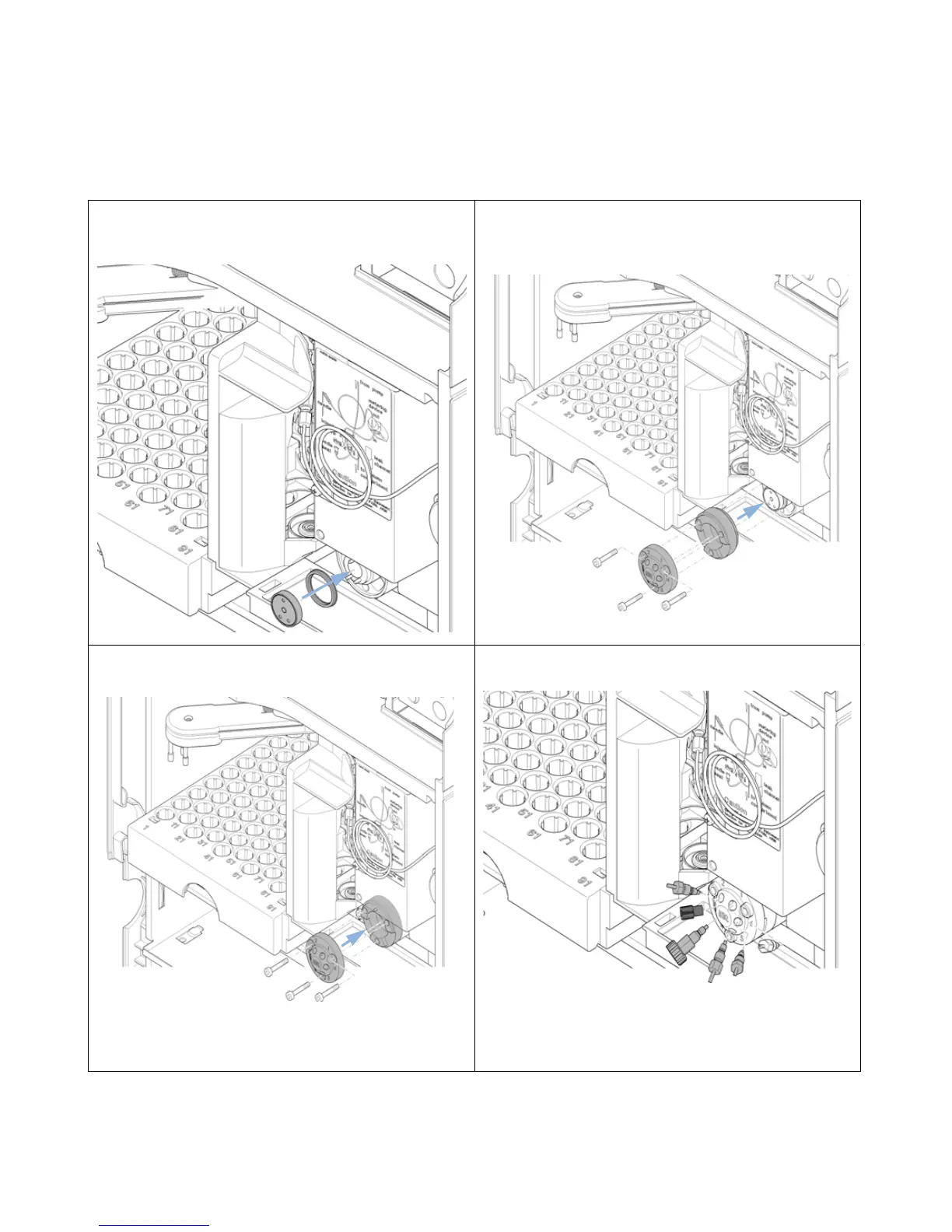

Install the new rotor seal and isolation seal. Ensure the
metal spring inside the isolation seal faces towards the
valve body.
6
Install the stator ring with the short of the two pins
facing towards you at the 12 o’clock position. Ensure the
ring sits flat on the valve body.
7
Install stator head. Tighten the bolts alternately two
turns at a time until the stator head is secure.
8
Reconnect the pump capillaries to the valve ports.
