Agilent Technologies 1220 Infinity II LC User Manual

1220 Infinity II LC System User Manual 329
Parts for Maintenance and Repair
12
1220 Infinity II LC System
Mainboard overview

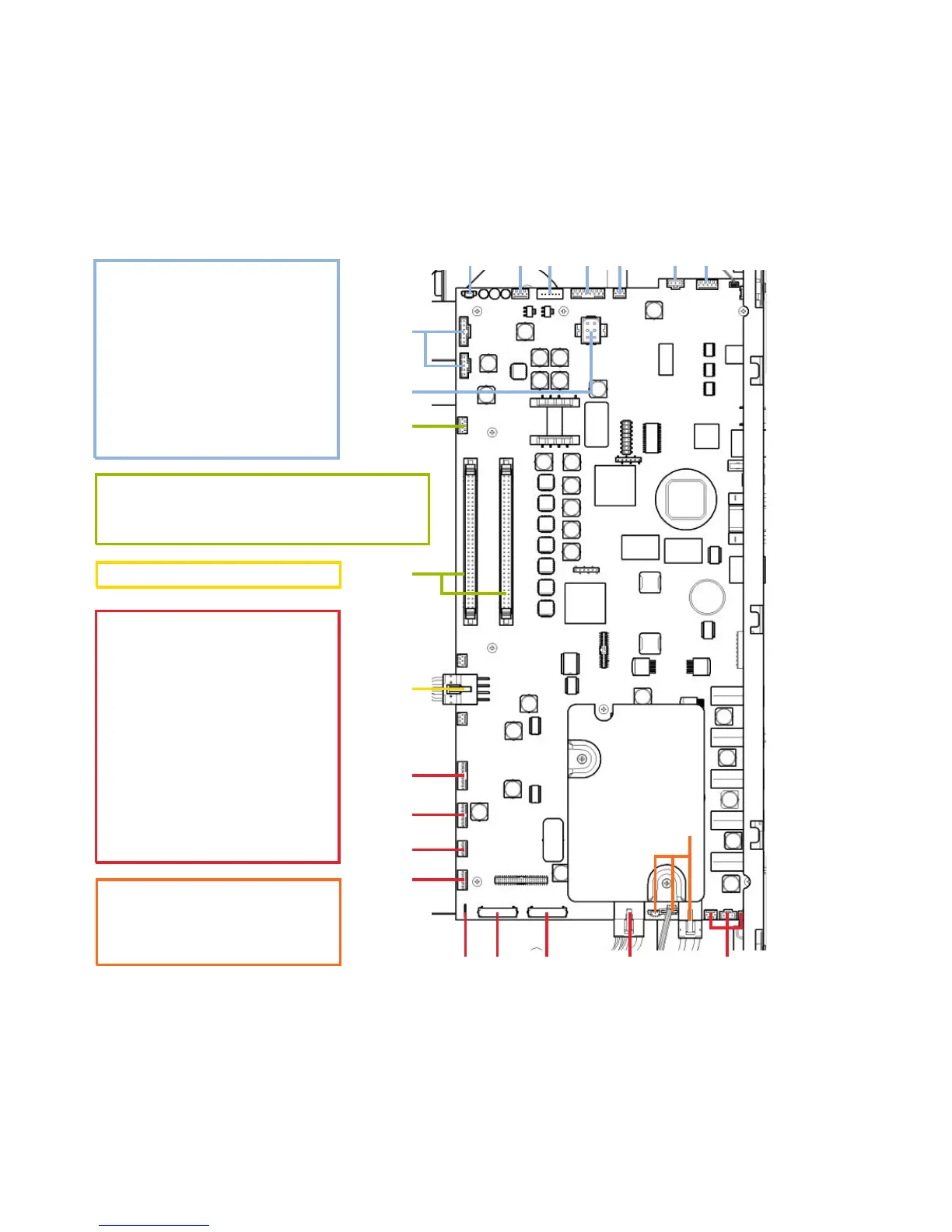

Figure 68 Connectors of the Agilent 1220 Infinity II Instrument Mainboard
Pump module connectors:
1. Instrument Status LED
2. Pressure Sensor
3. Dual Channes Gradient Valve
4. Pump Drive Encoder
5. Pump Fan
6. Solvent Selection Valve (SSV)
7. Active Inlet Valve (not used)
8. Degasser Assembly Connectors
9. Pump Drive
Sampler module connectors:
10. Connector for Manual Injector
11 Connectors for autosampler transport assembly
12. Heater assembly connector
VWD connectors:
13. Grating motor
14. Filter motor
15. Grating pos. sensor
16. Filter pos. sensor
17. Grounding connector lamp
18. Sampler diode
19. Reference diode
21. VWD fan
20. D2 lamp
23. VWD heater
22. VWD heater sensor
Power supply sensors
24. Power fail connector
25. Power switch control
26. Power and ground
12
3
4
5
6
7
8
9
10
11
13
14
15
16
17
18 19 20
21, 22, 23
24, 25, 26
12
