Agilent Technologies 1220 Infinity II LC User Manual

42 1220 Infinity II LC System User Manual
3 Installation
Installing the Hardware
Identifying the connections of the 1220 Infinity II LC
Agilent 1220 Infinity II LC with VWD

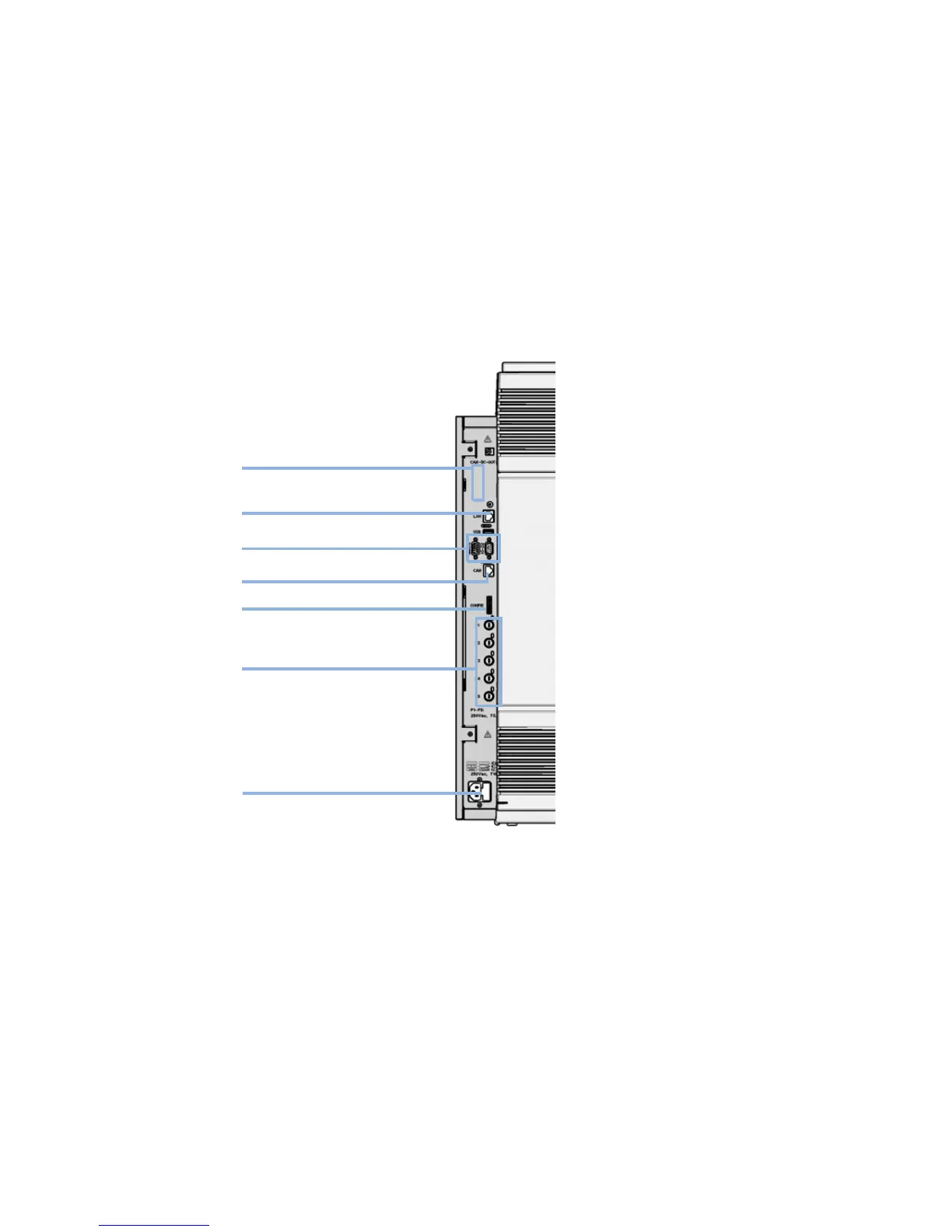

Figure 6 on page 42 shows an overview of the possible connections on the
1220 Infinity II LC instrument with VWD.
Figure 6 Connections of the Agilent 1220 Infinity II LC with VWD
RS232 serial and remote
connectors
MAC address label
LAN connector
CAN port
Configuration dip switches
(for boot mode selection)
Fuses
Power plug
