Maintenance and Repair
Autosampler
Exchanging the Gripper Arm
When Defective gripper arm
Tools required Description
Straightened paper clip.
Parts required # p/n Description
1 G1313-60010 Gripper assembly
Preparations • Select Start in the Tools function in the LMD software Change Gripper.
• Turn off the power to the instrument.
• Remove the upper front cover.
1

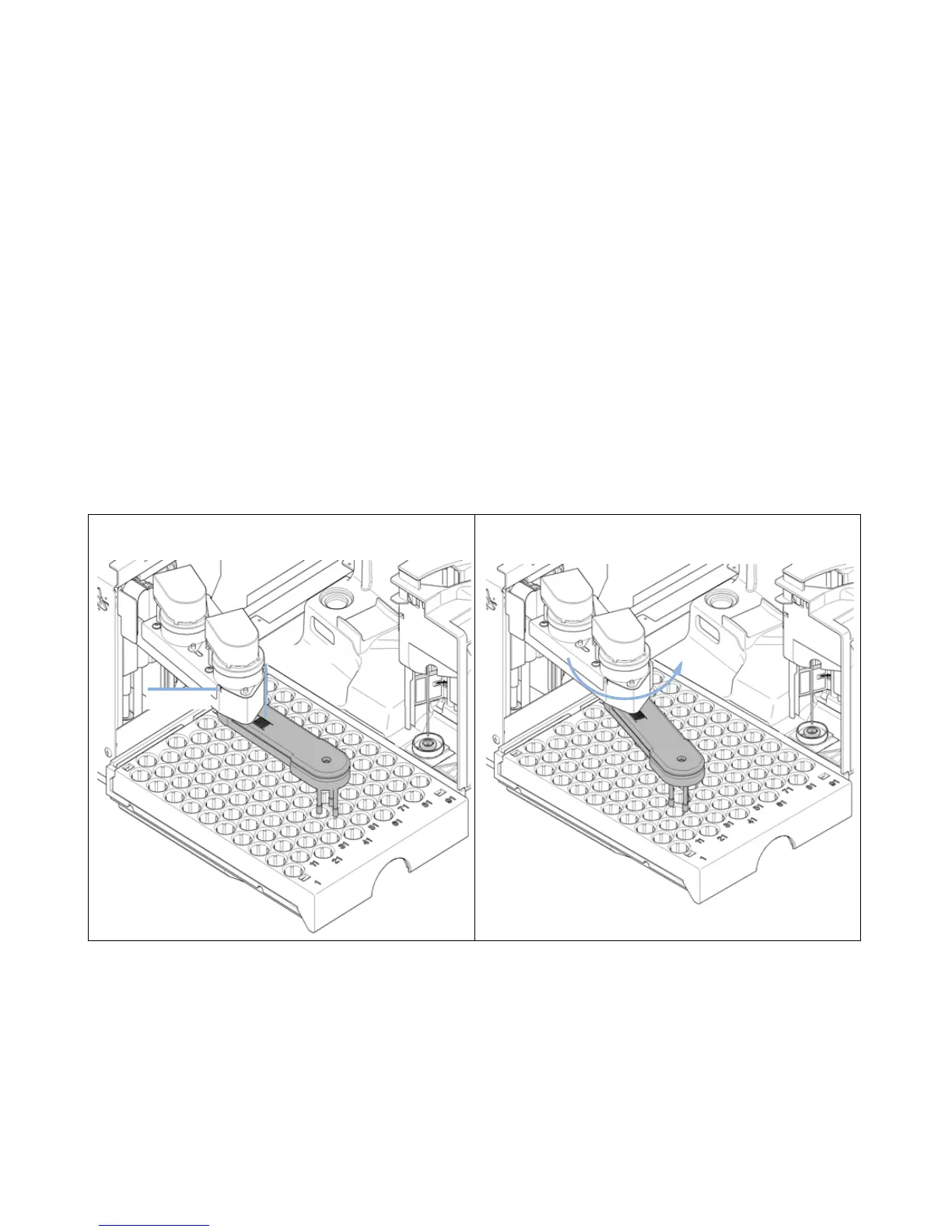

Identify the slit below the gripper motor and the gripper
arm release button.
2
Rotate the arm approximately 2.5 cm (1 inch) to the left
and insert the straightened paper clip into the slit.
