Inlets and valves

6850

Released: April 2004 6850 Series Gas Chromatograph Service Procedures 109

6. Check all connections on the sampling head

for leaks. If necessary, tighten them again by

hand.

Replacing the Teflon ferrule

1. Unscrew the guide cap from the septumless

head and remove the Teflon ferrule.

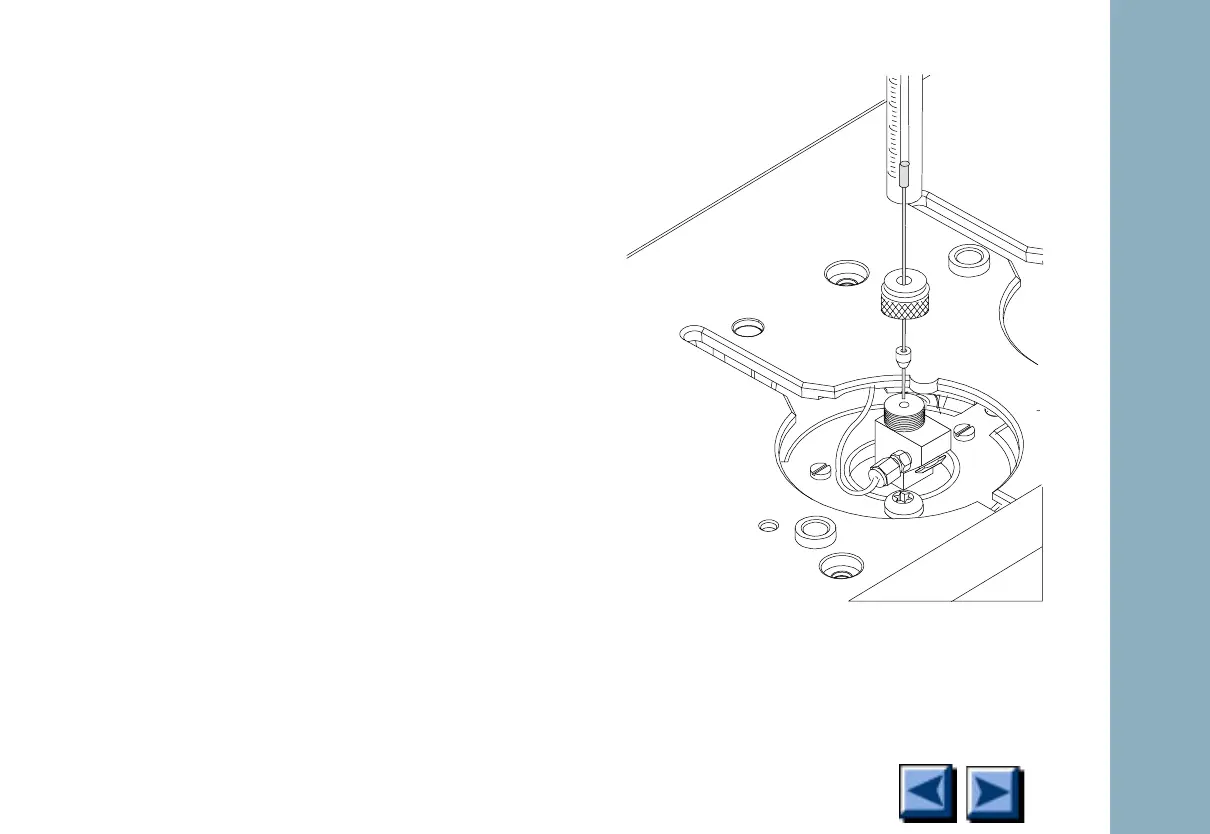

Figure 1-40. Installing a Teflon ferrule
