21. OXE
21.1 Software overview
OXE call server
Oxe is still needed in Opentouch 1.0 in order to have external access on Opentouch users. Only Oxe release
10 can be linked with ICE through a SIP abcf trunk. Oxe can be embedded onto the same server in a virtual
machine as the OpenTouch “business edition mode” or can be installed on his own server “add-on mode”.
21.2 Access to OXE configuration

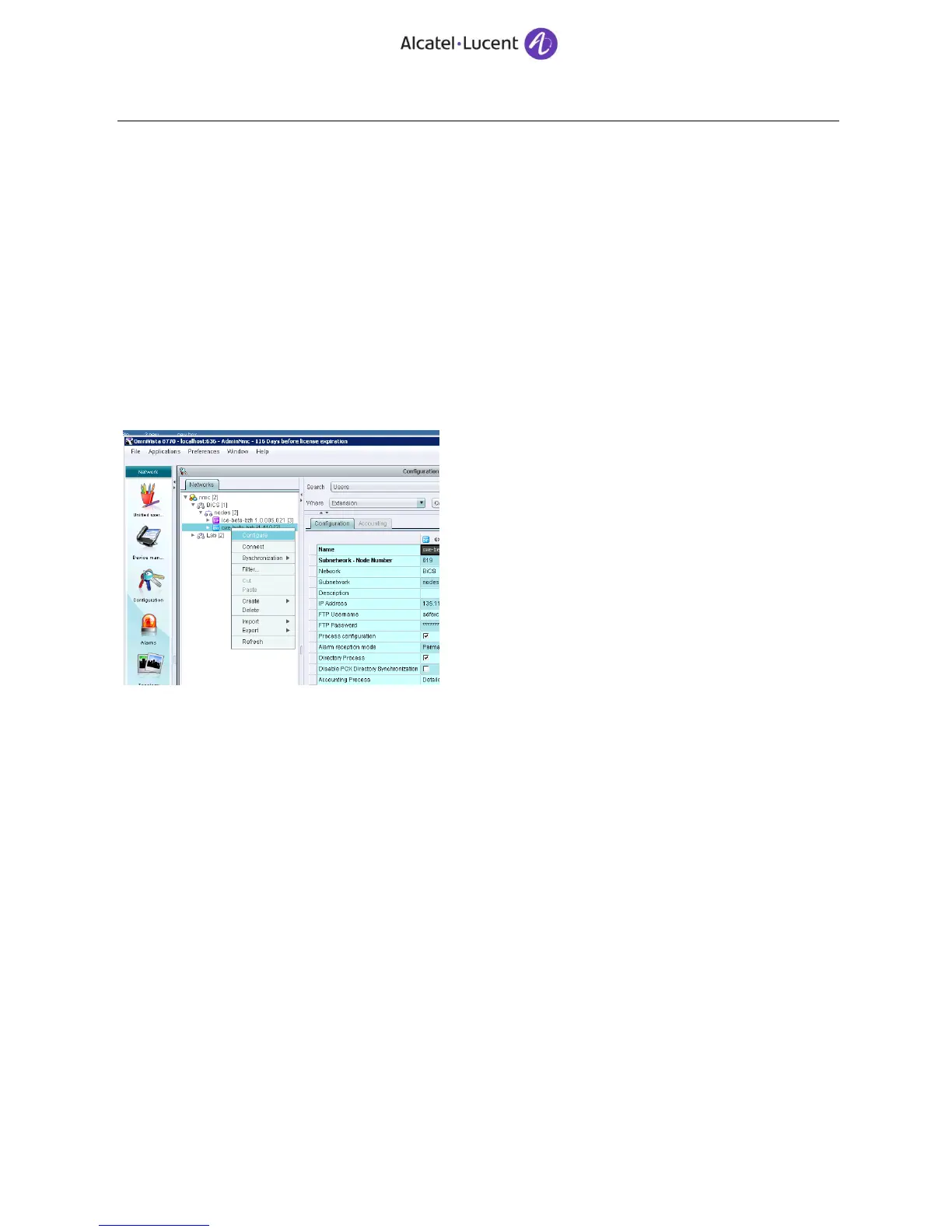

From 8770
Or by direct Ip connection and mgr tool
21.3 Configuration
See installation guide for sip trunk and external gateway settings
21.3.1 Example
1. Select Trunk Groups/Create
┌─Create: Trunk Groups─────────────────┐
│ │
│ Node Number (reserved) : 101 │
│ Trunk Group ID : <SIP_TG_ID> │
│ │
│ Trunk Group Type + T2 │
│ Trunk Group Name : SIP │
│ Remote Network : <RN_ID> │
│ Node number : <Node_ID> │
│ Q931 Signal variant + ABC-F │
│ T2 Specification + SIP │
└──────────────────────────────────────┘
• Enter a Trunk group ID <SIP_TG_ID> to identify the trunk group. It must be unique on the OXE.
• Enter a remote network id: <RN_ID>. The remote network ID must be different from the OXE network
number.
• Enter the OXE node number <Node_ID>
• Set the Q931 Signal Variant parameter to “ABC-F” and the T2 specification parameter to “SIP”
• Validate the trunk group creation.
